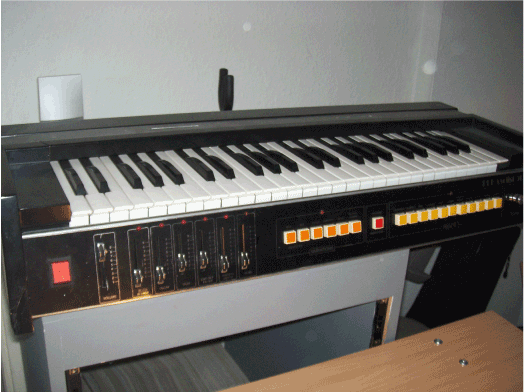

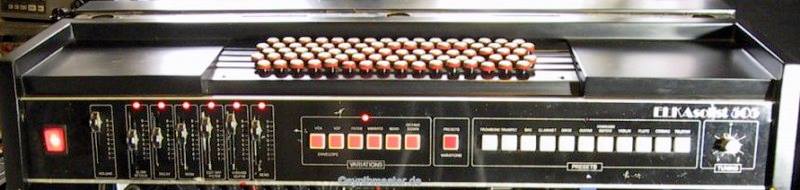

Elka | Soloist 505


The Soloist 505 is a very simple monophonic synth. Its look reminds one of a Roland SH-1000, but with its controls on the front. To make the organ-look complete it has a really ugly sheet-music stand. The sound is very clear and clean like many Italian cousins (Siel). There is a preset section but the waveforms can also be modified in 'free' mode. Don't expect any huge sound experiences out of this heavy thing. But the keyboard is good and there are some presets such as the sax and trombone which have some power worth exploring. It's cute and slightly rare - but don't pay any big money for it. No MIDI or CV here.

The unit features 11 Presets like Brass, Oboe, Trumpet, Hawaiian Guitar, Cosmic, Flute, and more. A variation mode makes the instrument more versatile by giving some user control over the attack, filter, and a few other parameters.

A feature of the Soloist 505 is that it has the famous Moog Ladder Filter onboard. Manufacturers installed the components to make the Ladder Filter before Moog Music imposed a patent on it's use in non Moog instruments.

ModelSoloist 505
Engine TypeAnalog
Voices (max)1
Engine Detailed1 VCO
Filter (VCF)Slow attack, decay, wow
Key typeKeys
Produced:1978 - 1980
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
