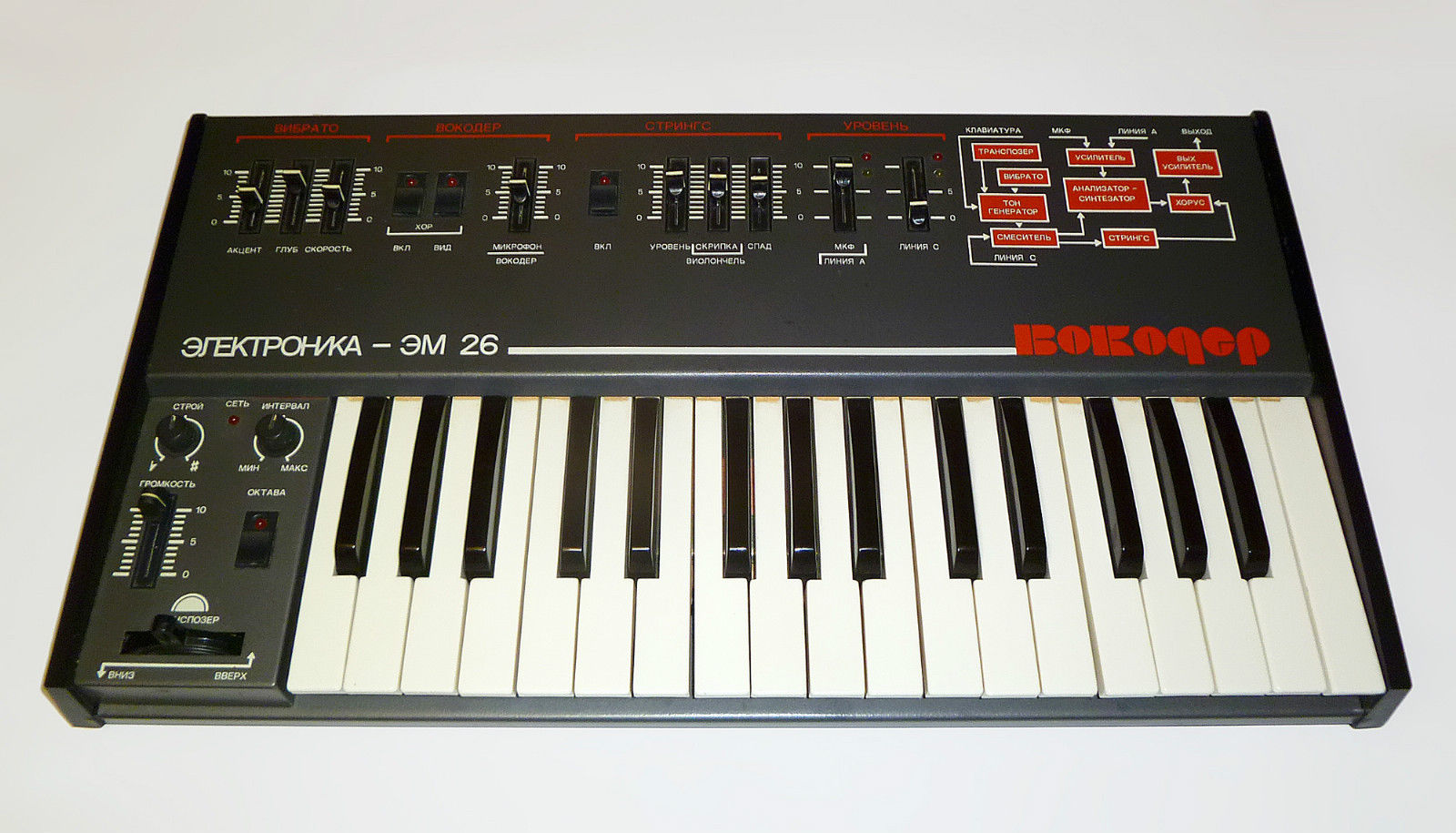

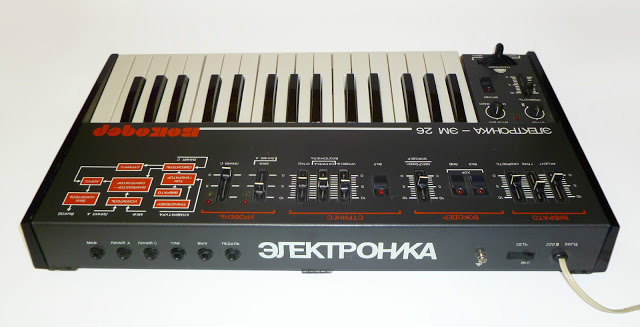

Description	Electronika EM-26 is soviet analog vocoder synthesizer that was manufactured in early 1990`s in the USSR. It is intended for synthesizing the human voice or external signals, It has an internal strings ton-generator, analyzer-synthesizer, modulator and vocoder effects. The unit is one of the of two vocoder models ever produced in the USSR, Due to it`s architecture and parts the instrument has a unique sound and can produce a variety of analog vocoder effects! Control panel include 4 sections: VIBRATO, VOCODER, STRINGS and LEVEL, also panel near left of the keyb for pitch and other control. VIBRATO section has sliders - accent, depth and rate VOCODER - chorus knobs (on, mode), mic/vocoder level STRINGS - on/off, level, violin/cello, sustain LEVEL - mic, line A, line C Keyboard PANEL: main level, pitch, interval, octave, pitch bend CONNECTION (1/4 jack): mic in, line A,C, phones, output, pedal, power.
Brand	Elektronika
Model	EM-26
Device	Synth
Type	Keys
Engine Type	Analog
Engine	VCO
Voices (max)	2
LFO	1, vibrato
Engine Detailed	VCO for sting like sound with Vocoder
Envelope (VCA)	Release
Memory	1
Keys	32
Key type	Keys
Velocity	N
Aftertouch	N
Audio	Stereo O, Mic in
Produced:	1992 - 1992

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
