Elektronika | EM-05

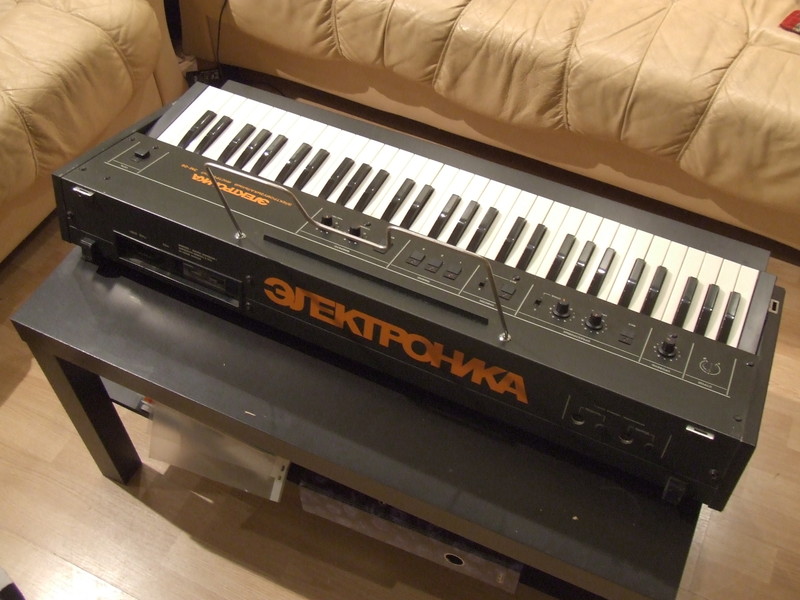

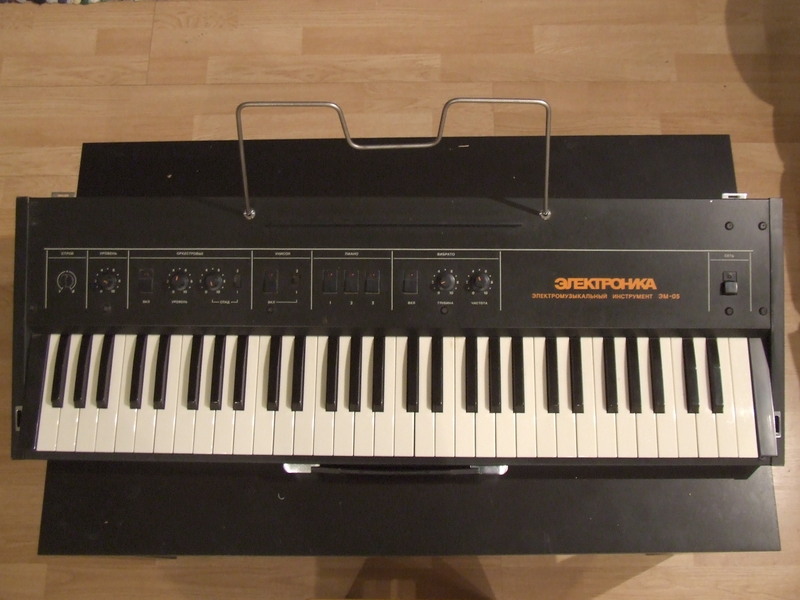

|Electronica EM-05 is a polyphonic strings/piano EMI. It has 2 sound types: orchestral and piano. Keyboard's range is 5 octaves. The instrument has a black metal case. Controls on the front desk change sounding during playing. There is a possibility to connect an external sustain's pedal.
Pitch, level, orchestral (ON, level, decay 2-3), unison (ON 1-2), piano (1/2/3), vibrato (ON. depth, frequency).
Back desk: connector (220V), output, input for pedal.
|Memory||4 ROM, 3 piano, 1 Strings|
|Produced:||1985 - 1985|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
