Elektronika | EM-04 |
|

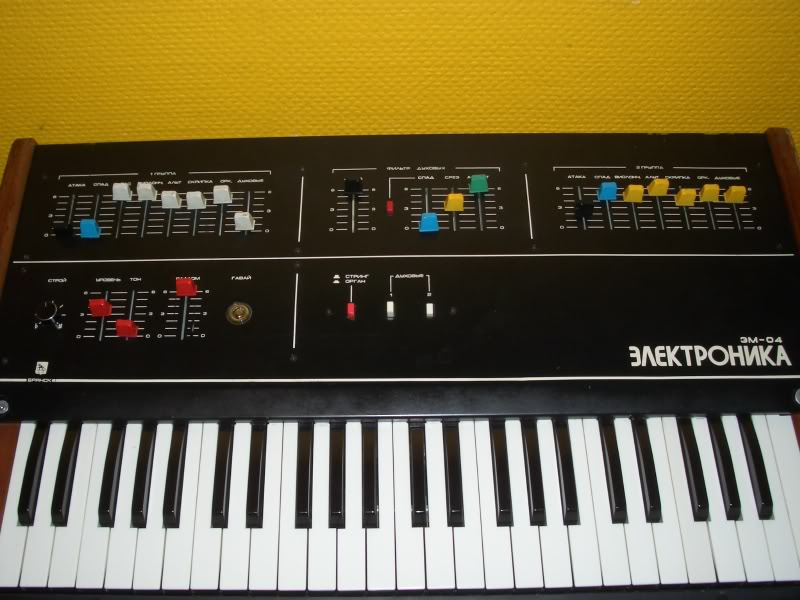

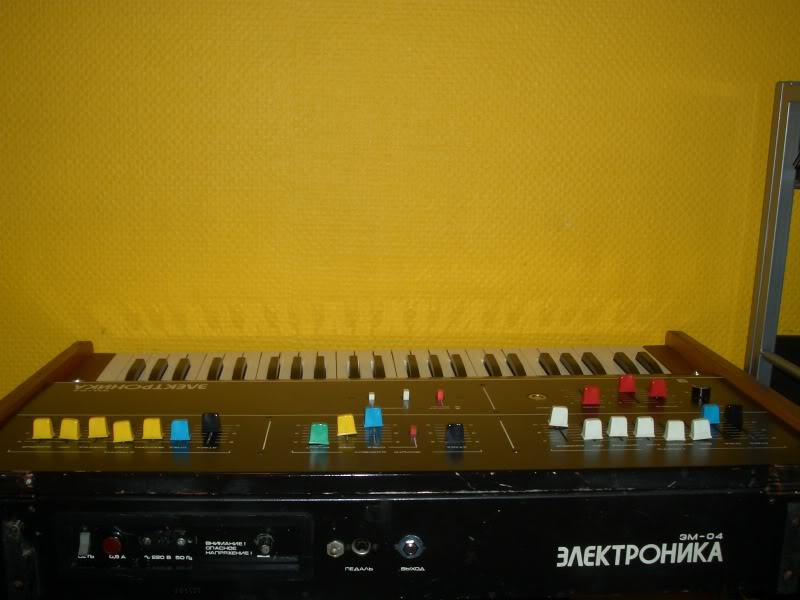

Description | Elektronika EM-04. There is a one master oscillator in the instrument. Due to this oscillator a possibility of instrument's detuning in the process of operation is eliminated. This generator shifts a pitch of the instrument on an octave, "slalom-effect" and refines the tuning +/- 1/4. Because of split of the manual into 2 sections, the volume of each part may be adjusted. Specifications: Total audible range - 7 1/12 octaves Keyboard's volume - 4 1/12 octaves Mains voltage - 220V +/-10% Dimensions - 790x490x155 cm Dimensions, 890x355x102 mm (31" x 19" x 4") Weight, 20 kg (approx. 44 Pounds) |
| Brand | Elektronika |
| Model | EM-04 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 4 |
| Oscillators | 1 |
| Engine Detailed | 1 VCO using Split and Divide to generate polyphony |
| Filter (VCF) | 1 |
| Envelope (VCA) | AD |
| Keys | 49 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| Audio | Mono out |
| Produced: | 1985 - 1985 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
