Elektron | Analog Keys |
|

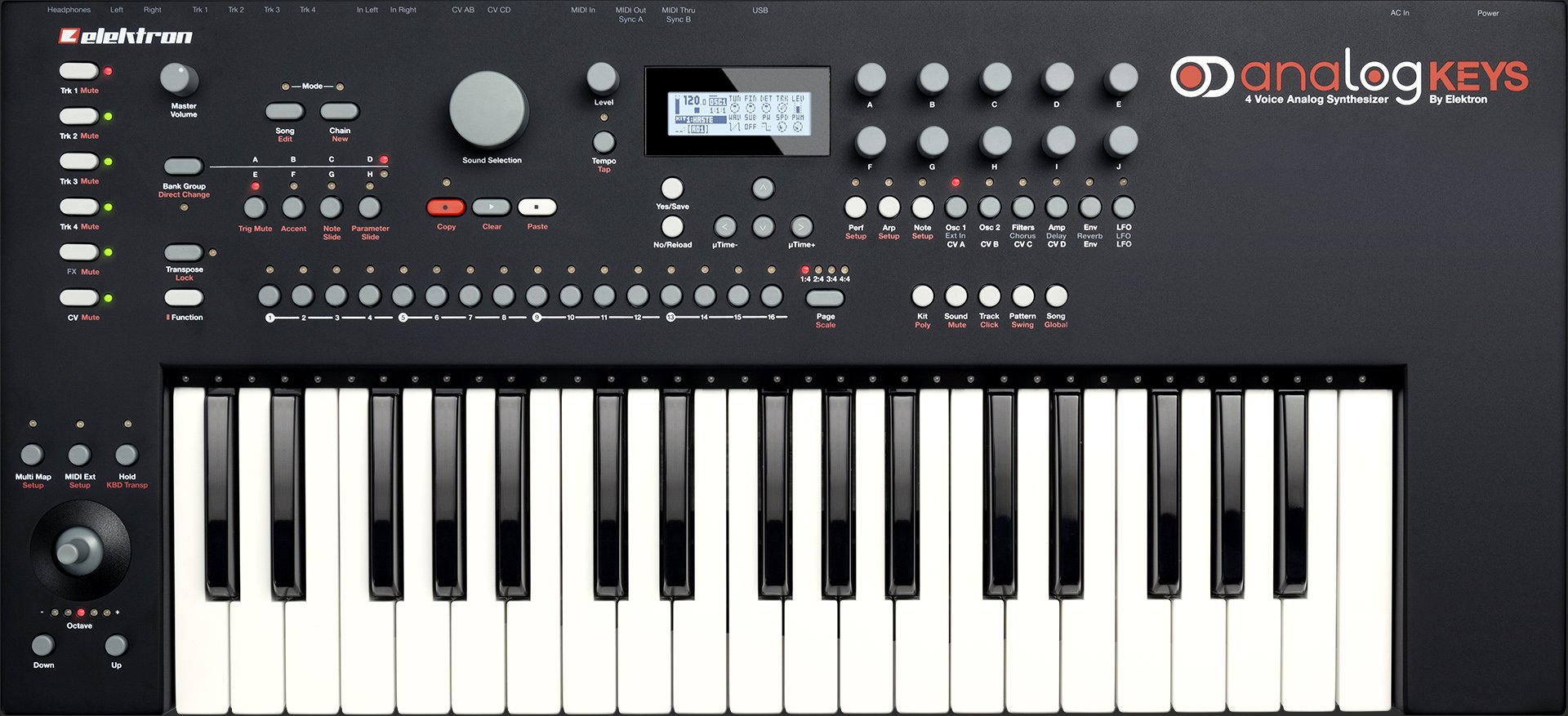

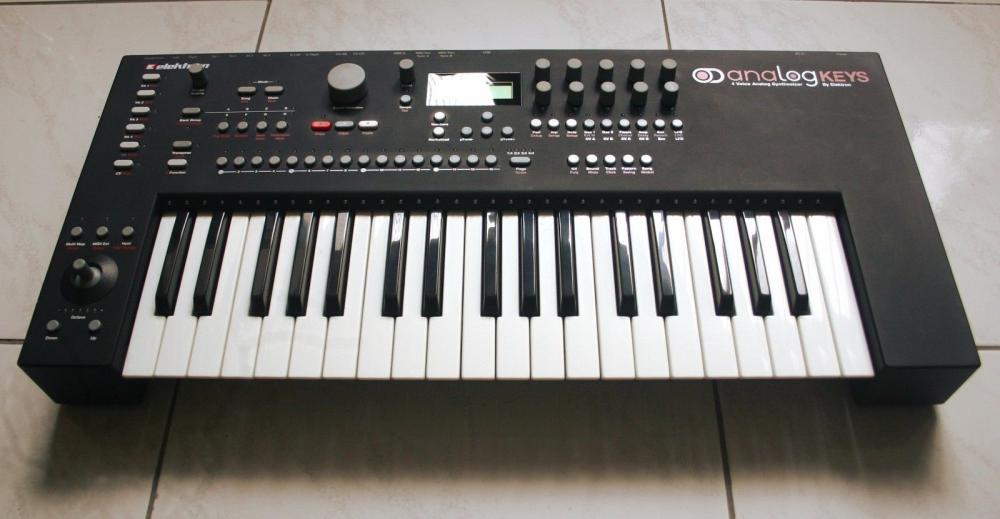

Description | Analog Keys is a digitally controlled analog synthesizer featuring, among many things, the renowned Elektron step sequencer. The innovative combination of modern technology and tried and trusted ways of sound generation will let you experience the analog realm in its entirety. Time to perform The Analog Keys cries out to be played. It is a mighty analog synthesizer capable of incredibly expressive sounds. It is built for the stage. And you can make it the heart of your whole setup. Your analog voice The Analog Keys represents the height of our synth expertise. Its vibrant, deep analog tones put it in a class of its own. The rich feature set gives you complete creative control. Your sound is in here: find it, shape it and play it. Explore the keys The keyboard is beautifully responsive. Next to it, you’ll find a fully programmable joystick for tweaks on the fly. The integrated sequencer adds structure when needed – providing an extra dimension of joy for the creative musician. Center of it all Simply press a button to make the Analog Keys double as the controller centerpiece for your whole rig. Use it to play both MIDI and CV equipped synths. Complete the circle by routing other instruments through the stellar effects and analog filters. |
| Brand | Elektron |
| Model | Analog Keys |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | DCO |
| Voices (max) | 4 |
| Multitimbral | 4 |
| Oscillators | 4 |
| Sub | 1 |
| LFO | 4 Envelope, Saw Up, Saw Down |
| Engine Detailed | 2 Pulse, Pulse Variable, Saw Down, Saw Up, Sub Oscillator, Triangle |
| Filter (VCF) | 2 12dB Slope (2-pole), 24dB Slope (4-pole), Band Pass, Band Stop, High Pass, Low Pass, Resonance |
| Envelope (VCA) | 6x ADSR |
| FX | Chorus, Delay, Reverb |
| Memory | ROM-RAM/(multi)patches: 128 each |
| Sequencer | 4 synth tracks 1 FX track 1 CV/Gate track Up to 64 steps per pattern Individual track lengths |
| Arpeggiator | 6 |
| Keys | 37 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Audio | Stereo I-O |
| Midi | I-O-T, USB |

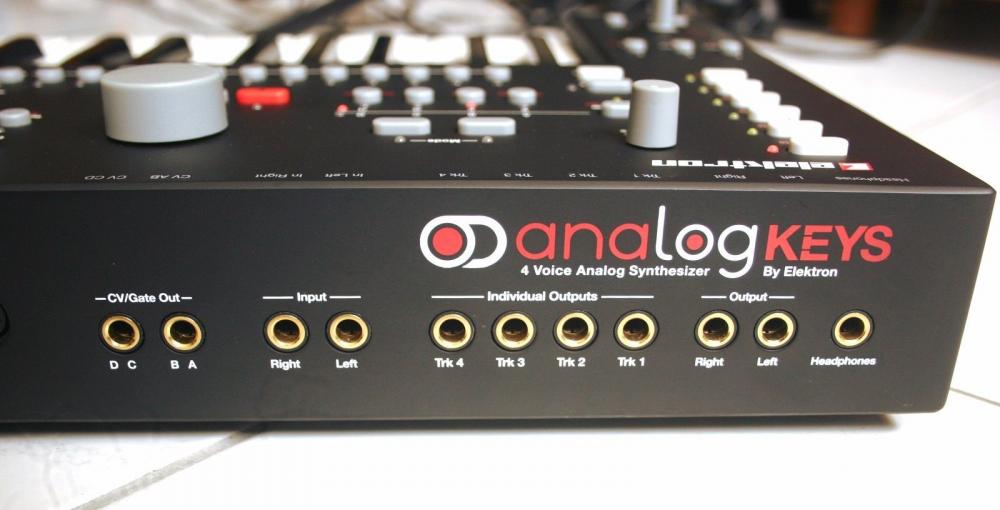

| CV-gate | CV/GATE Out |
| Produced: | 2014 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
