Electronic Music Works (EMW) | WCS-1 |

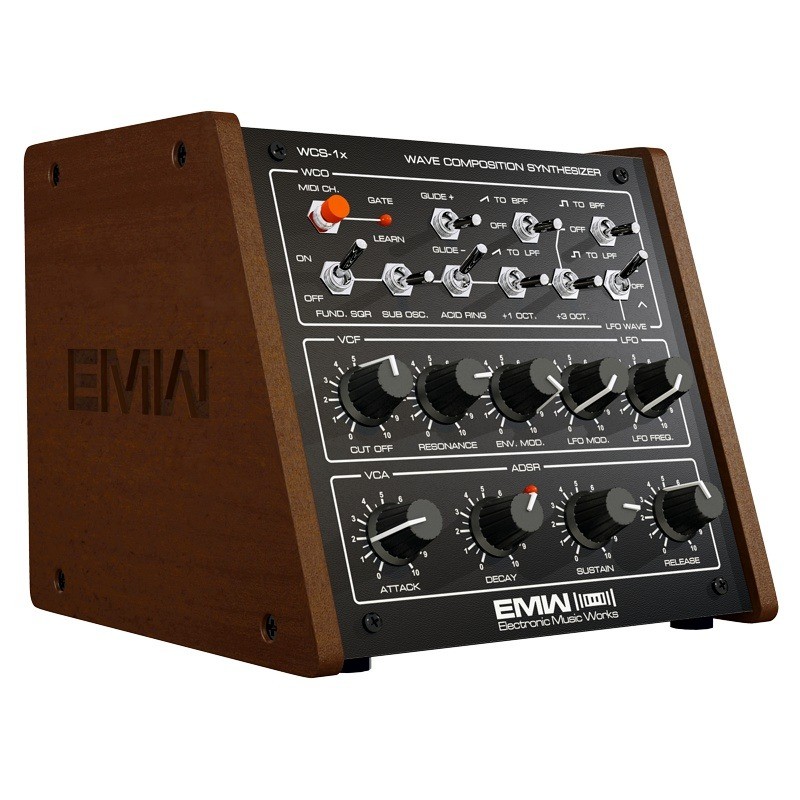

/WCS-1/EMW-WCS-1x-1.jpg)

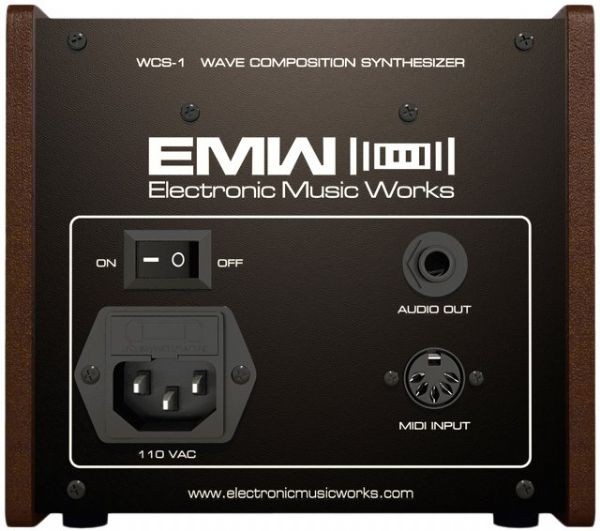

/WCS-1/EMW-WCS-1x-2.jpg)

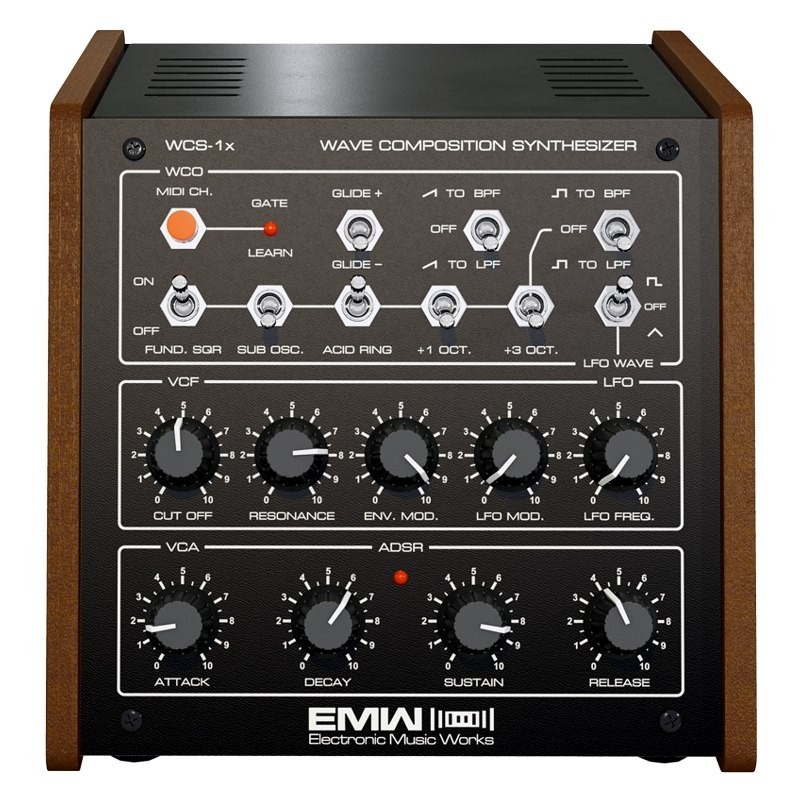

/WCS-1/EMW-WCS-1x-3.jpg)
|
Description | The WCS-1 is a MIDI synthesizer module that utilizes a digital oscillator followed by all discrete analog circuits in order to produce unusual and very "fat" sounds. The exclusive wave addition resource together with a dual input VCF and a lightning fast VCA ensures its powerful sound generation capabilites, being an ideal instrument for any electronic music production. A large number of waveform combinations can be generated by the WCS-1. It contains most the classic waveshapes like Square, Saw, and Triangle, along with many other combination waves, making this synth a powerful timbre palette. The resonant filter of the WCS-1 increases the final sound volume and when it is set to values higher than 80%, a filter overload is expected to occur and consequently cause distortion. For certain musical styles, this type of filter overload may be welcome because it brings a more aggressive characteristic to the sound. |
| Brand | Electronic Music Works (EMW) |
| Model | WCS-1 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | DCO |
| Voices (max) | 1 |
| Oscillators | 1 |
| LFO | 1 Square, Triangle |
| Engine Detailed | 1 Digital OSC, Saw Up, Square, Sub Oscillator, Triangle |
| Filter (VCF) | 1 18dB Slope, Band Pass, Low Pass, Resonance |
| Envelope (VCA) | ADSR |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Audio | Mono out |
| Midi | I |
| Produced: | 2012 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
