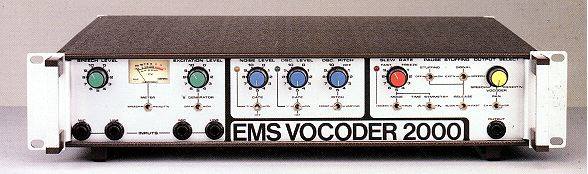

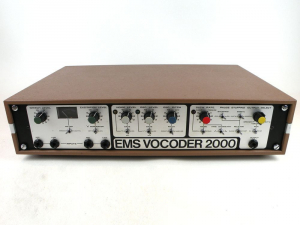

|British synth maker EMS are known not only for their classic VCS3, but also for their unique retro vocoders. Designed by Tim Orr, the EMS Vocoder 2000 is an excellent voice synthesizer comparable to the Roland SVC-350. It has been around since the late seventies, and is still available to this day. The Vocoder 2000 offered 16-channels of vocoding with filters, mic/line inputs, oscillator and noise sources, voiced/unvoiced detector, and slew/freeze control.
|Brand||Electronic Music Studios (EMS)|
|Engine Detailed||16-band vocoder. White noise generator and pulse oscillator (0-1 khz). Both may be gated by the voiced/unvoiced detector. Oscillator frequency fixed or amplitude modulated.|
|Filter (VCF)||FILTERBANK: 16 Filters - 14 x 6th order active bandpass. 1 X lowpass, 1 x highpass. 16 Envelope followers and modulators.|
|Controllers||Slew / Freeze|
|Audio||1/4 inch input for Speech and Excitation sound sources|
Produced:||1975 - 1979
||Y: Yes, N: No, N/A: Not Applicable
||Voltage Controlled Oscillator
||Digital Controlled Oscillator
||Low Frequency Oscillator
||Voltage Controlled Filter
||Voltage Controlled Amplifier
||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.
||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
