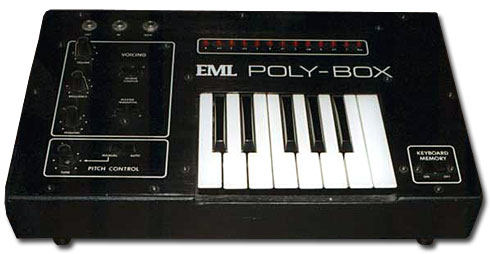

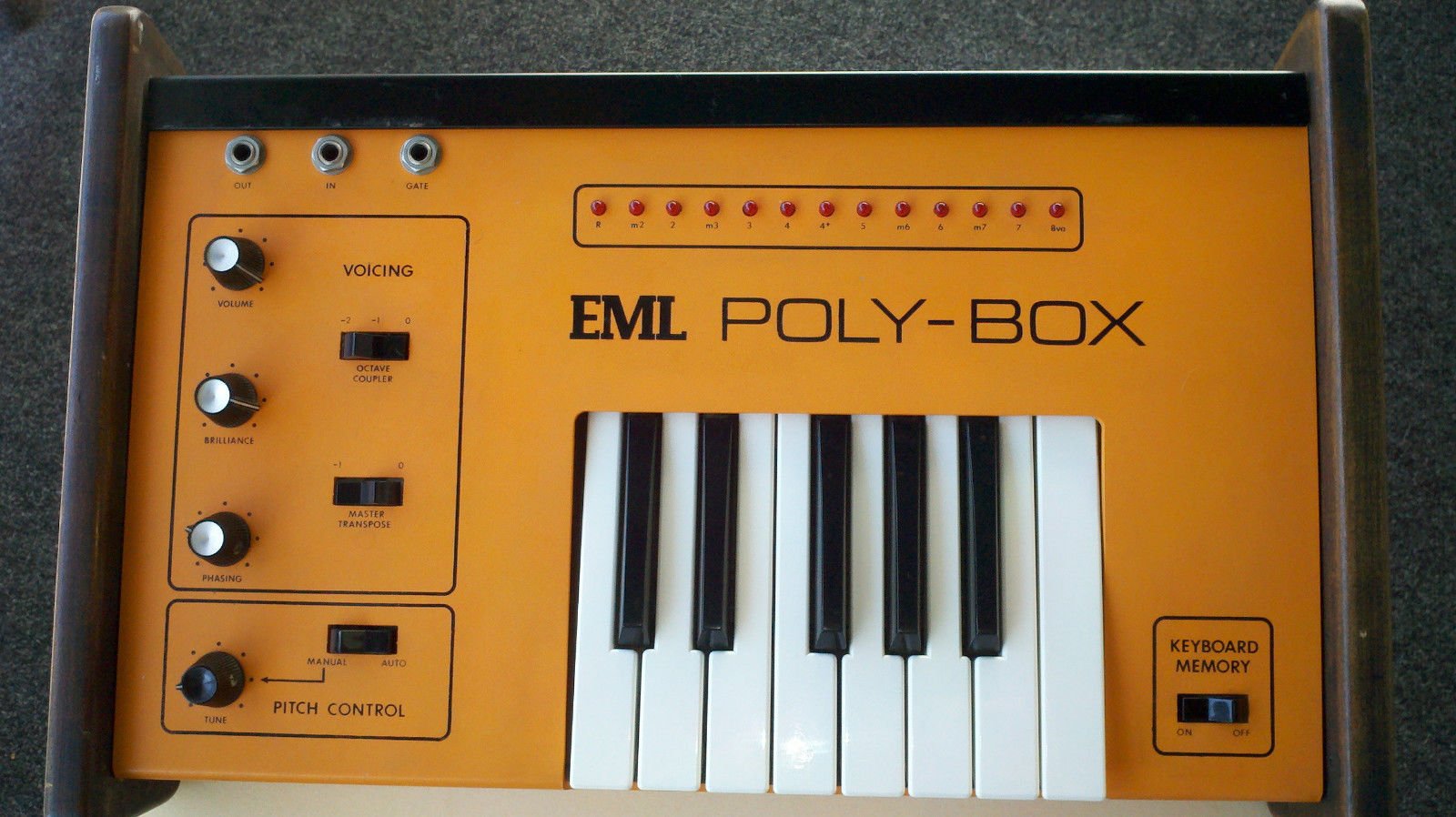

Description	The Poly-Box is an odd piece of synthesizer technology. It's basically a small-remote keyboard controller for ancient analog synths, but with a twist. It takes control of your analog synthesizer and, even though they're monophonic, the Poly-Box will create polyphony by programmable chord memory presets. Designed for use via CV/Gate with other EML synths. Here is how EML describes it: "Poly-Box is a pitch following variable chord generator controlled by your synthesizer and Poly-Box's own keyboard with built-in memory. Poly-Box takes a single pitch from your synthesizer and creates two banks of pitch sources. Each pitch bank contains 13 simultaneously available pitch sources at precise semitone intervals - covering an entire chromatic octave. The pitch banks may be in the same or different octaves, and can cover the range from one above to three octaves below the synthesizer oscillator."
Brand	Electronic Music Laboratories (EML)
Model	Poly-Box
Device	Misc
Type	Keys
Engine Type	Controller
Engine	Keys
Voices (max)	13
Memory	26 patches
Sequencer	2 banks of 13 sequences plus automatic mode
Keys	13
Key type	Keys
Velocity	No
Aftertouch	No
CV-gate	CV/GATE
Produced:	1977 - 1984

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
