The Ultimate SynthDB | Electronic Music Laboratories (EML) ElectroComp Model 300

Browse

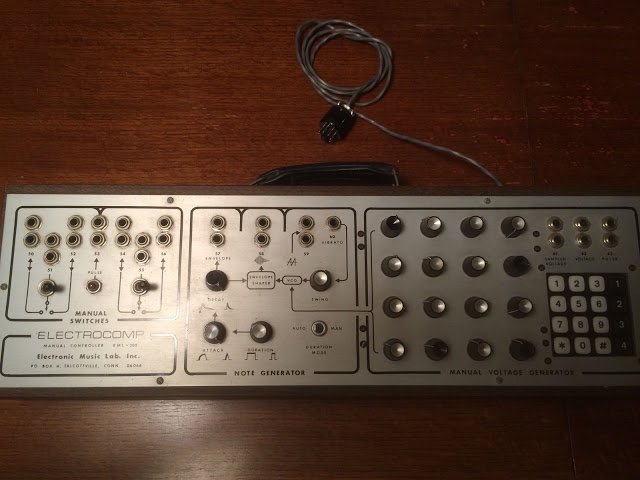

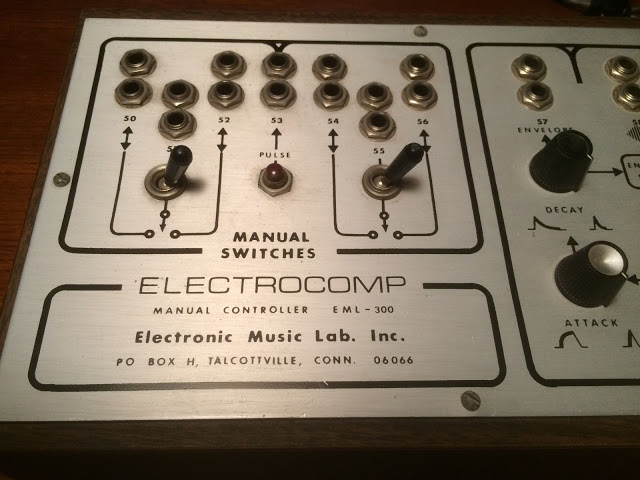

Description	The ElectroComp 300 from EML is a controller unit with a basic synthesizer, sequencer keyboard with numeric buttons and control knobs. The 300 is divided in 3 sections. On the left is a switch patch panel. the mid section has a VCO with envelope generator, and the right side has 16 numerical buttons that trigger notes as an alternative to a keyboard. The 300 needs to be used with one of the EML models such as the 200 or 400 models. It draws it's power from the connected model. EML offered the unit as an alternative to using a keyboard with their modules.
Brand	Electronic Music Laboratories (EML)
Model	ElectroComp Model 300
Device	Synth
Type	Desktop
Engine Type	Modular (Semi)
Engine	VCO
Voices (max)	1
Oscillators	1
Engine Detailed	1 VCO
Envelope (VCA)	AD
Keys	16
Key type	Buttons
Velocity	N
Aftertouch	N
Audio	Mono out
CV-gate	CV I-O
Produced:	1972 - 1984

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
