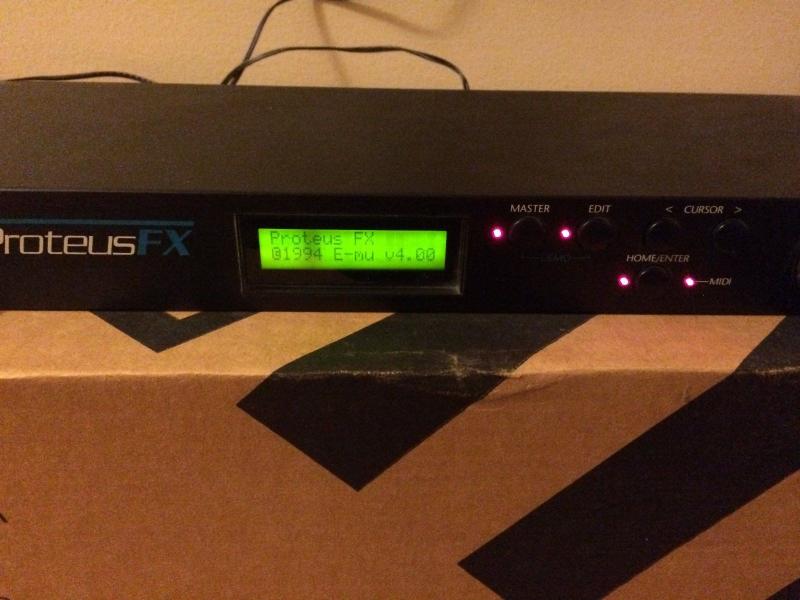

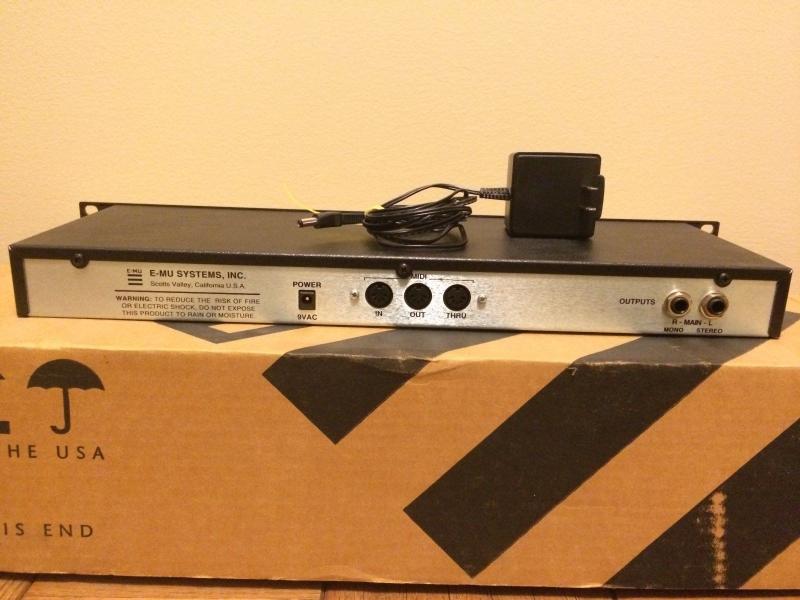

Description | The Proteus FX module features sounds from both the rock pop and orchestral modules. It also adds two digital effects processors with reverb, delay, chorus and more. Surprisingly, the FX surpasses other Proteus models in many ways but it is also the least expensive model! It features 8 MB of sounds standard, and up to 512 patches. But what it doesn't have, is six polyphonic outputs. Just your basic stereo L/R(mono) output. The Proteus offers professional features such as full 16-part MIDI multitimbrality, 32-voice polyphony, 16-bit ROM samples, six individual polyphonic outputs and extensive editing and modulation capabilities. There is also E-mu's "MidiPatch" that allows direct real-time control of over 40 parameters for keyboard, midi controllers, internal LFOs and envelopes. |
| Brand | E-mu |
| Model | Proteus FX |
| Device | Synth |
| Type | Rack |
| Engine Type | Digital |
| Engine | Sample |
| Voices (max) | 32 |
| Multitimbral | 16 |
| Oscillators | 1 |
| LFO | Y |
| Engine Detailed | 8 MB of ROM based 16-bit samples; 125 waveforms |
| FX | 2 digital effects processors: Reverbs, chorused and delays |
| Memory | 512 patches (64 user programmable); |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
|
Produced: | 1989 - 1995 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
