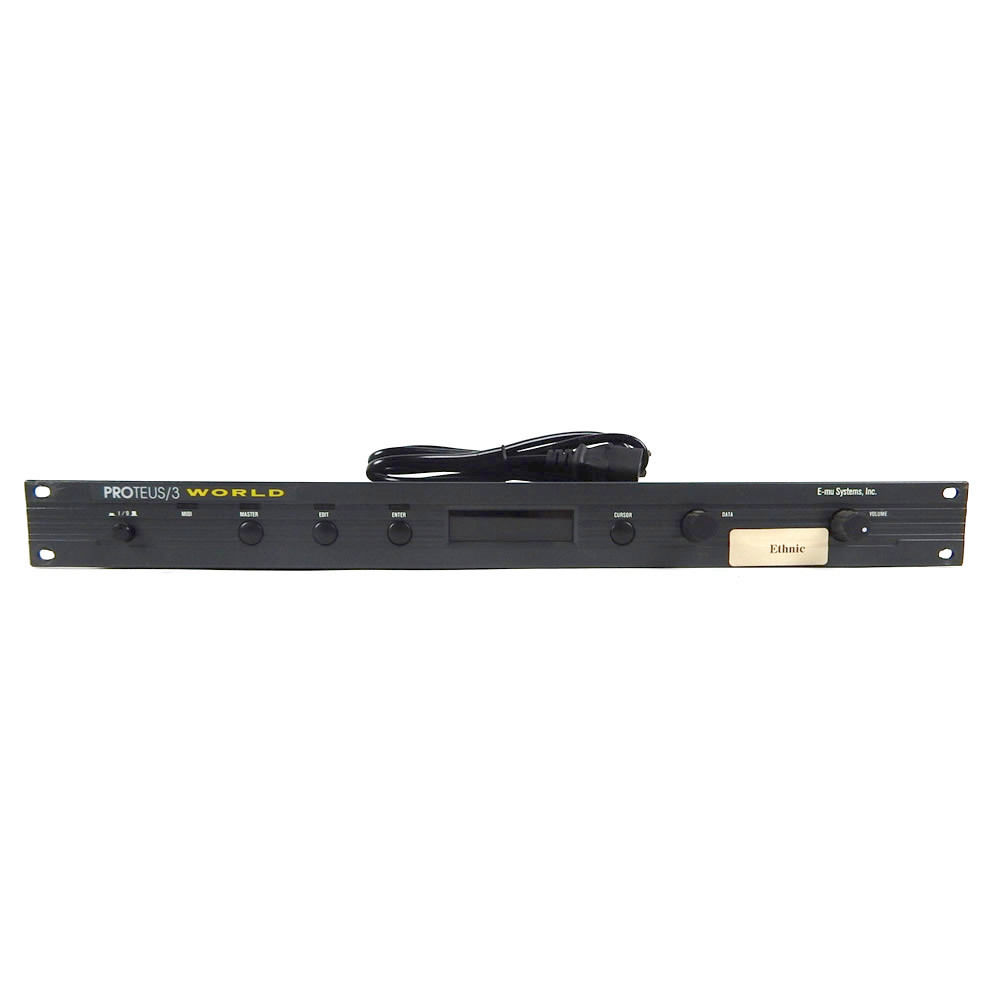

E-mu | Proteus 3 (World and XR)

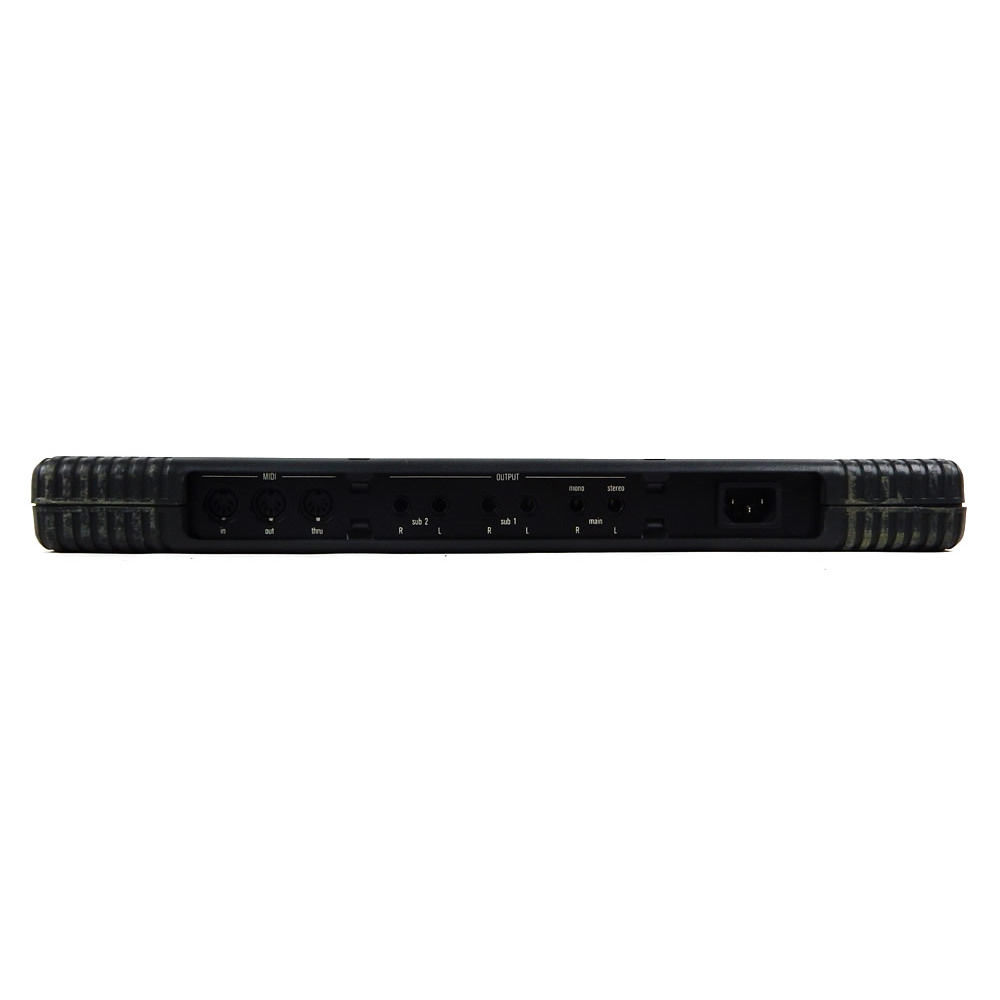

|The Proteus 3 is identical to the previous Proteus models except that it features an ethnic World set of sounds. The Proteus offers professional features such as full 16-part MIDI multitimbrality, 32-voice polyphony, 16-bit ROM samples, six individual polyphonic outputs and extensive editing and modulation capabilities. There is also E-mu's "MidiPatch" that allows direct real-time control of over 40 parameters for keyboard, midi controllers, internal LFOs and envelopes.
The standard Proteus 3 could be upgraded to XR versions (extended RAM) as well. These doubled the RAM and memory up to 8MB, adding another 192 of user patches (128 preset / 64 user) for a total of 384 patches.
|Model||Proteus 3 (World and XR)|
|Engine Detailed||4 MB of ROM based 16-bit samples (expandable to 8 MB); 125 waveforms|
|Memory||192 patches (64 user programmable); up to 384 on XR modules|
|Produced:||1989 - 1995|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
