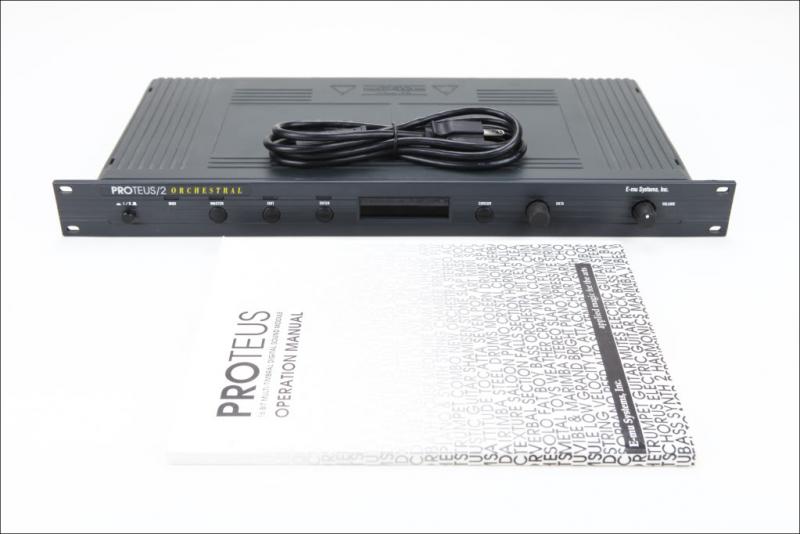

E-mu | Proteus 2 (Orchestral And XR)
|In 1990, the Proteus 2 was released which is identical to the Proteus 1 in most every way except that it has 4 MB of purely orchestral sounds - the same sounds from the Plus Orchestral ROM card, which also happen to come from the EIII library. This was the first time really high quality sounding orchestral sounds could be had in a dedicated sound module.

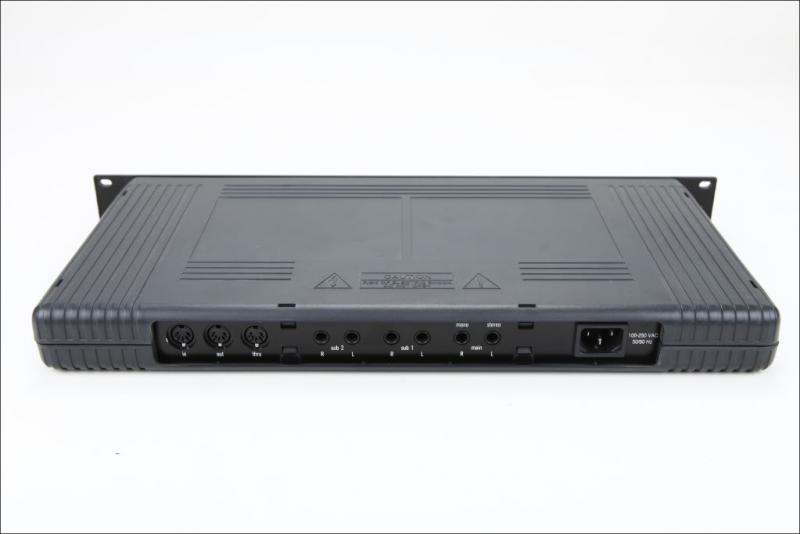

The Proteus offers professional features such as full 16-part MIDI multitimbrality, 32-voice polyphony, 16-bit ROM samples, six individual polyphonic outputs and extensive editing and modulation capabilities. There is also E-mu's "MidiPatch" that allows direct real-time control of over 40 parameters for keyboard, midi controllers, internal LFOs and envelopes.
The standard Proteus 2 could be upgraded to XR versions (extended RAM) as well. These doubled the RAM and memory up to 8MB, adding another 192 of user patches (128 preset / 64 user) for a total of 384 patches.
|Model||Proteus 2 (Orchestral And XR)|
|Engine Detailed||4 MB of ROM based 16-bit samples (expandable to 8 MB); 125 waveforms|
|Memory||192 patches (64 user programmable); up to 384 on XR modules|
|Produced:||1989 - 1995|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
