E-mu | Modular systems

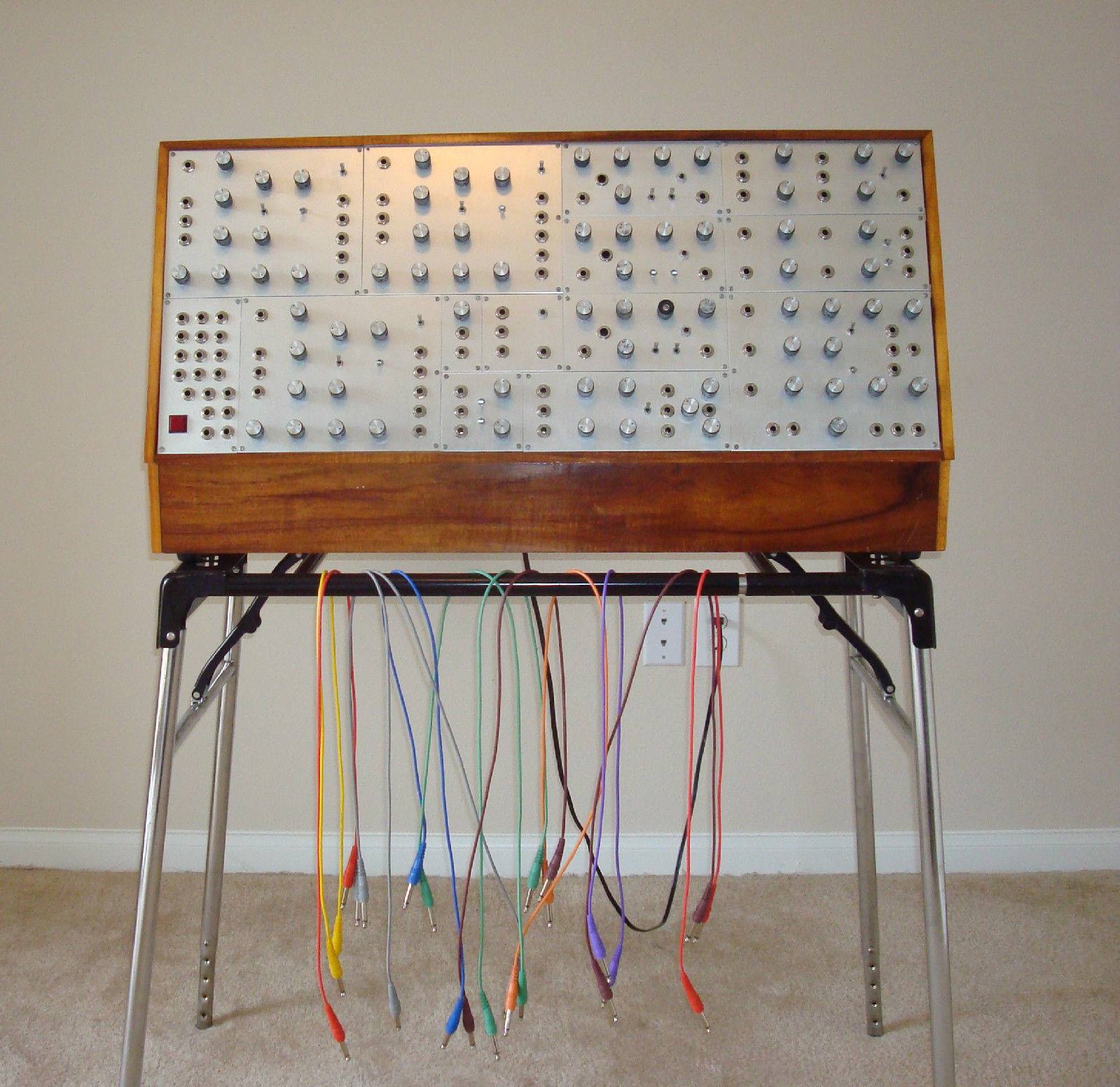

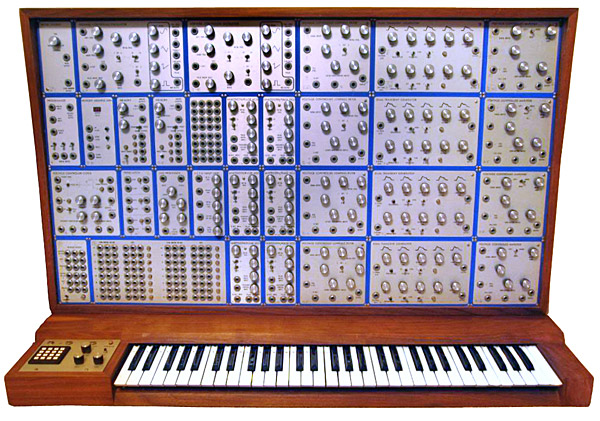

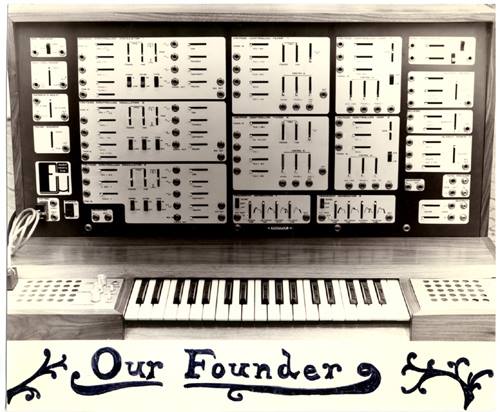

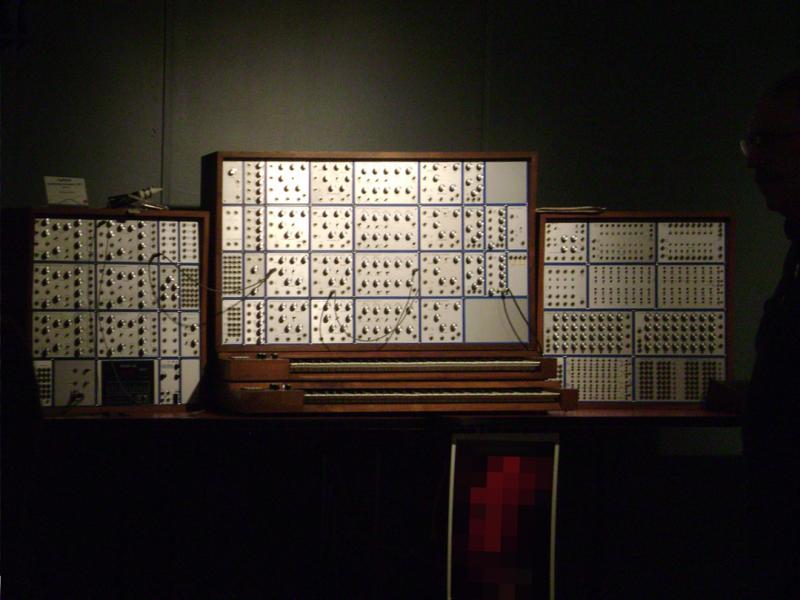

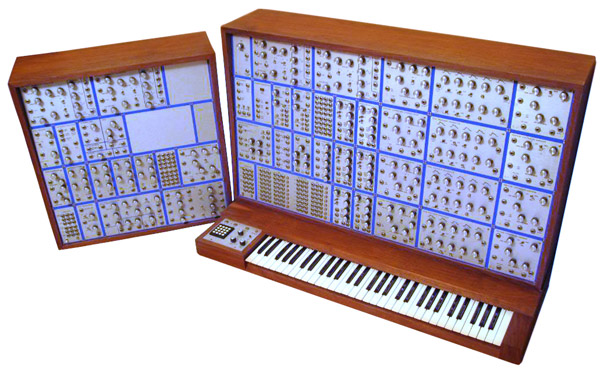

E-mu Systems is known today for producing some of the best digital samplers and sample-playback ROM sound modules on the market. But they got their start from humble beginnings in the very early 1970's. Based out of California, USA, E-mu produced over 250 of these modular synthesizers for famous artists and universities. These modular synths were custom-built instruments and, although they competed against classics like the ARP 2500, 2600 and Moog modular synthesizers, they were initially intended for high-end users such as schools and at the request of some famous musicians. The system requires patching via patch cords to route your signal through its various modules to create musical sounds. It also featured a firm-wire patch in which any front panel patch could be made in the rear of the instrument. Inserting a front panel patch would then bypass the firm-wired patch. So you can store a favorite voicing or frequently used connections using the firm-wire patches. The firm-wire patches are not permanent and can be easily changed by the user.

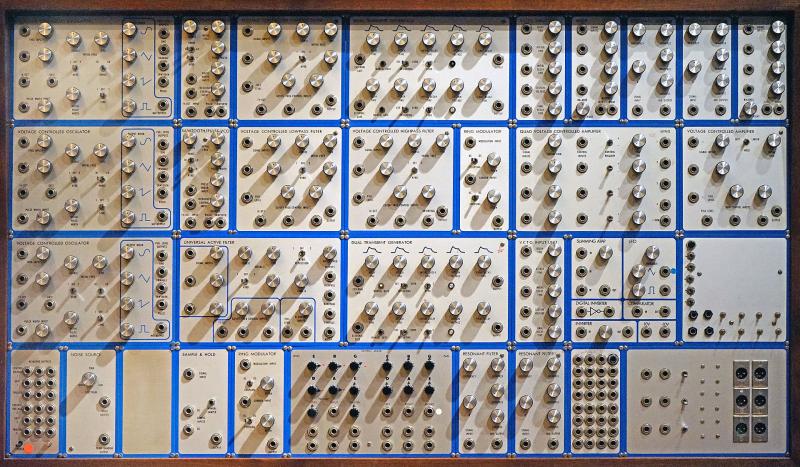

Modular systems meant that buyers could custom design their systems by choosing specific modules that they wanted installed into their system. E-mu modules available included: VCA, Quad Inverter, Low Pass Filter, High Pass Filter, Ring Modulator, Dual Trans. Gen., Large VCO, Small VCO, Noise gen., Sample-and-Hold, Envelope Follower, Dual Reverb, and more. Each system was hand built to order and there are less than 100 or so of these babies still around today! E-mu's oscillators were virtually drift-free, unlike other major synthesizers of the time, because of E-mu's unique circuit designs. Their filters were also cleaner than the Moog and ARP, however that wasn't a good thing since people like the grittier Moog sound. E-mu's systems made excellent alternatives to other big name classic modulars. Unlike most others which almost always had black panels, the E-mu modulars featured bright and shiny 1/8" aluminum panels with nice blue lines separating each module.

ModelModular systems
Engine TypeModular
Voices (max)2
LFOVCC (Voltage controlled clock: saw, pulse, speed); Sample-and-Hold Modules available too
Engine DetailedVCO modules feature (sin, tri, saw, sqr; coarse, fine tune, sync, pulse width)
Filter (VCF)24dB low-pass (cutoff, Q, key track, res); 24dB Hi-pass module; Universal Hi/Band/Low-Pass and Notch module; Resonant Formant Filter; Ring-Modulator modules available too.
Envelope (VCA) VCA Modules feature DADSR envelope controls
Key typeKeys
CV-gateCV/GATE x2
Extra info250 Made
Produced:1973 - 1981
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
