E-mu | B3 Organ

Description

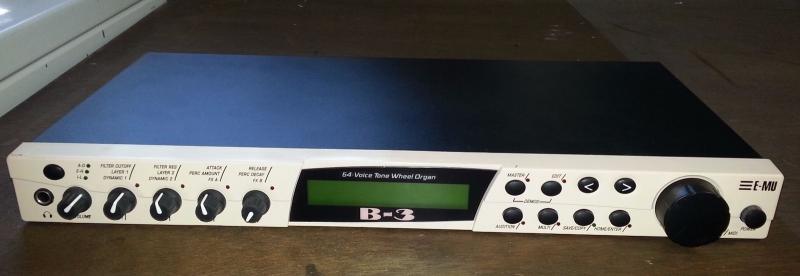

This module is designed to deliver the classic sound of the B-3 Tonewheel Organ in a programmable rack module. It does this via 32MB of sampled B-3 sounds at a lot of different drawbar settings. Authentic sounds are completed by the addition of distortion and a rotary speaker (Leslie) emulator, with B-3 like real-time control! There are also 12 assignable real-time front panel controls, and the B-3 is expandable with an additional ROM slot (or more with the Turbo upgrade) for adding more sounds.

E-mu sound modules ship with one 32 MB sound-set each, but are expandable up to 128 MB via three additional slots for 32 MB expansion cards:

  • 9061: Siedlaczek Orchestra 32 MB ROM.
  • 9062: Pure Phatt 32 MB ROM - standard in Mo’Phatt, MP-7 and MK-6.
  • 9063: Beat Garden 32 MB ROM - standard in Orbit 3.
  • 9082: Protozoa 16 MB ROM - standard in Proteus 1, 2, 3.
  • 9083: Definitive B-3 32 MB ROM - standard in B-3.
  • 9084: Techno Synth Construction Yard 32 MB ROM - standard in Orbit 3.
  • 9085: Orchestral Session Vol. 1 32 MB ROM - standard in Virtuoso 2000.
  • 9086: Orchestral Session Vol. 2 32 MB ROM - standard in Virtuoso 2000.
  • 9087: World Expedition 32 MB ROM - standard in Planet Earth.
  • 9088: Sounds of the ZR featuring the Perfect Piano 32 MB ROM - standard in Ensoniq Halo.
  • 9089: X-Lead 32 MB ROM - standard in Xtreme Lead-1, XL-7 and XK-6.

With these expansion options, you could buy a PK-6, then add the sounds of the Orbit 3, XK-6, and the MP-7... or any other combinations you may want. If you like desktop synths, you can start with an MP-7 or XL-7, and then add these same expansion card options to add Proteus, Orchestral, or the Halo sounds to them. E-mu/Ensoniq's interchangeable sound cards and a variety of keyboard/sound-module options means that there's a model out there for everybody now.

BrandE-mu
ModelB3 Organ
DeviceSynth
TypeRack
Engine TypeDigital
EngineSample
Voices (max)64
Multitimbral32
Oscillators1
Engine Detailed32 MB ROM "Definitive B-3" Soundset
FX24-bit dual stereo-effects processor
Memory384 ROM and 512 User Presets
Keys0
Key typeN/A
VelocityN/A
AftertouchN/A

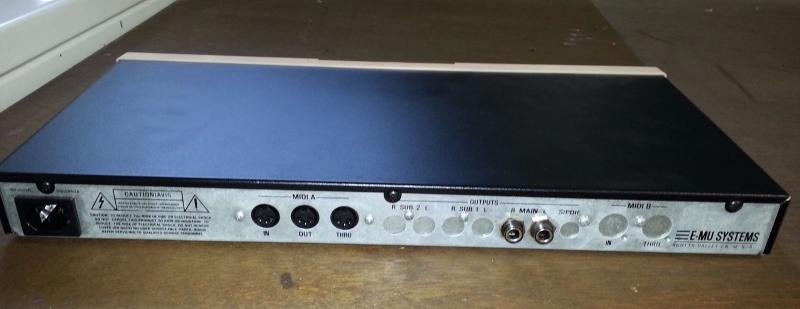

MidiI-O-T
Extra infoEngine expandable to 128 with Turbo upgrade. 9061: Siedlaczek Orchestra 32 MB ROM. 9062: Pure Phatt 32 MB ROM - standard in Mo’Phatt, MP-7 and MK-6. 9063: Beat Garden 32 MB ROM - standard in Orbit 3. 9082: Protozoa 16 MB ROM - standard in Proteus 1, 2, 3. 9083: Definitive B-3 32 MB ROM - standard in B-3. 9084: Techno Synth Construction Yard 32 MB ROM - standard in Orbit 3. 9085: Orchestral Session Vol. 1 32 MB ROM - standard in Virtuoso 2000. 9086: Orchestral Session Vol. 2 32 MB ROM - standard in Virtuoso 2000. 9087: World Expedition 32 MB ROM - standard in Planet Earth. 9088: Sounds of the ZR featuring the Perfect Piano 32 MB ROM - standard in Ensoniq Halo. 9089: X-Lead 32 MB ROM - standard in Xtreme Lead-1, XL-7 and XK-6.
Produced:1999 - 2000
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
