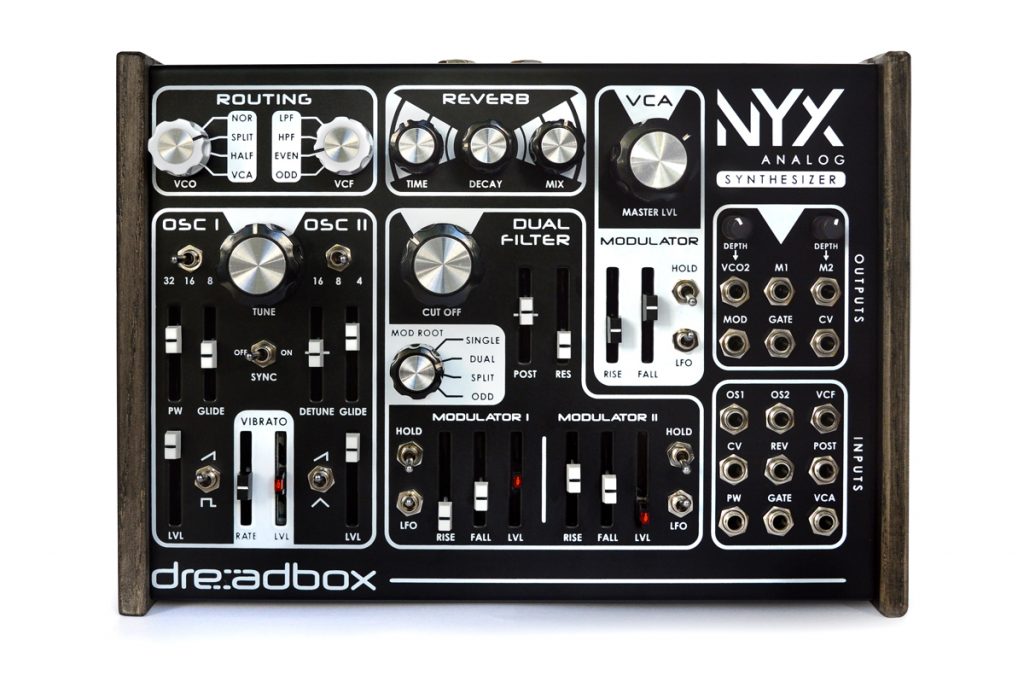

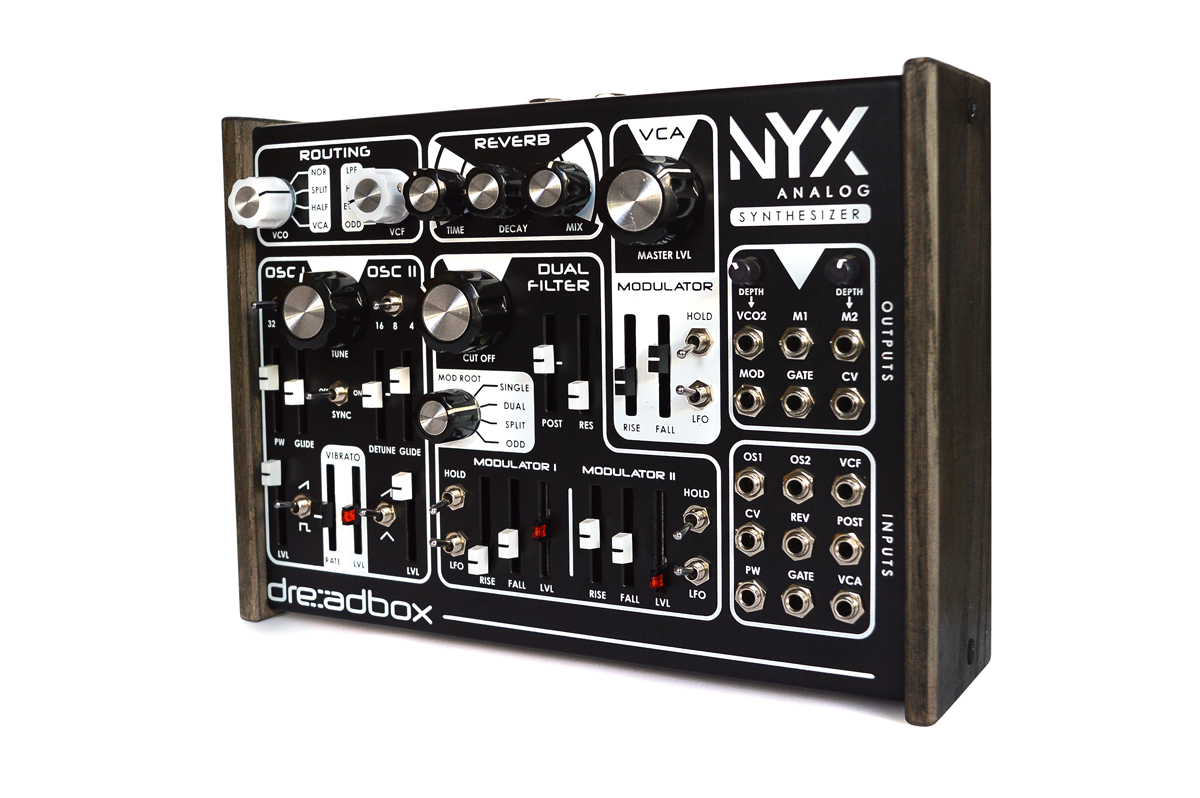

Dreadbox | NYX |
|
Description | Dreadbox NYX is a 2 oscillator analog synthesizer offering unique routing operations. The unit also features a dual state variable filter and a version of the Crazy Tubes mk3 + reverb on board. It has a triple unique envelope filter which can also be used as an LFO as well as a dedicated triangle LFO. the instrument offers 15 patches for a modular experience including CV inputs and outputs. |
| Brand | Dreadbox |
| Model | NYX |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 2 |
| Oscillators | 2 |
| LFO | 1 Triangle |
| Engine Detailed | 2 VCO Pulse Variable |
| Filter (VCF) | 1 Dualstate, 12dB Slope (2-pole), 24dB Slope (4-pole), Resonance |
| Envelope (VCA) | 3 envelopes |
| FX | Reverb |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |

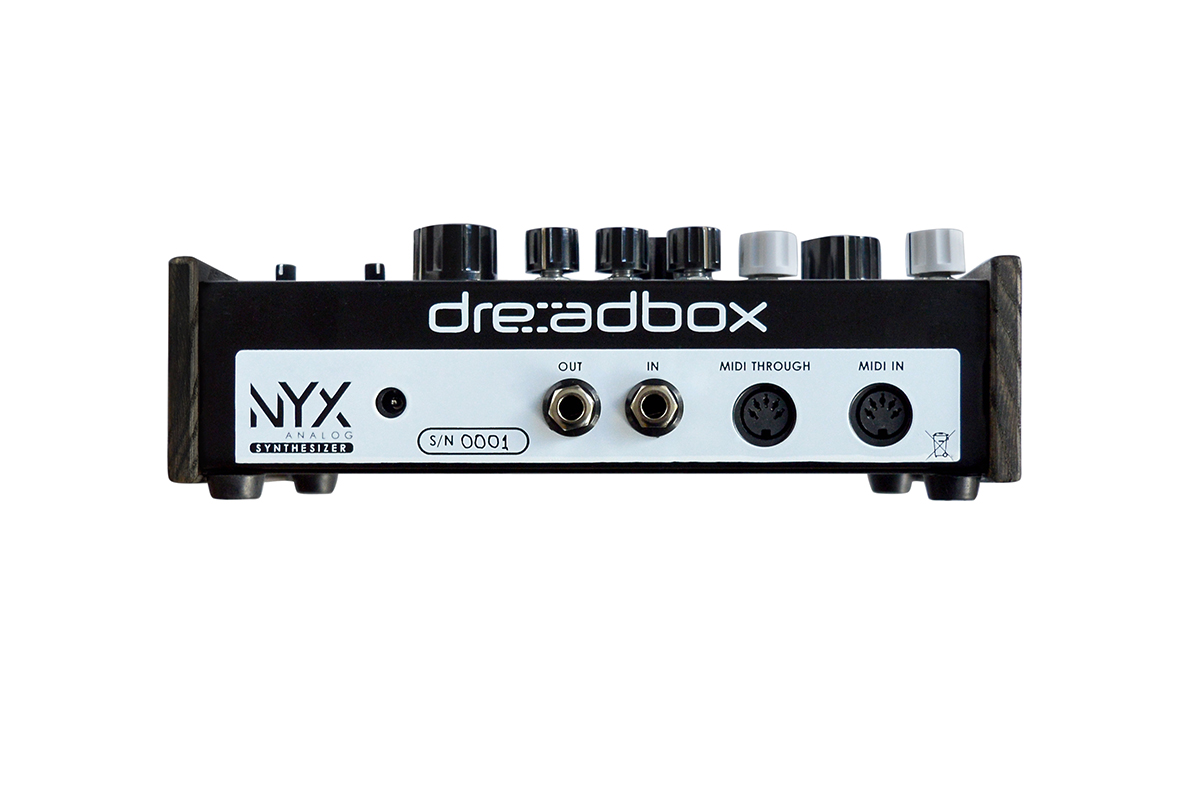

| Audio | Mono out |
| Midi | I-T |
| CV-gate | CV I, Gate I-O |
| Produced: | 2017 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
