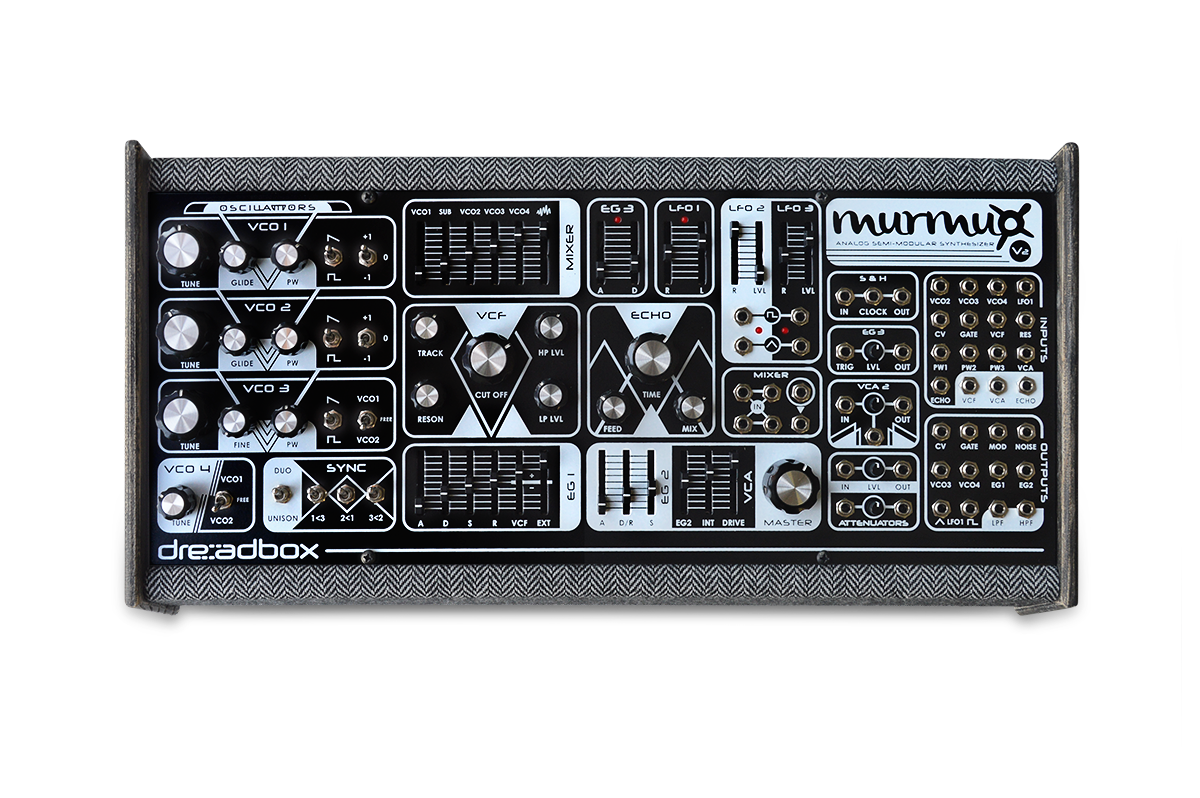

Description | In 2016 Dreadbox announced the release of Murmux 2. A limited edition followup to their original Murmux. The Murmux 2 is a 3 oscillator Analog Paraphonic Synthesizer that is and-soldered, and handcrafted with through hole components. The unit also has a sub oscillator, 3 envelopes, 3 LFO's, and 1 hyper VCO circuit and a white noise generator. 50 patch points lets the user have the ultimate modular experience. The dreadbox Murmux 2 was limited to 50 units and sold out immediately. |
| Brand | Dreadbox |
| Model | Murmux 2 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 4 |
| Sub | 1 |
| LFO | 3 Saw Up, Triangle |
| Noise | Y |
| Engine Detailed | 1 VCO Pulse Variable, Square, Triangle |
| Filter (VCF) | 1 12dB Slope (2-pole), 24dB Slope (4-pole), High Pass, Low Pass, Resonance |
| Envelope (VCA) | 2 ADSR, 1 AD |
| FX | Echo, Drive |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |

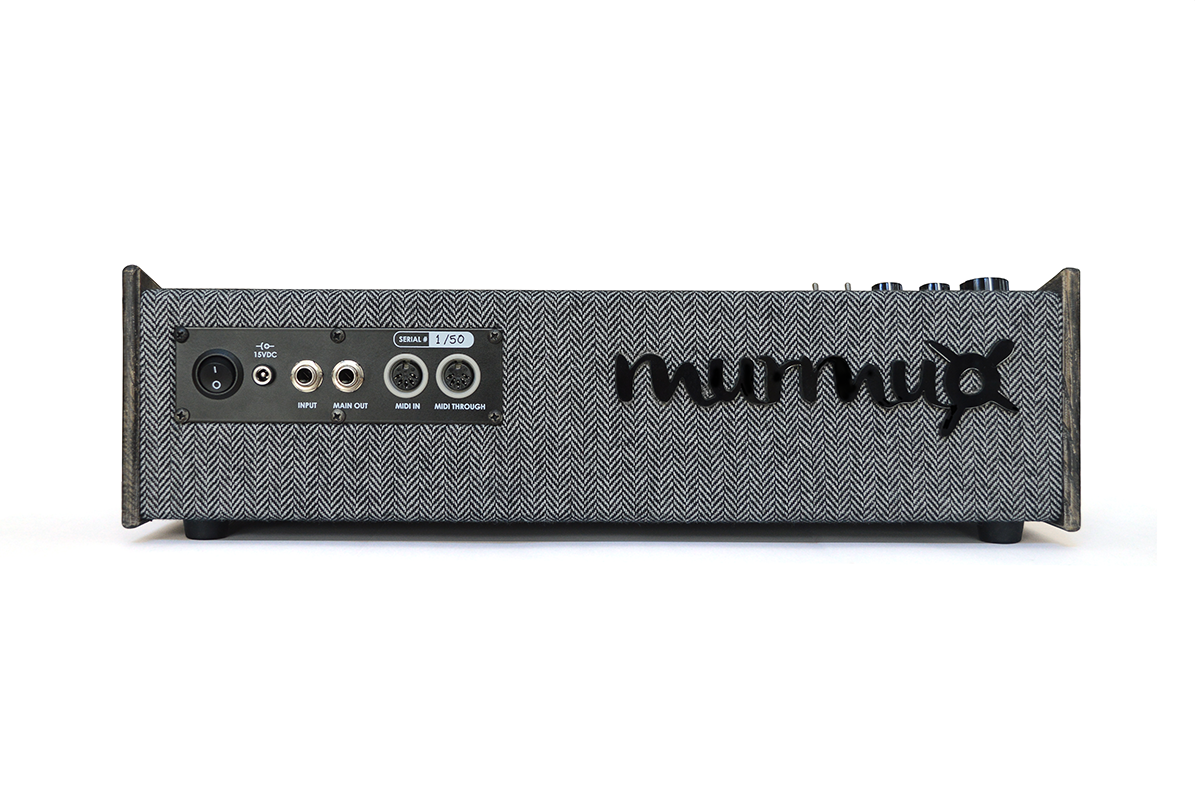

| Audio | Mono out |
| Midi | I-T |
| CV-gate | CV/Gate I-O |
| Extra info | 50 units made |
|
Produced: | 2016 - 2016 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
