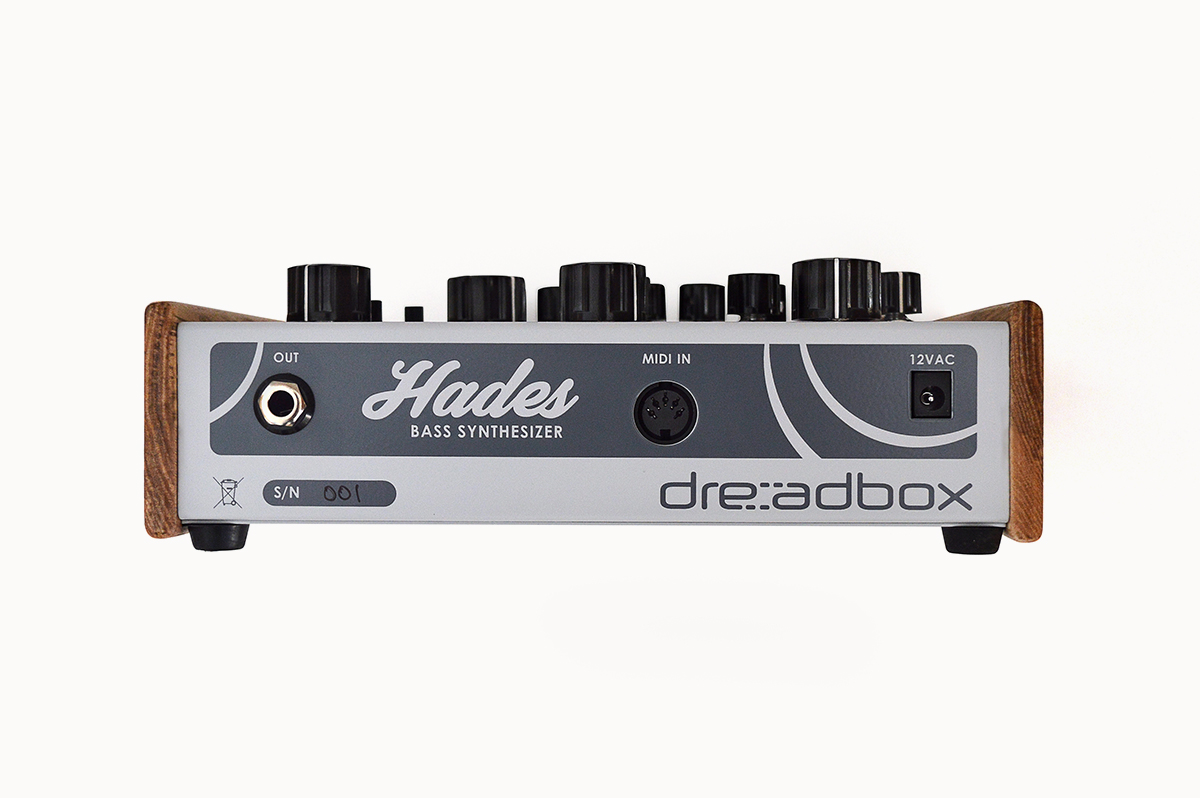

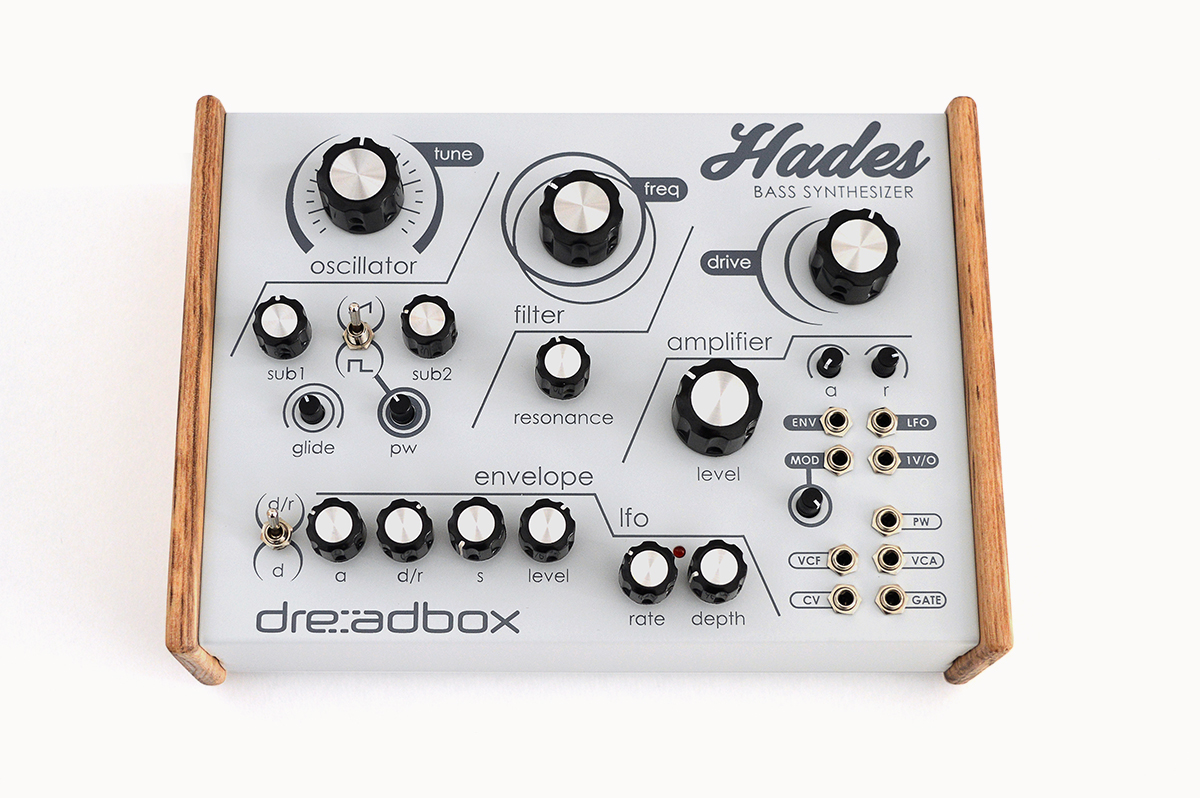

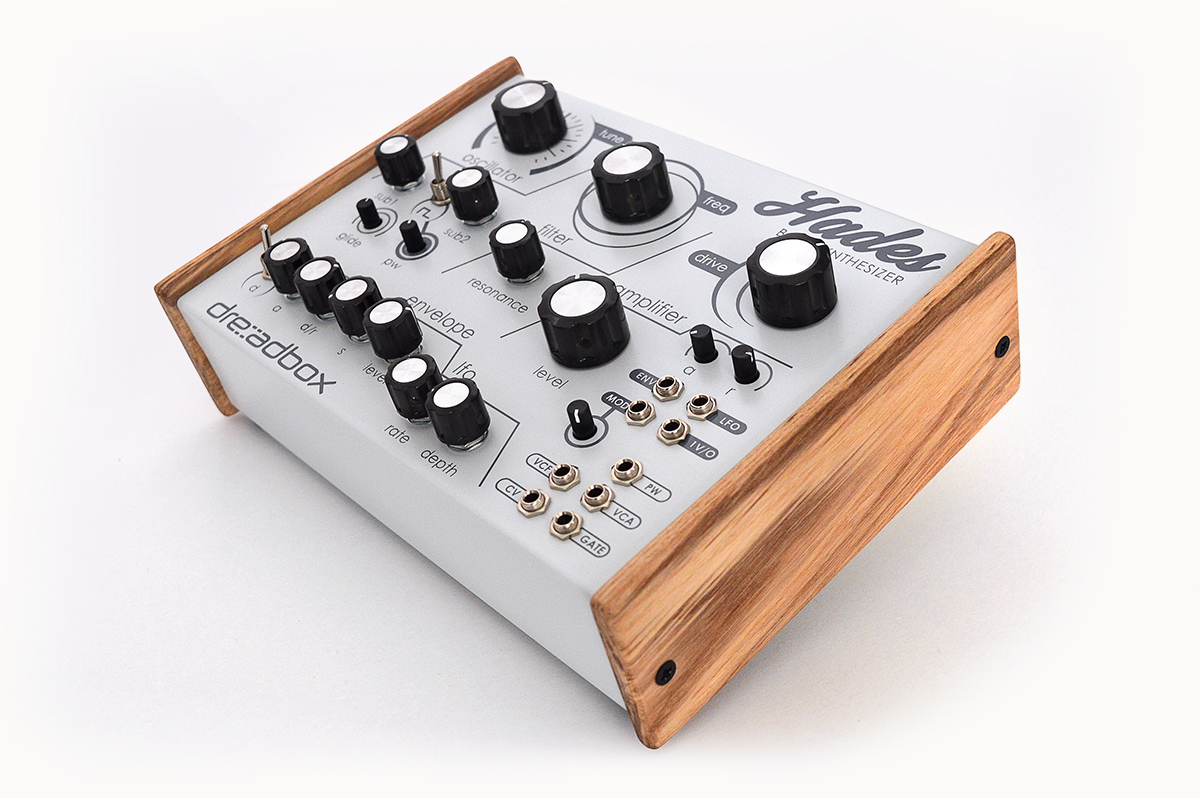

Dreadbox | Hades |
|
Description | Hades is an analog bass synthesizer, Full Analog Circuit only with Through Hole Components. It features 1 x VCO with 2 suboctaves (3 voices in total), pulse width and glide controls and a 3-pole 18dB/oct Resonating Low Pass Filter. OTA Distortion Circuit for extreme sounds and an OTA-based VCA along with 2 envelope Generators: It also has a Triangle Wave LFO, an 8-point matrix eurorack compatible patch and reads 5 MIDI Octaves from C0 up to C5 or unlimited via CV/Gate. |
| Brand | Dreadbox |
| Model | Hades |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 1 |
| LFO | 1 Triangle |
| Engine Detailed | 1 VCO with 2 sub octaves |
| Filter (VCF) | 1 18dB Slope, Low Pass, Resonance |
| Envelope (VCA) | ADSR |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Audio | Mono out |
| Midi | I |
| CV-gate | CV IN, Gate In, 1 Hz Octave |
| Produced: | 2015 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
