Dave Smith Instruments (DSI) | Rev2 |
/Rev2/DSI-REV2-1.jpg)
/Rev2/DSI-REV2-2.jpg)
/Rev2/DSI-REV2-3.jpg)
/Rev2/DSI-REV2-4.jpg)
/Rev2/DSI-REV2-5.jpg)
|

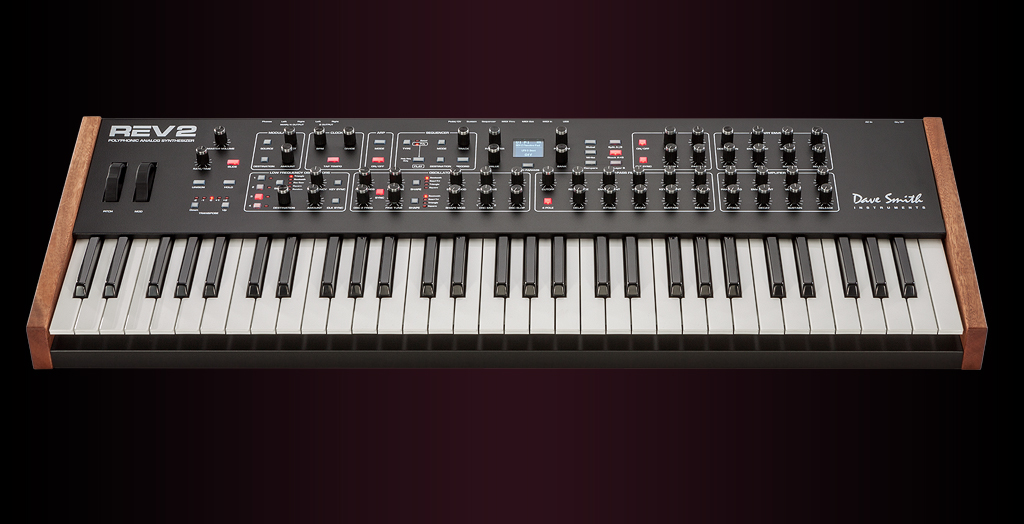

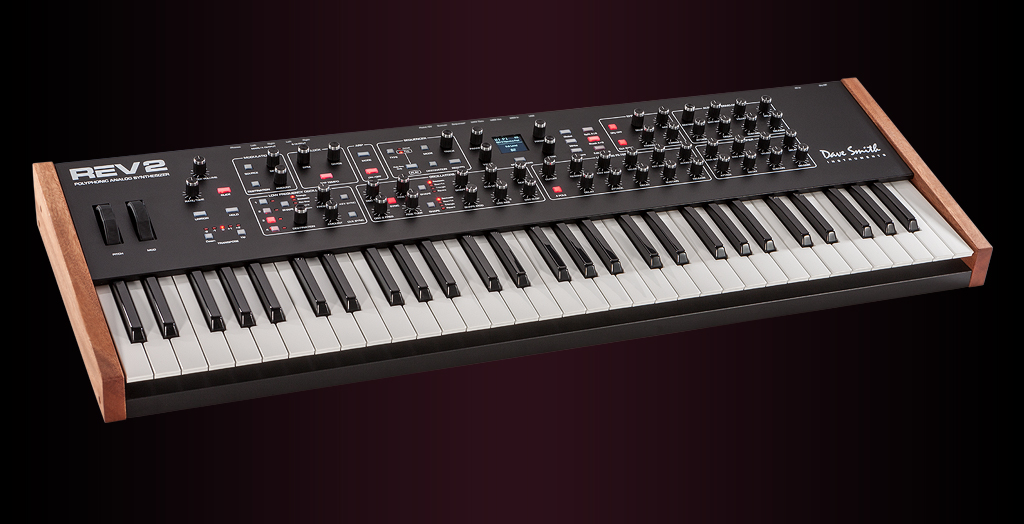

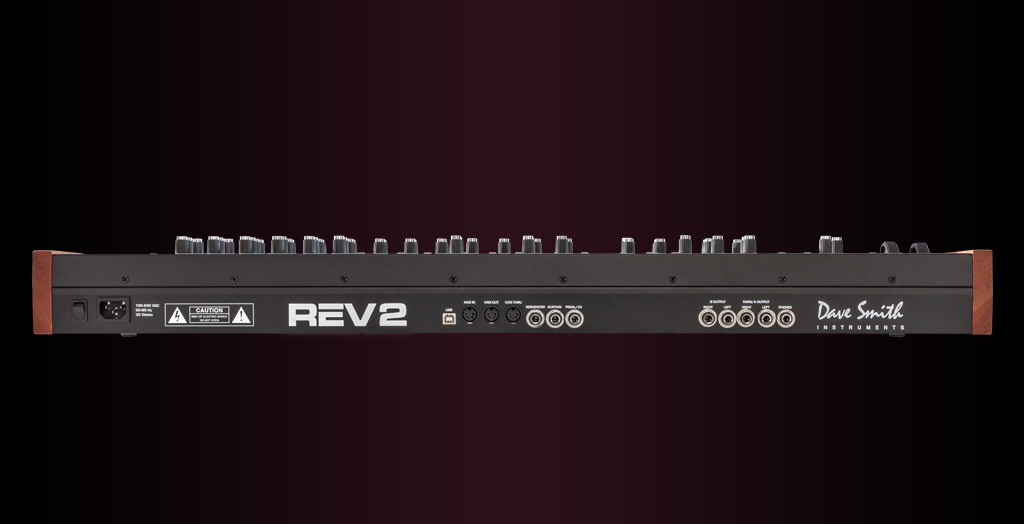

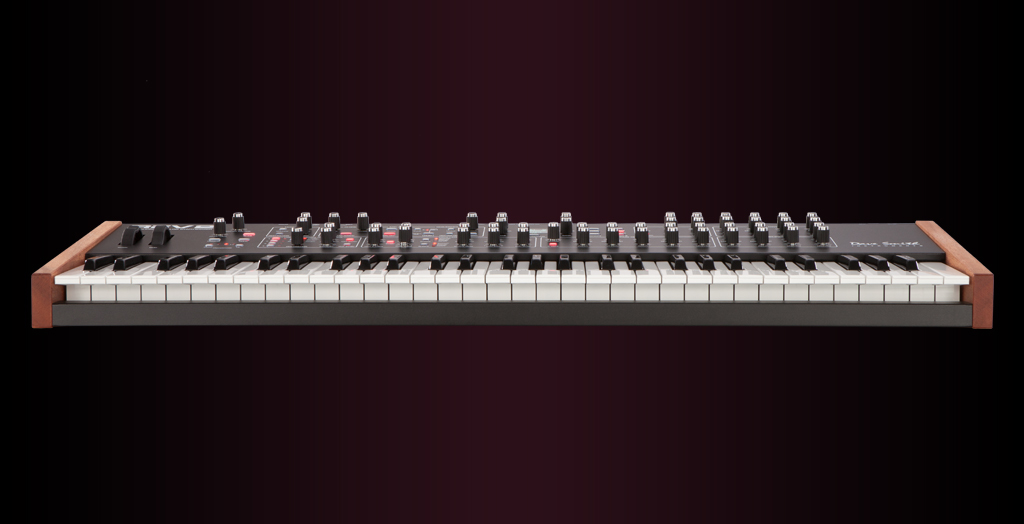

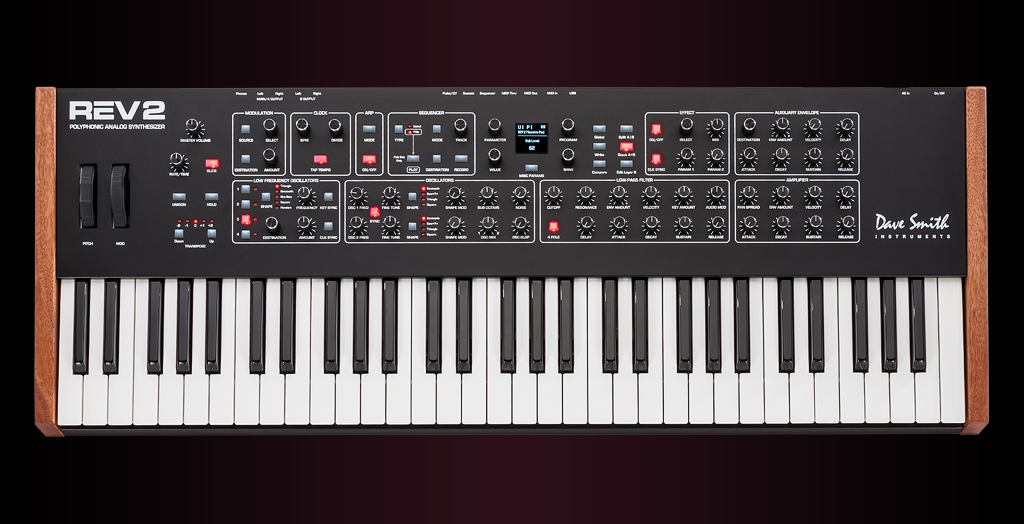

Description | The REV2 is Dave Smith’s reimagining of his Prophet ’08 poly synth — a modern classic that has appeared on countless recordings and stages since its debut in 2007. The REV2 retains all of the key features of the Prophet ’08 and expands on them. It has twice the polyphony, twice the mod matrix, waveshape modulation on all waveforms, digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer, and more. The result is a true analog powerhouse. Best of all, you can download any of the many existing libraries of Prophet ’08 sounds and they will not only sound identical, but can be enhanced with the new features. 16-Voice Polyphony (or 8) With 16 voices to play with, you have the freedom to allocate them as you wish. Play two handed chords, stack two 8-voice sounds for massive, complex textures, or split the keyboard into two completely separate 8-voice instruments. For a smaller budget an eight voice version is available too. Bold Sound The REV2 gets its bold, punchy sound from its 2/4 pole, low-pass, resonant Curtis filters per voice. These are the same filters used not only in the Prophet ’08, but in many classic instruments of the 70’s and 80’s. A separate Audio Mod control adds additional harmonic complexity and movement. Waveshape Modulation A powerful new feature unique to the REV2 is waveshape modulation. You can now vary the “pulse width” of any of the four waveforms (sawtooth, saw+tri, triangle, square). Using the Shape Mod control, you can manually dial in a desired waveshape width or use an LFO or other mod source for continuously shifting timbre. Even single-oscillator sounds take on new depth and dimension. The tonal possibilities are vast. Effects Per Layer The effects section provides reverb, delays (standard and BBD), chorus, phase shifter, ring modulation, and distortion. In stacked or split voice mode, you can apply a different effect to each layer. Effects parameters can be modulated through the Mod Matrix. Extended Mod Matrix Also present from its predecessor is an easy-to-assign Mod Matrix, now twice as big, with 8 individual slots and many more sources/destinations. It’s a veritable sound designer’s playground. Poly Step Sequencing The polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. You can create a different sequence for each layer when you are working in stacked or split voice mode, making it a powerful tool for composition or performance. The sequencer also functions as a modulation source in gated mode, allowing you to create up to 4 different 16-step sequences for complex modulation. Sequences allow ties and rests, and can sync to an external MIDI clock. The arpeggiator features note repeats, re-latching, and can be synced to external MIDI clock, as well. Per-Knob Programmability The knob-per-function front panel offers instant access to REV2 functions. Included are 512 permanent factory programs and 512 rewritable user programs. Eminently Playable All of this polyphonic power is packed into a five-octave, premium-quality, semi-weighted keyboard with velocity and channel aftertouch. Other road-worthy features include an integrated power supply, USB support, and a crisp OLED display, making the REV2 an ideal instrument for gigging or recording, and an analog powerhouse like no other. |
| Brand | Dave Smith Instruments (DSI) |
| Model | Rev2 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | DCO |
| Voices (max) | 16 |
| Multitimbral | 2 |
| Oscillators | 2 |
| Sub | 1 |
| LFO | 4 Sample & Hold, Saw Up, Saw Down, Square, Triangle, Clocked, Key Sync |
| Noise | Y |
| Engine Detailed | 2 DCO, Pulse Variable, Saw Up, Square, Triangle, White Noise, sub, Waveshaping |
| Sampler | 1 12dB Slope (2-pole), 24dB Slope (4-pole), Low Pass, Resonance |
| Envelope (VCA) | 3 Delay, Attack, Decay, Sustain, Release, Looping |
| Memory | 512 ROM and 512 RAM (including layer/split setting) |
| Sequencer | 64-step, polyphonic sequencer. 16 step x 4 track gated step seq |
| Arpeggiator | up, down, up+down, random, assign |
| Keys | 61 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | N |
| Midi | I-O-T, USB |
| CV-gate | CV In |
| Extra info | 8-Voice version available as well |
| Produced: | 2017 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
