Dave Smith Instruments (DSI) | Prophet 12 Desktop
|Don’t let its small size fool you. The Prophet 12 Module boasts the same power and sound as the Prophet 12 Keyboard. Each of the Prophet’s twelve voices is composed of a brand new hybrid digital/analog architecture that sounds different than any other DSI line of synths, yet retains the true Prophet vibe. With a humongous twelve voice polyphony, sophisticated architecture, and sleek design, the Prophet 12 is ready to handle any sound in any setting.
A Voice as Big as the Rest
The Prophet 12’s brand new hybrid voice has a digital front end followed by an all analog signal path output. Each voice has four high resolution digital oscillators (plus a sub oscillator), a digital character effects section, a resonant Curtis low-pass filter, a high-pass filter, a tune-able feedback circuit, a four-tap delay line with feedback per line, four loopable five-stage envelope generators, four syncable LFOs with slew and phase offset, a sophisticated arpeggiator, and a sixteen slot modulation matrix with 26 mod sources and 97 modulation destinations. The Prophet 12 Module is packed with a plethora of sonic potential and power!
Frequency and amplitude modulate the oscillators with incredible accuracy. Freely assign oscillators in whatever operator and modulator configurations you choose. You can even assign each of the oscillators to modulate LFOs, envelopes, and filters.
Et Tu, Control?

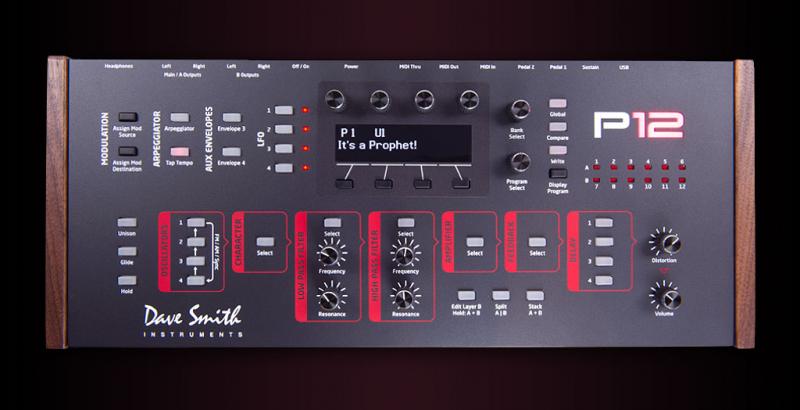

The Prophet 12 Module’s streamlined interface invites quick and easy control of every parameter on the synth. Each synth section can be selected at the press of a button with every parameter editable from the crisp OLED display. Easily create modulation assignments using the Assign Mod buttons. Dedicated Low and High Pass Filter potentiometers provide quick and smooth control of the filters.
The Prophet 12 Module has a rugged steel enclosure and is equally at home on your desk, in your rack, or on stage! An extensive MIDI implementation covers every available parameter on the synth and you can easily pair it with your favorite MIDI controller or DAW.
The Prophet 12 Module
The Prophet 12 is the most cutting edge hybrid synthesizer on the market and defines what a modern polyphonic synthesizer is. Designed and manufactured in San Francisco, the Prophet 12 Module has a glorious combination of form and function in a sturdy, portable and elegant build. Use it as a desktop module or add it to your rack with the optional rack mount kit (available separately).
|Brand||Dave Smith Instruments (DSI)|
|Model||Prophet 12 Desktop|
|LFO||4 Noise, Saw Up, Saw Down, Triangle, Clocked, Phase|
|Engine Detailed||4 Osc, Pink Noise, Saw Down, Sine, Square, Triangle, Wave Table, FM|
|Filter (VCF)||2 6dB Slope, 12dB Slope (2-pole), 24dB Slope (4-pole), High Pass, Low Pass, Resonance|
|Envelope (VCA)||4 Delay, Attack, Sustain, Release, Looping|
|Memory||396 ROM and RAM|
|Arpeggiator||Programmable, Up, down, up+down, random, assign modes. Re-latching arpeggiator.|
|Controllers||Sustain and 2 expression|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
