Dave Smith Instruments (DSI) | Mopho X4
|The Mopho x4 builds upon the same award winning voice architecture of the Mopho and Mopho Keyboard, the Mopho x4 boasts huge sound and 4 voice polyphony in an ideally sized, portable, and elegantly designed package. Use it to create huge unison basses, creamy leads, percolating sequences, and ethereal pads.
4 Times the Voice 4 Your Pleasure
Each of Mopho x4’s four voices is composed of two analog oscillators, two sub octave generators, selectable 2- or 4-pole famed Curtis low-pass filter, three 5-stage envelope generators, four LFOs, a re-latchable arpeggiator, and a 16 x 4 step sequencer. Its voice also comes packed with 20 modulation sources and almost 50 destinations!
FM the filter to create metallic bell-like sounds and use the feedback path to add subtle or destructive harmonic content to your sound. Mopho x4’s 100% analog signal path is powerful, monstrous, and sonically dynamic!
Work Less, Play More

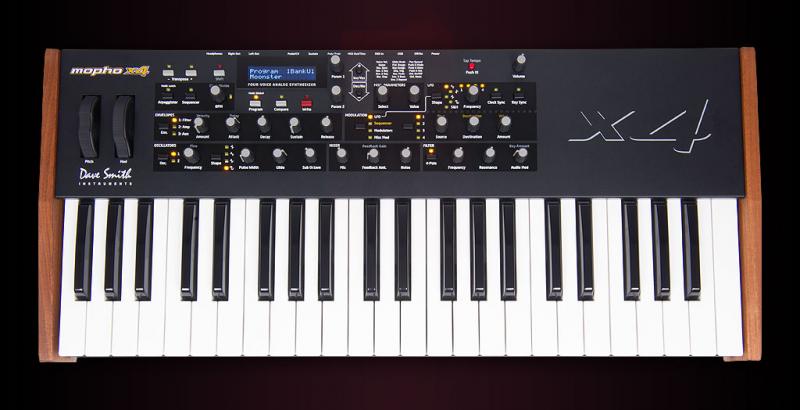

Mopho x4 is intuitive and inviting. Every parameter is fully programmable and editable from the front panel. The controls are logically laid out, lending themselves to quick access so you can tweak knobs without missing a beat.
The x4’s full sized 44-note semi-weighted keyboard has aftertouch and velocity sensitivity. The sturdy full sized pitch and mod wheels are freely assignable and sport smooth reliable action.
It Grows with You

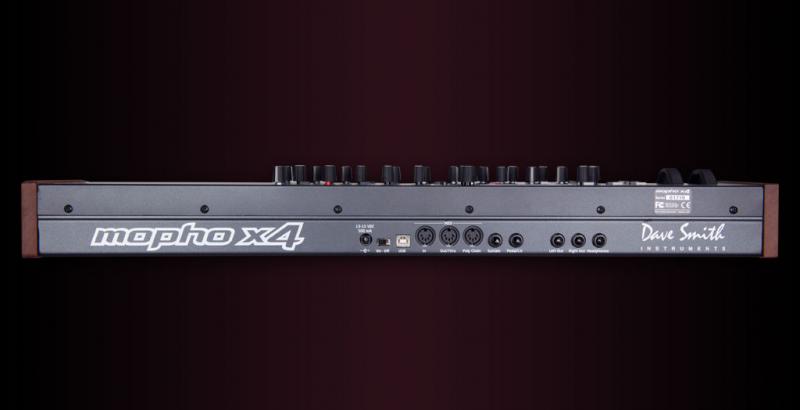

Expand Mopho x4’s polyphony using it’s Poly Chain port. Mopho, Tetra, and Prophet ’08 can all be connected to the x4 to increase its voice count. You can Poly Chain up to three Tetras with Mopho x4 to create a 16 voice analog super synth!
The Mopho x4!
Dave Smith Instruments is the only company pioneering and producing fully programmable polyphonic analog synthesizers. In fact Dave’s been at it for 35 years!
Designed and manufactured in San Francisco, Mopho x4 has the high quality sound and build for which DSI is renowned. From its feature packed analog voices and unmatched sonic versatility to its refined design and engaging interface, you won’t find a polyphonic analog synthesizer like this anywhere else.
|Brand||Dave Smith Instruments (DSI)|
|LFO||4 LFOs with triangle, saw, reverse saw, square, random|
|Engine Detailed||2 DCOs, 2 Suboscillators. sawtooth, triangle, saw/triangle, and variable pulse width square waves, with hard sync|
|Filter (VCF)||24 or 12 dB/oct selectable lowpass with ADSR|
|Envelope (VCA)||1 Analog VCA; 3 ADSR Envelopes w/Delay (VCA, VCF, Assignable)|
|FX||Feedback (routes output back into input!), Glide/portamento.|
|Memory||512 user patches|
|Sequencer||Gated 16-step sequencer (one sequence per program). 4x sequences per patch. Up, Down, Up/Down, Order Played|
|Extra info||Poly Chain|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
