DSP Synthesizers | Tiny-TS |
|

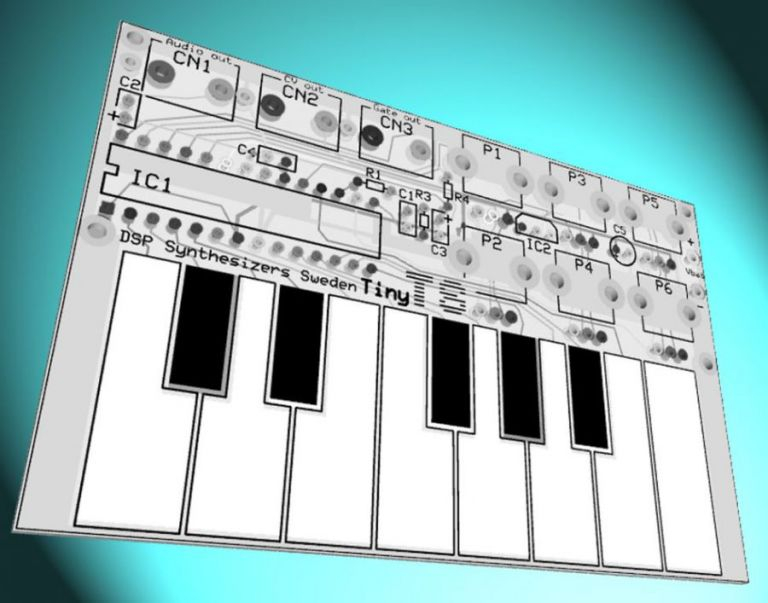

Description | The Tiny TS is a credit card sized (100x65mm) fully open-sourced synthesizer with a 1-octave capacitive touch keyboard. It has Audio/CV/Gate outputs and 6 synth parameter dials. If you don’t like the onboard sound of the synth, the CV’s output 1V/oct and Gate from the keyboard so teams well with my other oscillator chips. This will be this christmas DIY kit to play with. The synthesizer parameter knobs are: DCO: Coarse pitch and Double. The CV out follows the keyboard and coarse pitch. DCF: Filter peak and ENVmod. ENV: Attack and Release affecting amplitude. |
| Brand | DSP Synthesizers |
| Model | Tiny-TS |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | DCO |
| Voices (max) | 1 |
| Multitimbral | 1 |
| Oscillators | 1 |
| Engine Detailed | 1 DCO |
| Filter (VCF) | 1 24dB Slope (4-pole), Low Pass |
| Envelope (VCA) | AR |
| Keys | 13 |
| Key type | Touch pads |
| Velocity | N |
| Aftertouch | N |
| CV-gate | CV/Gate O |
| Produced: | 2017 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
