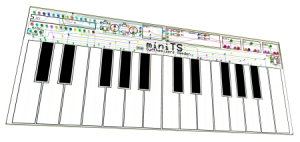

DSP Synthesizers | Mini-TS
|The Tiny-TS got bigger!
Say hello to the pocket WASP.
It now features a 2 octave touch keyboard in 165x65mm.
Still the same great synth engine, CV/Gate output and now also added MIDI IN/OUT.
The mini-TS can be built in a number of configurations depending on if you want to use it as a synth, CV controller or MIDI controller.
Clickable rotary encoder and 128×32 graphic OLED display for parameter entry.
3.5mm Stereo jack audio output.
3.5mm Stereo Jack for CV 1volt/octave output and 1 CV input.
3.5mm Stereo jack for Gate output and 1 CV input.
PCB pads for MIDI Rx & Tx signals.
(The stereojacks are TRS-type so the CV inputs are on the ring.)
It will be open-source just like the Tiny-TS.
|Engine Detailed||1 DCO|
|Filter (VCF)||1 24dB Slope (4-pole), Low Pass|
|Key type||Touch pads|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
