DSP Synthesizers | Micro-TS
|If you think the Tiny-TS is small then think again.

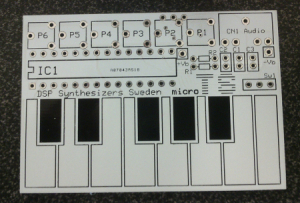

The Micro-TS is keyfob sized, 61x41mm but still features the same specs as the Tiny-TS.
It runs on 3V so a CR2016 button cell works just fine.
The analog knobs have a trim potentiometer footprint.
Output is a 3.5mm stereo headphone jack.
It still has CV/Gate outputs but they are just pads on the PCB edge.
|Engine Detailed||1 DCO|
|Filter (VCF)||1 24dB Slope (4-pole), Low Pass|
|Key type||Touch pads|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
