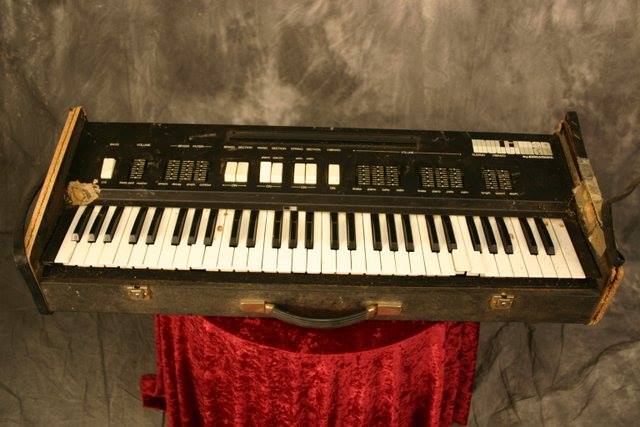

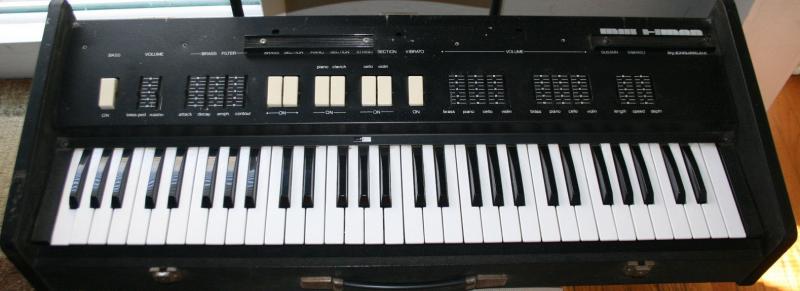

Description | The Multiman from Crumar is a piano and string synthesizer. It features 6 sounds Brass, Piano, Clavichord, Cello, Violin, and, bass. The unit features a basic VCO controlled filter for the brass section and a 61 key keyboard. It was a great solution for the gigging keyboardist to cover a lot of the synth bases of it's day. |
| Brand | Crumar |
| Model | Multiman |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO Preset |
| Voices (max) | 49 |
| Multitimbral | 6 |
| Oscillators | 6 |
| LFO | Vibrato with Speed and Depth |
| Engine Detailed | 6 Sounds: Brass, Piano, Clavichord, Cello, Violin and Bass. On/Off switches for every sound |
| Filter (VCF) | Brass Filter with Attack, Decay, Cutoff, Resonance. Highpass String Filter |
| Envelope (VCA) | Sustain length |
| Memory | 6 Sounds: Brass, Piano, Clavichord, Cello, Violin and Bass |
| Controllers | Expression Pedal for the filter. Accepts Crumar's 13-note Foot Pedal keyboard. |
| Keys | 61 |
| Key type | Keys |
| Velocity | No |
| Aftertouch | No |
|
Produced: | 1975 - 1975 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
