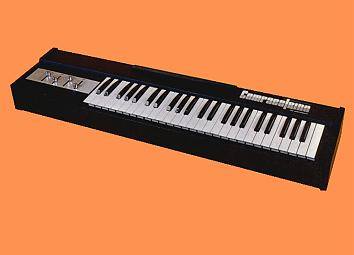

Crumar | Compac-String |
|
Description | Building on the success of the Compac-Piano, the Crumar builds a keyboard of small size dedicated solely to the playing of string lines. The machine is equipped with a keypad with 49 buttons, from a switch to 4 knobs and an expression pedal. The control block includes the overall output volume, the knobs of solo violin music section with extension into quarters (4') of the eighth, the knobs of the cello section with musical extension into eighths (8') of the eighth, the cursor (sustain) to set the depth and thus the length of the sound produced; very useful for overall effects. In the back of the cabinet there is a fifth knobs for the overall tuning while the accessories are sold as optional. |
| Brand | Crumar |
| Model | Compac-String |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 49 |
| Oscillators | 1 |
| Engine Detailed | 1VCO pre-shaped for Strings. |
| Envelope (VCA) | Sustain |
| Keys | 49 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| Audio | Mono out |
| Produced: | 1973 - 1973 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
