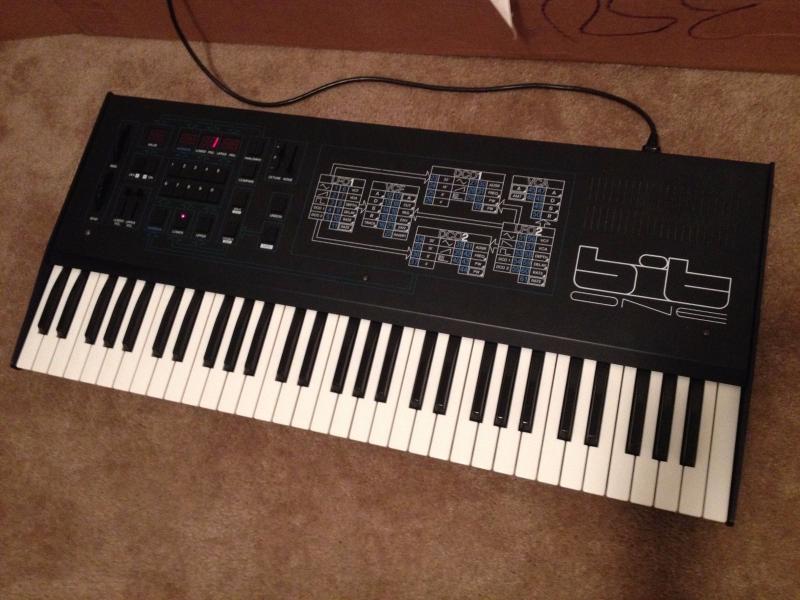

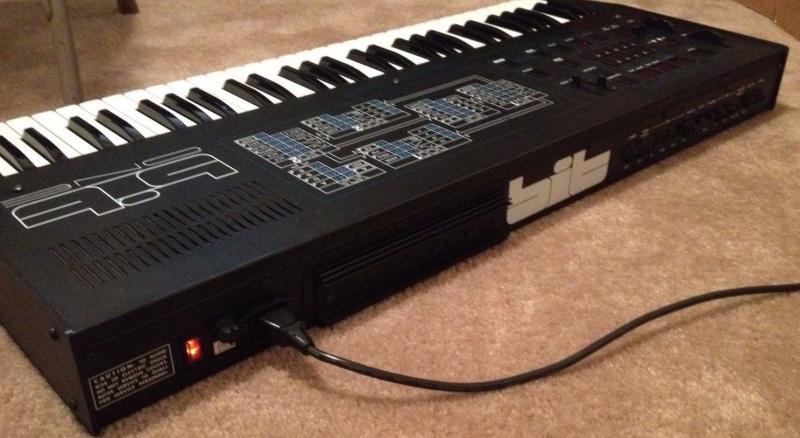

|The Bit One is a 6 voice programmable polyphonic analog synthesizer with digital control that rivals the Roland Juno-106 synthesizer. The 61-note keyboard is equipped with velocity which is a rare option among similar synths! The 2 computer controlled oscillators, 6 voltage controlled filters, 6 VCAs and 2 LFOs each per voice, easy hands-on editing and a double/split mode keyboard make this one phatt analog polysynth! A few let-down features of the Bit One stand in the way of an otherwise great synth. The MIDI implementation is useable but poor and there are only 63 memory patches.
|LFO||2 LFO's (triangle, ramp and square waveforms)|
|Engine Detailed||2 DCOs per voice (triangle, sawtooth, pulse waveforms, noise)|
|Filter (VCF)||VCF Resonant filter with ADSR per voice|
|Envelope (VCA)||VCA ADSR envelope per voice|
Produced:||1984 - 1986
||Y: Yes, N: No, N/A: Not Applicable
||Voltage Controlled Oscillator
||Digital Controlled Oscillator
||Low Frequency Oscillator
||Voltage Controlled Filter
||Voltage Controlled Amplifier
||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.
||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
