Clavia | Nord Piano

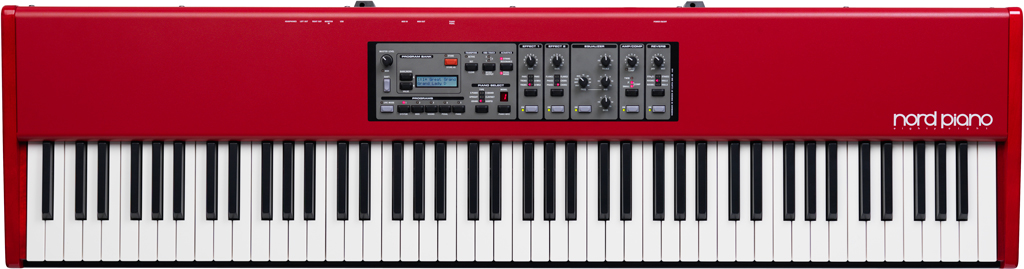

The Nord Piano 88 is a professional stage piano with 88 keys, designed with the performing musician in mind without compromising quality or means of expression.

The Nord Piano comes loaded from the factory with 19 different piano and harpsichord sounds. The program memory is filled with 120 programs that showcase the possibilities you have with the selection of pianos and the Nord Piano effects.

Click here for a view of the Nord Sound Manager window with the Nord Piano factory setup. Additional sounds are available for free on the included DVD or in the V5 Piano Library area on this website.

Acoustic, electric, vintage or contemporary piano sounds - it's all here. And with unique features like String Resonance, totally replaceable sounds from the extensive Nord Piano Library and the dynamic Nord Piano Pedal, the Nord Piano delivers in every aspect.

Not only can you effortlessly change the sounds and dial in the desired effect settings on the panel, the Nord Piano is the world's first stage piano that allows you to completely replace the piano sounds in the instrument.

When your needs, or your mood changes, just download another piano from the large selection of unique sounds in the Nord Piano Library.

Exchanging the piano sounds inside your Nord Piano is easy. Connect the piano to your computer using the built-in USB-interface and your choice of sound is simply a matter of preferred style.

Perhaps the acoustic Grand Lady would suit your taste this morning? Or maybe one of the smaller, more intimate acoustic upright pianos is a better choice? Why not fit a vintage Sparkletop electric piano too, and you'll be ready for the jazz gig later tonight.


String Resonance is the acoustic phenomenon that occurs inside an acoustic piano or a grand piano when strings, or parts of strings, resonate at their fundamental or harmonic frequencies when other strings are played.

When this functionality is turned on using the Nord Piano's acoustic pianos, all notes you play will affect each other to reproduce the wonderful acoustics that occurs inside an acoustic grand or upright piano.

The String Resonance is very noticeable if you use the sustain pedal with the String Resonance feature enabled. The notes that you play will have a beautiful sound quality to them, when all the un-dampened strings resonate as you play sustained notes.

Another thing that the String Resonance produces is a crescendo effect. If you play the same key repeatedly with the same force, the sound will change over time. This is originally caused by the hammers hitting the vibrating string in various phases, and creates a nice, gentle fluctuation in volume and timbre in the Nord Piano.

For rock and pop music, when sometimes a more dry and direct sound is desired, simply turn off the String Resonance. Sometimes less is more

Easy to access programs

There are 120 programs in the Nord Piano. These are accessed by 24 banks with 5 programs each, with convenient program buttons located right on the panel where you need them during your performance. You edit the programs by just changing the parameters on the panel, and all the changes you make can be stored in any program location by using the Store button.

The Nord Piano has a Live Mode with 5 separate locations, where every setting you change are automatically stored. This is a great feature during rehearsals when you are getting the set list ready, or as a sketchpad for those great programs, that are still to come.

Every program can be given a name; you enter the name from the Nord Piano panel or by using the Nord Sound Manager. Along with the program name, the piano model used will be displayed in the LCD. Parameter values and menu settings will be shown when applicable.


With the Transpose feature, you can set a transposition value between -6 and +6 semitones, directly from the panel. This setting will be saved in the programs if you want to make this an integrated part of your parameter selection. There is an additional global transpose setting in the system menu that can be combined with the panel transpose.

The Kbd Touch feature enables you to alter the response from the keyboard. There are four curves available. These make it progressively easier for you to reach the maximum velocity from the Nord Piano keyboard. This can make a huge difference when you want that special touch on an electric piano, or if you hit a bad patch of wrist fatigue during an intense show.

All of the acoustic pianos in the Nord Piano Library are stereo pianos. If you use a mono amplifier or sound system, sometimes it is preferable to playback the sounds in mono. This can be achieved by using the Mono feature that is directly accessed from the panel.


ModelNord Piano
Engine TypeDigital
EnginePCM, Sample
Voices (max)60
Engine DetailedPiano and Nord sample engine
Envelope (VCA)AR
FXEffect 1 - Pan, Tremolo, Auto-wah (stereo) Effect 2 - Phaser, Flanger and Chorus (stereo) Delay - Stereo delay effect with Tap Tempo button Three band EQ, with sweepable mid Compressor/Amp - Twin, JC, Small (mono), Tube distortion (stereo) and compressor (stereo) Reverb with six algorithms - Room 1 & 2, Stage 1 & 2, Hall 1 & 2
Memory120 Patches
Key typeKeys, Hammer action
AudioStereo out
MidiI-O, USB
Produced:2010 - 2012
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
