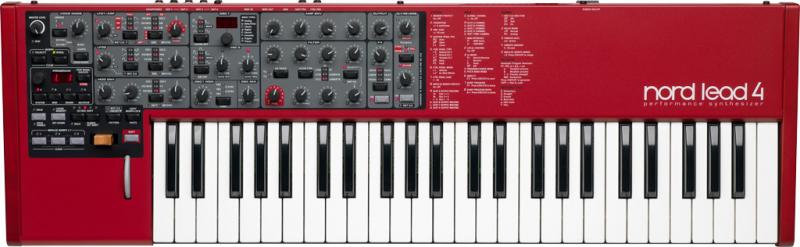

Description | The Nord Lead 4 is the successor of the Nord Lead 3. With new performance features, advanced layering and synchronization possibilities, new filter types and on-board effects.
|
| Brand | Clavia |
| Model | Nord Lead 4 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | VA |
| Voices (max) | 20 |
| Multitimbral | 4 |
| Oscillators | 2 |
| LFO | 2 Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle, Clocked, Key Sync |
| Noise | Y |
| Engine Detailed | 2 Pulse Variable, Saw Up, Sine, Square, Triangle, Wave Table, White Noise |
| Filter (VCF) | 2 12dB Slope (2-pole), 24dB Slope (4-pole), 48dB Slope (8-pole), Band Pass, High Pass, Low Pass, Notch, Resonance |
| Envelope (VCA) | ADSR envelopes for amplitude and filter; Amplifier Gain control |
| FX | Drive/Modulation control. Crush, Drive, Talk effects, Compressor and Comb Filter.
Delay: up to 1400 ms with clock sync.
Reverb: Room, Stage, Hall with adjustable brightness. |
| Memory | 4x99 RAM patches, 99 RAM Multipatches |
| Arpeggiator | up, down, up/down, random, poly |
| Keys | 49 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | No |
| Midi | I-O, USB |
|
Produced: | 2014 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
