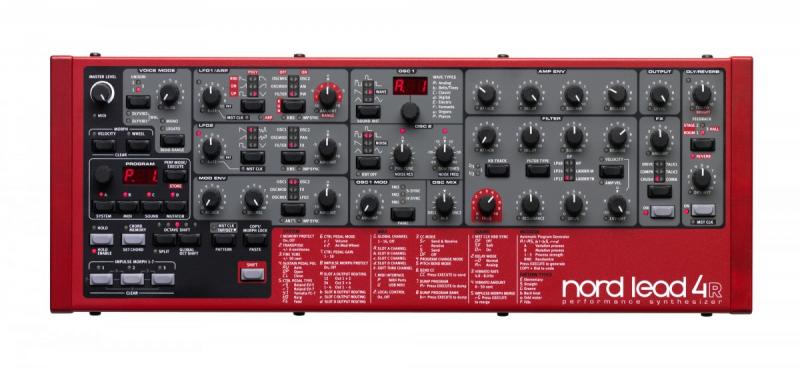

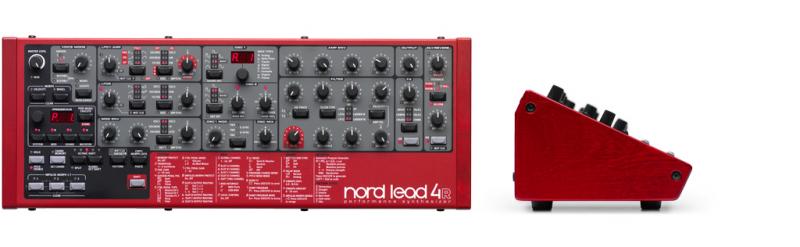

The Nord Lead 4 Rack is the successor of the Nord Lead 3 Rack. With new performance features, advanced layering and synchronization possibilities, new filter types and on-board effects.
|Model||Nord Lead 4 Rack|
|LFO||2 Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle, Clocked, Key Sync|
|Engine Detailed||2 Pulse Variable, Saw Up, Sine, Square, Triangle, Wave Table, White Noise|
|Filter (VCF)||2 12dB Slope (2-pole), 24dB Slope (4-pole), 48dB Slope (8-pole), Band Pass, High Pass, Low Pass, Notch, Resonance|
|Envelope (VCA)||ADSR envelopes for amplitude and filter; Amplifier Gain control|
|FX||Drive/Modulation control. Crush, Drive, Talk effects, Compressor and Comb Filter.
Delay: up to 1400 ms with clock sync.
Reverb: Room, Stage, Hall with adjustable brightness.|
|Memory||4x99 RAM patches, 99 RAM Multipatches|
|Arpeggiator||up, down, up/down, random, poly|
||Y: Yes, N: No, N/A: Not Applicable
||Voltage Controlled Oscillator
||Digital Controlled Oscillator
||Low Frequency Oscillator
||Voltage Controlled Filter
||Voltage Controlled Amplifier
||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.
||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
