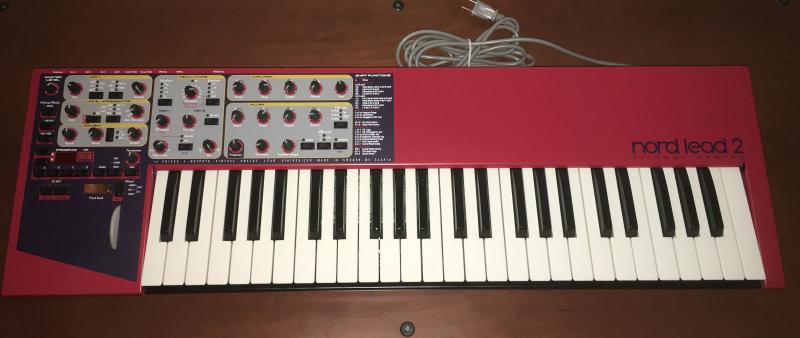

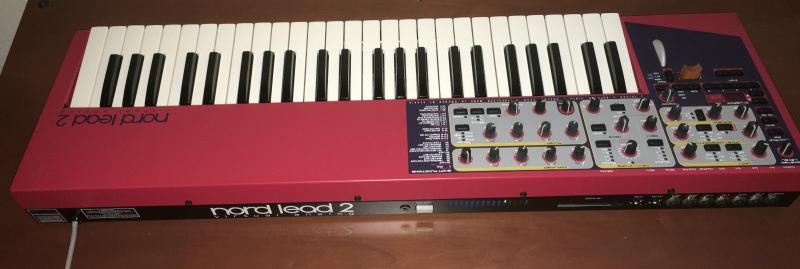

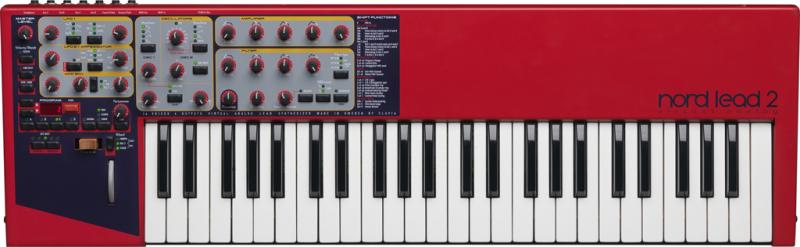

Description | The Nord Lead synthesizer is taken a few steps further with the Nord Lead 2. It uses the same synthesis technology and sounds as good as the Nord Lead, but adds a few nice new touches. These features include a ring modulator, OSC 1 can sync with the white noise generator, increased LFO and arpeggiator waveforms and patterns, distortion in the squelchier punchier filter section and 4 individual outputs.
All the great sound, MIDI control and analog-like sound and design that made the Nord Lead famous return in this new and improved version.
|
| Brand | Clavia |
| Model | Nord Lead 2 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | VA |
| Voices (max) | 12 |
| Multitimbral | 4 |
| Oscillators | 2 |
| LFO | 2 LFO's (triangle, sawtooth, random) control OSC 1 or 2, filter, pulse-width, ADSR envelope |
| Noise | Y |
| Engine Detailed | 2 VSM oscillators: sine, triangle, sawtooth, pulse and noise |
| Filter (VCF) | 12 dB/oct 2-pole lowpass, 24dB/oct 4-pole lowpass / bandpass / highpass (both with cutoff, resonance, env amount, env velocity, key tracking, ADSR envelope) |
| Envelope (VCA) | ADSR envelope and Amplifier Gain control |
| Memory | 99 patches (59 preset, 40 user), 99 performances, 10 drum kits |
| Keys | 49 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | No |
| Midi | I-O-T |
|
Produced: | 1997 - 1997 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
