Ciat Lonbarde | Squishable


As the designer describes: Meng Qi based on Peter Blasser Siddrassi board.

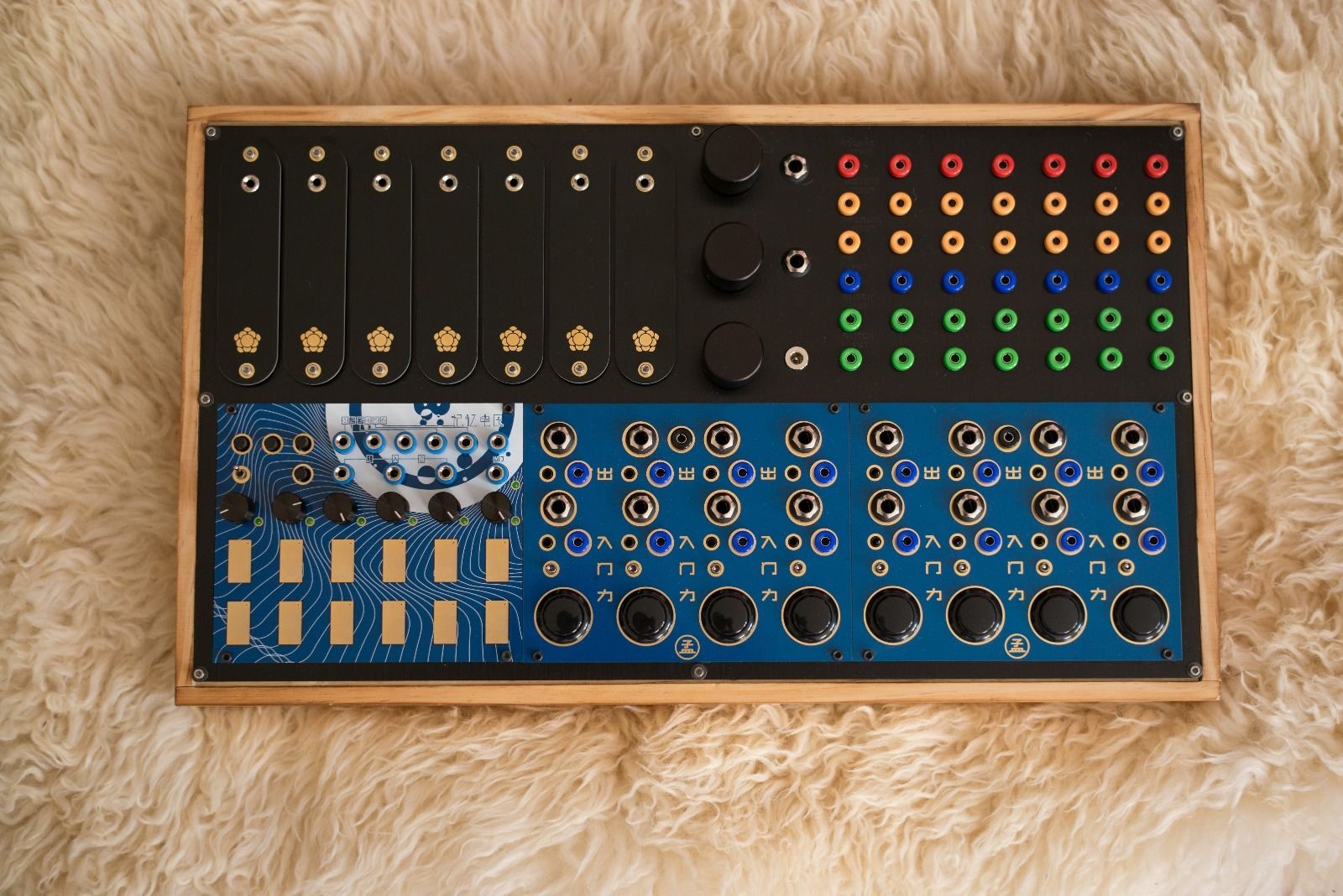

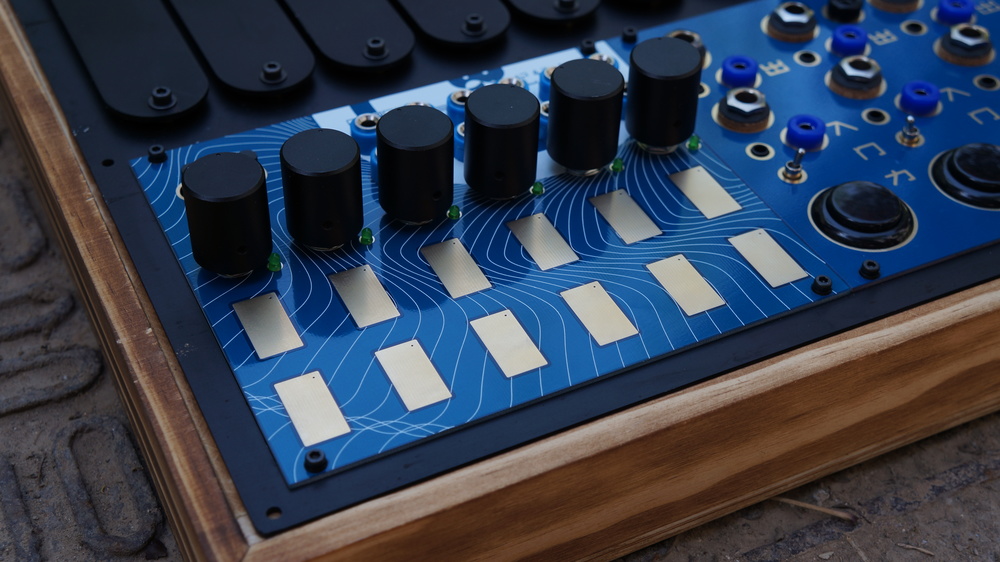

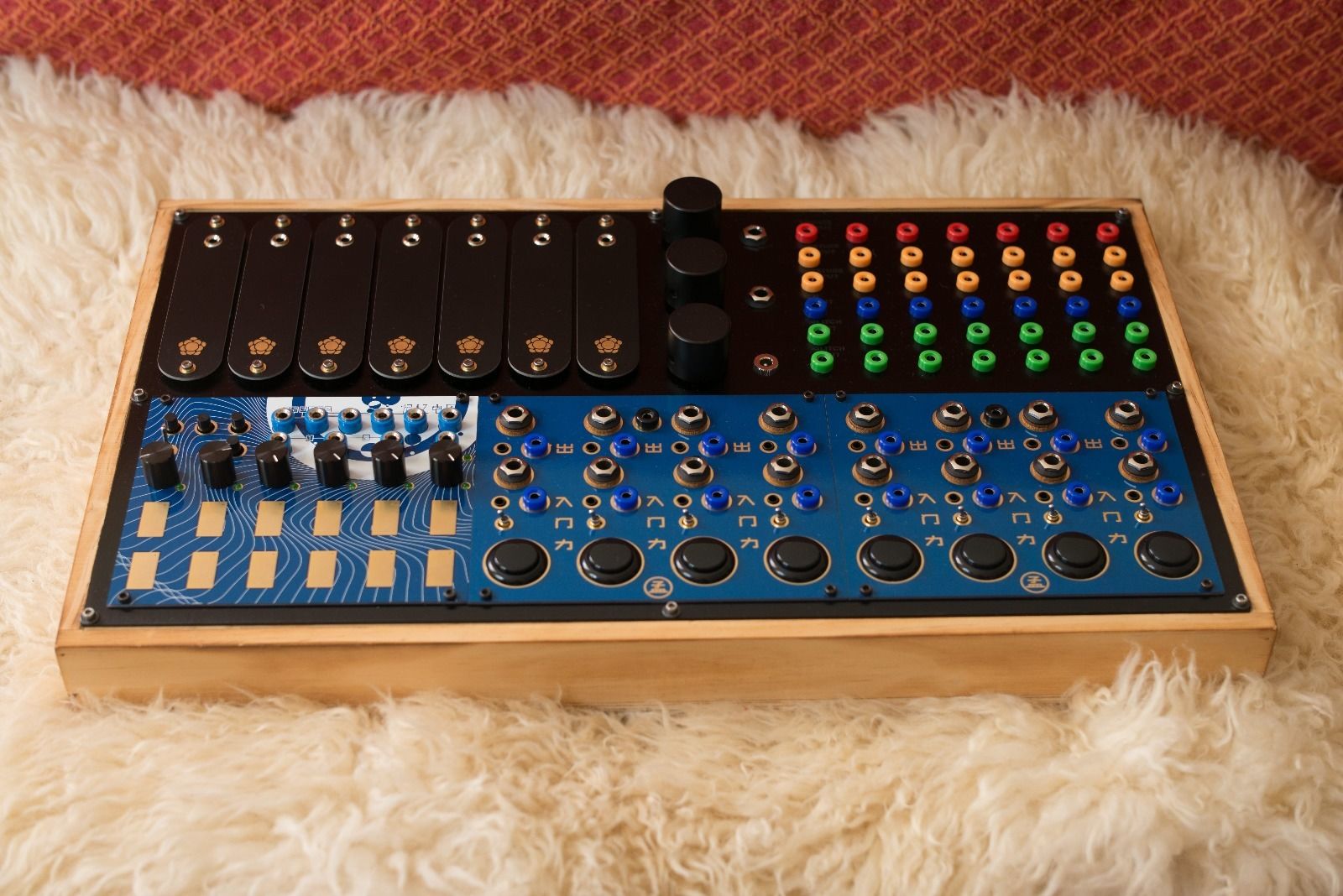

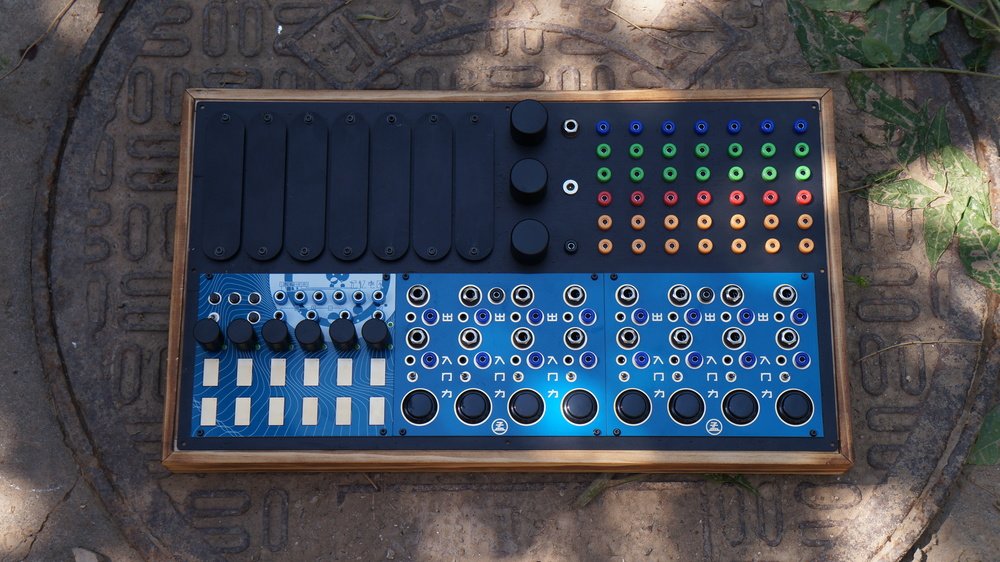

Squishable Modular Synth Workstation is a self-contained modular synth instrument. It has 3 parts that are all essential to the playing and composing experience.

Sidrassi is an analog modular synthesizer with 7 independent voices, each voice has 6 CV patch points (FM in / glitch in 1 / glitch in 2 / squarewave out / gesture out 1 / gesture out 2), you can modulate each voice with audio signal and gesture signal from other voices to make your own performing interface. Sidrassi is designed by Peter B ( and Squishable uses Peter’s original PCB.

VM (Voltage Memory) is interally connected to control pitch of 4 voices / main pitch / timber of Sidrassi. It provides save/recall feature, and it offers a vast number of modularized recalling methods. Thanks to it, Squishable can save 84 sets of tuning, so you can play complex chords, melodies and tonal music pieces. As well as complex automated pitch changes controlled internally or externally .

2 of AM (Arcade Manifold) provide a very versatile realtime re-patching and mixing system. And the format jumber feature allows Squishable to be connected to external modular system with ease*. Thanks to them, Squishable allows composers and players to travel anywhere between angelic triangle choir and demolic modulated chaos in absolute realtime, as well as connecting your Squishable to your other modular systems.

Designed based on Meng Qi’s vast experience of Sidrassi building.

*for safety of Squishable, please keep the incoming CV in 0-9v range.

BrandCiat Lonbarde
Engine TypeDigital
Voices (max)7
Engine Detailed6 OSC, Square, White Noise
Key typeTouch plates
CV-gateCV/Gate I-O
Extra infoOnly 1 made
Produced:2015 - 2015
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
