Cheetah | MS800 |
|

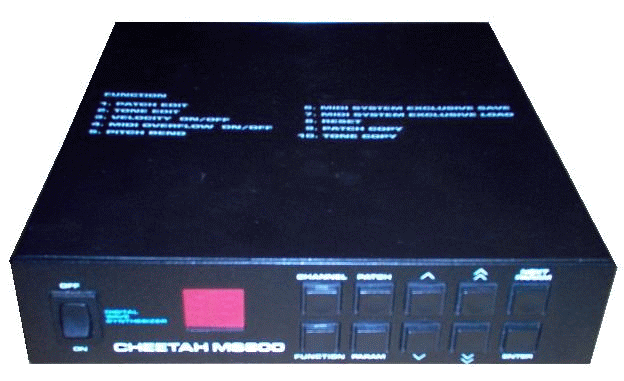

Description | The Cheetah MS800 Digital Wave Synthesizer was a digital rack mountable synthesizer module from UK company Cheetah released in 1989. Considered a very affordable synthesizer sound module, the unit offered 4 oscillators per voice with 256 factory preset sounds using a a variety of on board samples.Unfortunately for the user the interface made the unit difficult to program from the front panel. The savvy user would do well with a software editor or sysex box.Another feature the MS800 offered was a primitive way of doing wave sequencing similar to the Korg Wavestation but more so like the commodore 64 method from the late 1980's. |
| Brand | Cheetah |
| Model | MS800 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Digital |
| Engine | PCM, WT |
| Voices (max) | 16 |
| Multitimbral | 16 |
| Oscillators | 4 |
| Engine Detailed | PCM and Wave table |
| Memory | 100 ROM, 100 RAM |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
| Produced: | 1989 - 1989 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
