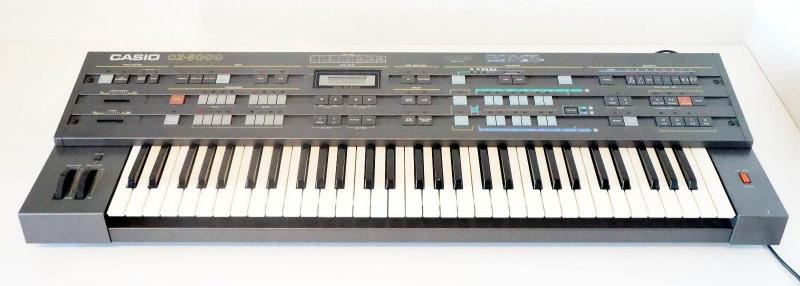

Description | The CZ-5000 expands the Casio CZ series further into the professional arena. Based on the CZ-101and CZ-1000 synths, the CZ-5000 adds many new features while retaining the same sound and programming methods as the latter. The keyboard is expanded to a full 61 note or 5-octave length and is capable of being split for bass and treble sounds. There is a built-in 8 track sequencer which is great for storing ideas or creating patterns and sequences to edit in real-time. And finally the CZ-5000 has an expanded waveform memory for even more sounds and thicker sounds. It's like having two stacked CZ-1000 synths all at once! |
| Brand | Casio |
| Model | CZ-5000 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | PD |
| Voices (max) | 16 |
| Multitimbral | 8 |
| Oscillators | 2 |
| Noise | Y |
| Engine Detailed | Digital Phase Distortion Synthesis (sine, saw, square, pulse, resonance, double-sine, saw-pulse) |
| Filter (VCF) | 8-stage envelope generators with level and rate controls and Key Follow (Adjusts Phase Angle) |
| Envelope (VCA) | 8-stage envelope generators with level and rate controls and Key Follow (Adjusts Volume) |
| FX | Chorus |
| Memory | 32 preset, 32 user patches |
| Recording | Sequencer: 8 track; 3400 steps in real-time, 6400 steps in step-time; no quantizing |
| Keys | 61 |
| Key type | Keys |
| Velocity | No |
| Aftertouch | No |
| Midi | I-O-T |
|
Produced: | 1985 - 1985 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
