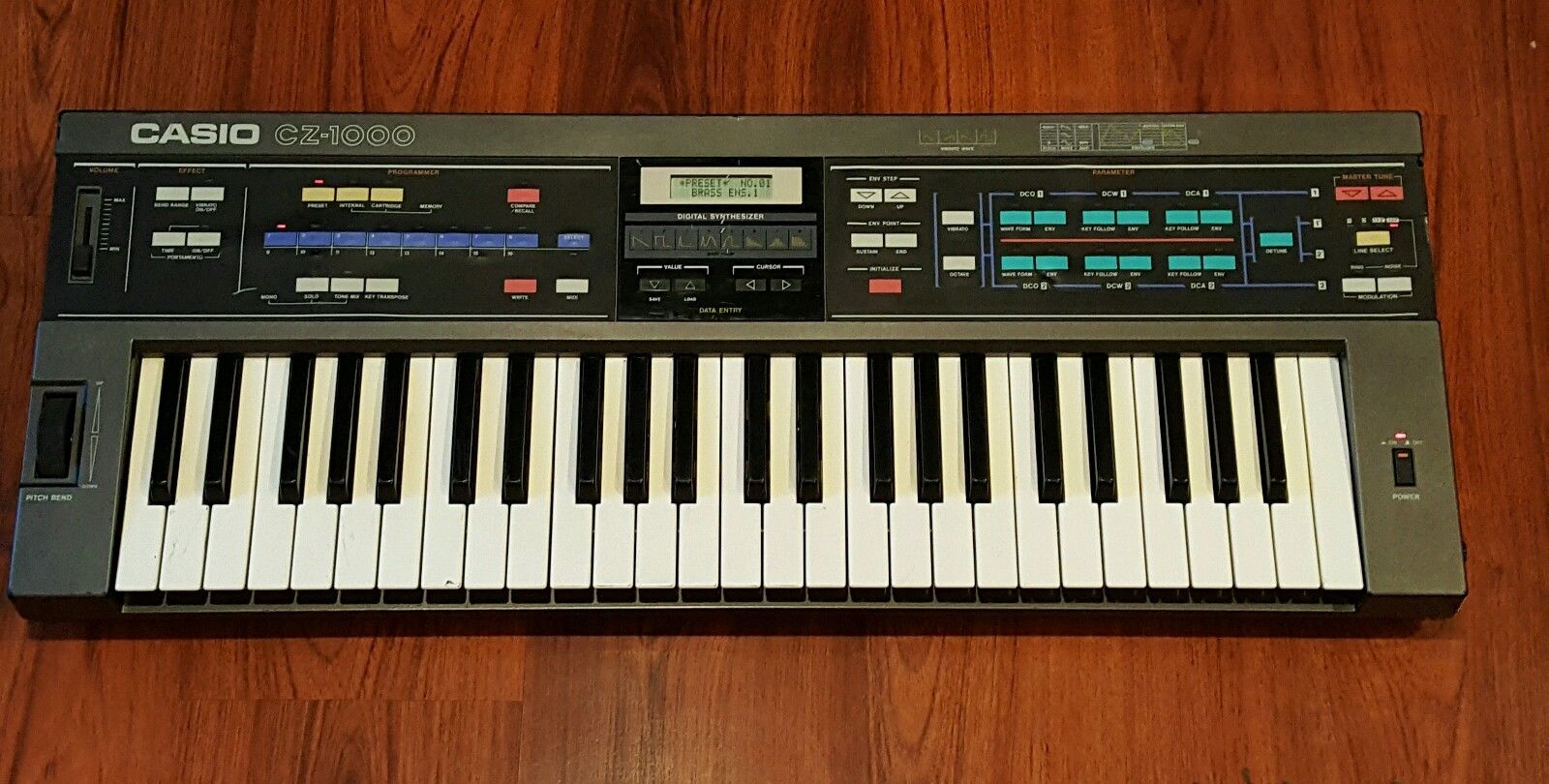

Casio | CZ-1000
Coming from Casio you might assume entry-level and that just about sums up the CZ-1000. Fortunately it's become known for having a surprisingly good 8-stage envelope. It also uses Phase Distortion (PD) synthesis so it is quite capable of some cool digital/analog sounds! PD is Casio's own take on digital synthesis from the mid-eighties and is found in all of their CZ series. You basically modify digital waveforms (sine waves) to create various sounds. It can create wild new sounds, notably percussive sounds. But it's not too easy to program if you don't know much about waveform theory and design.
Three sets of 8-stage envelope sections are used to modulate your sounds extensively. The first is used to modify the DCO pitches over time. Another 8-stage envelope section in the DCW is used to modify the Phase Angle over time (like filtering). Finally the DCA amplifier also has an 8-stage envelope to modify the volume of sounds over time. For further tweaking the CZ-1000 employs some surprisingly analog effects. Four types of Vibrato make up a simple LFO-type section with triangle, square, ramp up or down waveforms as well as rate, depth and delay settings. Portamento adds that classic glide effect from one note to the next. Double up on the oscillators with 4-note polyphony. Built-in noise and ring modulation. It's also MIDI equipped with 4 monophonic multitimbral parts. However, with only 32 patches (16 preset, 16 user) storage is a bit slim.
The CZ-1000 is a CZ-101 with full sized keys. It is succeeded by the CZ-3000 and CZ-5000 which really fatten up the synth and provide more professional features and looks. However the CZ-1000 is without a doubt the best low-cost means of truly useable sounds for pads and lead synth sounds.
|Engine Detailed||Digital Phase Distortion Synthesis (sine, saw, square, pulse, resonance, double-sine, saw-pulse)|
|Filter (VCF)||8-stage envelope generators with level and rate controls and Key Follow (Adjusts Phase Angle)|
|Envelope (VCA)||8-stage envelope generators with level and rate controls and Key Follow (Adjusts Volume)|
|Memory||16 preset, 16 user, 16 more via external cartridge|
|Produced:||1985 - 1985|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
