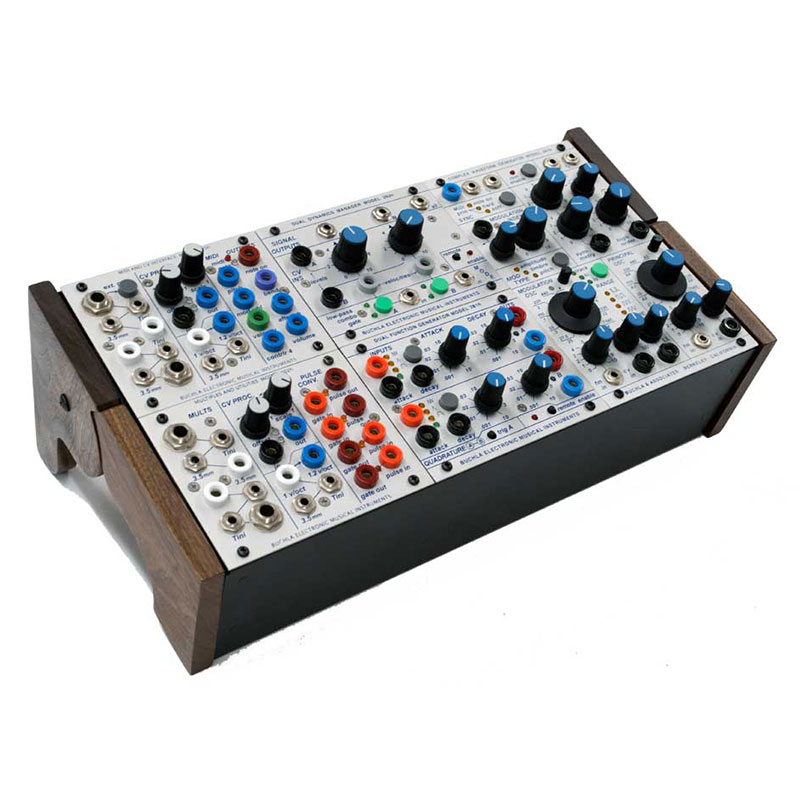

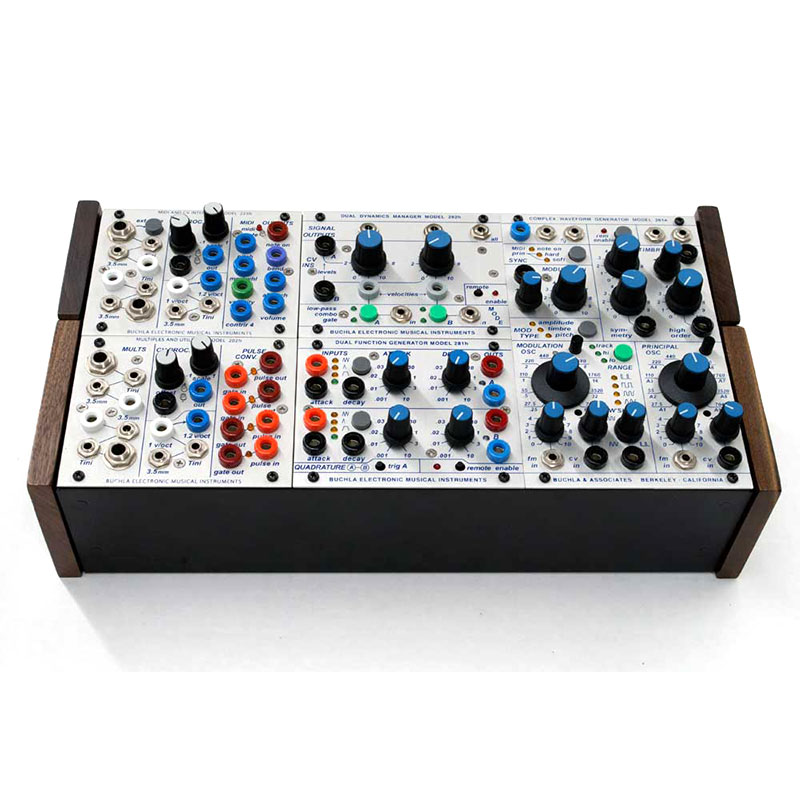

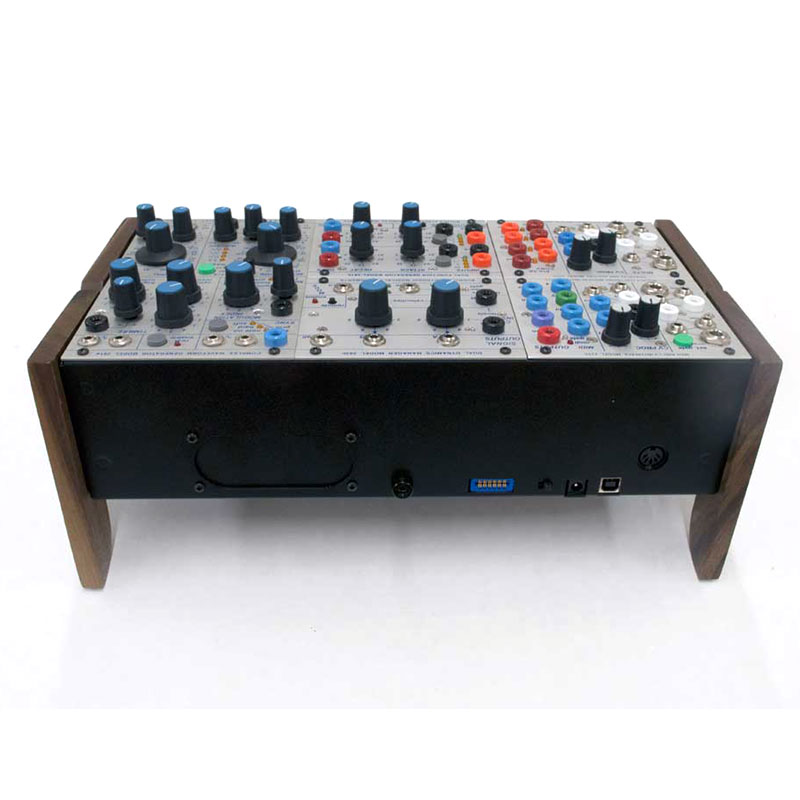

Description | Modular or Stand Alone Synth, with Dual Independent Oscillators, Dual Lowpass vactrol-based gate/ filters and Dual Function Generator. Snoopy can be played as a stand-alone instrument with its core Complex Waveform Oscillator, filter and VCA functions with amazing power in a compact design, or integrated into a larger complex system. With its Dual Lowpass Gate consisting of two independent vactrol-based gate/ filters in the classic Buchla format, Dual Function Generator with two independent envelope generators with VC attack and decay, and ability to cycle and perform as an LFO, MIDI, comprehensive CV and USB control to allow interfacing with all formats including EuroRack, and the most desirable and unique timbre in the pages of synthesiser history, Snoopy is Buchla Power for now and the future. |
| Brand | Buchla |
| Model | LEM4 Snoopy |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 2 |
| Multitimbral | 2 |
| Oscillators | 2 |
| LFO | 3 Envelope, Sample & Hold |
| Engine Detailed | 2, Sine, Triangle |
| Filter (VCF) | 2 24dB Slope (4-pole), Low Pass |
| Envelope (VCA) | 2 Attack, Decay, Looping, Triggered |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I, USB |
| CV-gate | CV/GATE |
|
Produced: | 2015 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
