Behringer | Model D

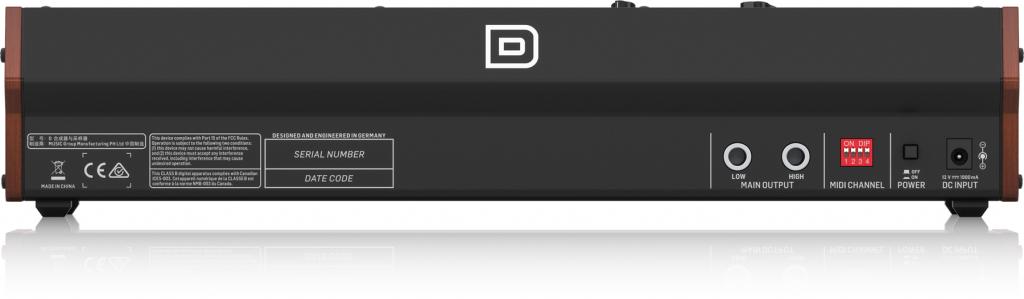

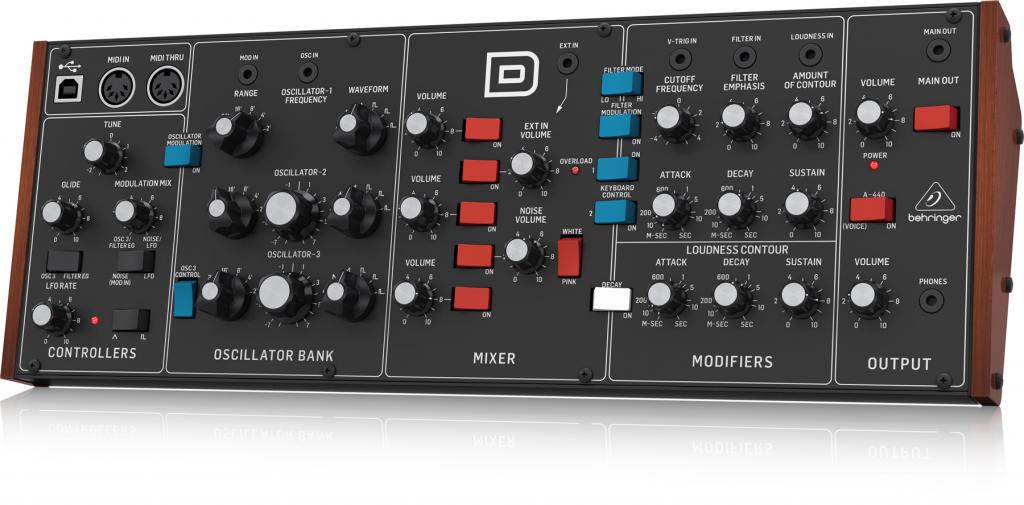

The Behringer D Analog Synthesizer is a clone of the Moog Mimimoog model D. It has MIDI and CV I-O which the original lacks.

It will have a Poly Chain feature that allows combining up to 16 synths through Midi.

Analog Synthesizer with 3 VCOs, 24 dB Ladder Filter, LFO, 16-Voice Poly Chain and Eurorack Format

1. Analog synthesizer with triple VCO design

2. Reproduction of original “D Type” with matched transistors and JFETs

3. 0.1% Thin Film resistors and Polyphenyline Sulphide capacitors for frequency stability

4. Analog signal path based on authentic VCO, VCF and VCA designs

5. 5 variable oscillator shapes with pulse width variation

6. Classic 24 dB ladder filter with resonance

7. Fully analog triangle/square wave LFO

8. Switchable low/high pass filter mode

9. 16-voice Midi Poly Chain allows combining multiple synthesizers for up to 16-voice polyphony

10. Overdrive circuit

11. Noise generator

12. Complete Eurorack solution – main module can be transferred to a standard Eurorack case

13. 46 controls for real-time access of all important parameters

14. External audio input for processing external sound sources

15. Low and high level outputs

16. Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

17. 3-Year Warranty Program
ModelModel D
Engine TypeAnalog
Voices (max)1
Engine Detailed3 VCO with several waveforms
Filter (VCF)24dB/oct, 4-pole lowpass filter with cutoff, resonance, envelope generator, keyboard tracking
Envelope (VCA)ADS Envelope generator
Key typeN/A
MidiI-O-T, USB
CV-gateCV/Gate I-O
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
