The Ultimate SynthDB | Analogue Solutions Telemark v2

Browse

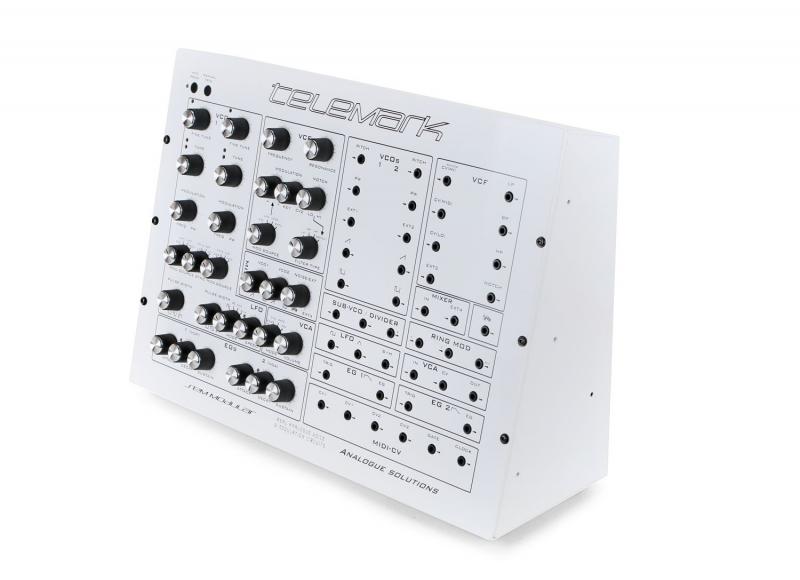

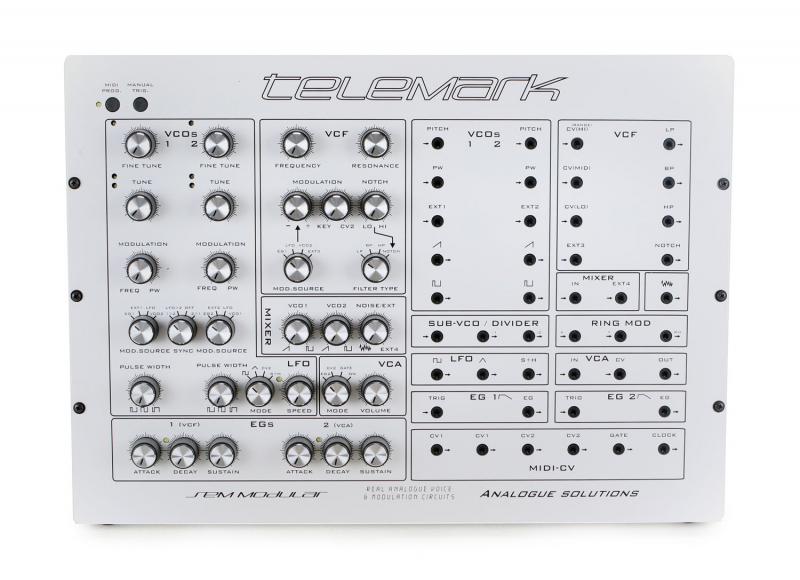

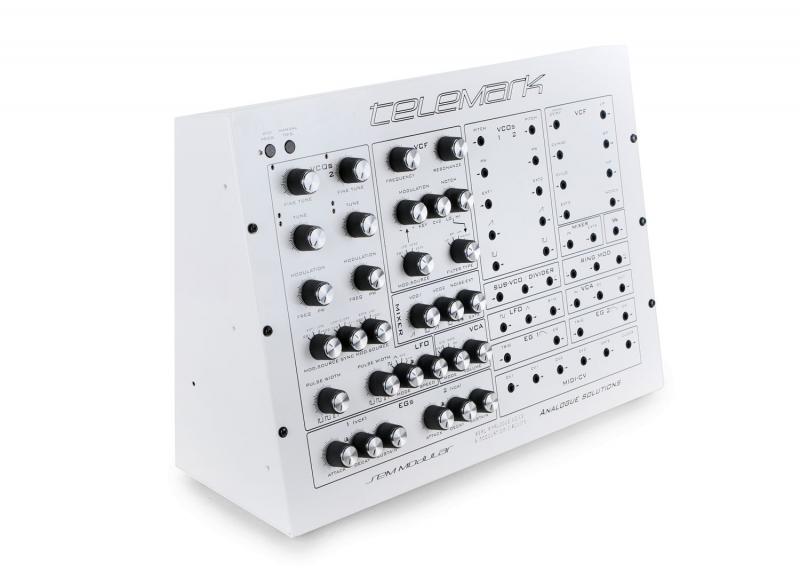

Description	Telemark is a rack mount version of the Semblance mononsynth with the addition of signal patch points. Will run from MIDI or sequence it the analogue way. Rack mount brackets are optional and not included. The patch points are 3.5mm with 5v range, one volt per octave. The Telemark is robust in frequency. There is a good amount of clarity in the filter. On the bottom end, the bass breaks up nicely at the right time. The bass frequency doesn’t resonate in the lofty or boomy territory but very acceptable for most recording environments and noticeably better than the typical modular VCO. The Telemark has a pleasing tone all of its own but would sound closest to the old Oberheim sound. The design is logically laid out and we adapted to it very quickly.
Brand	Analogue Solutions
Model	Telemark v2
Device	Synth
Type	Keys
Engine Type	Modular (Semi)
Engine	VCO
Voices (max)	1
Multitimbral	1
Oscillators	2
LFO	1 Triangle
Noise	Y
Engine Detailed	2 VCO Pulse Variable, Saw Up + White Noise
Filter (VCF)	1 12dB Slope (2-pole), Band Pass, High Pass, Low Pass, Notch, Resonance
Envelope (VCA)	2 ADS
Keys	37
Key type	Keys
Velocity	Y
Aftertouch	N
Audio	Mono out
Midi	I-T
CV-gate	CV and Gate I-O
Extra info	Midi to CV
Produced:	2014 - 2014

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
