Analogue Solutions | Telemark K


The Telemark-K provides exactly the same features as the Semblance, but with the addition of modular synth patch points. This in effect turns it into a semi-modular design and means it can be interfaced to other modules and synths very easily.

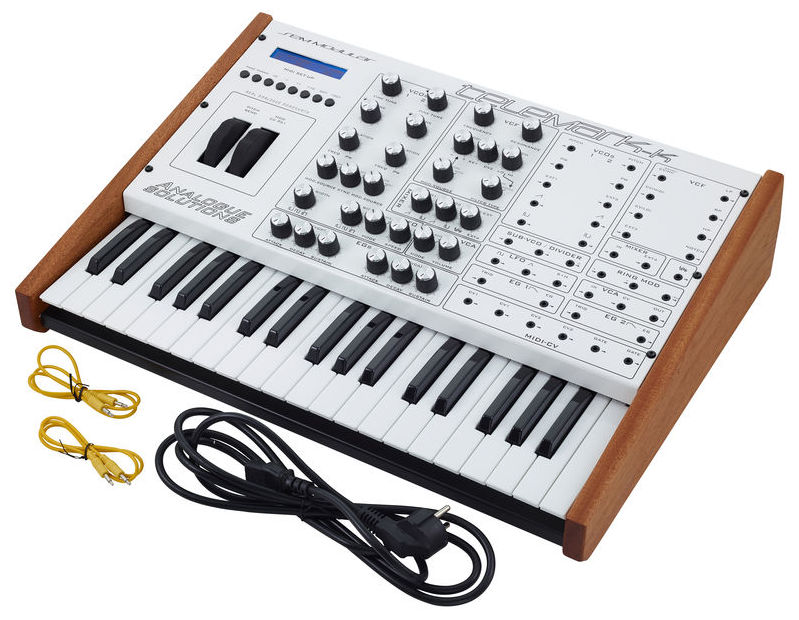

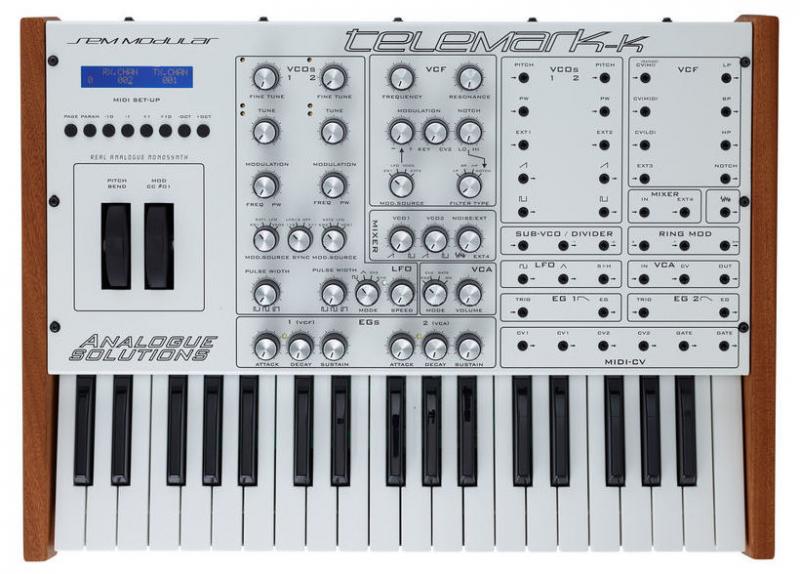

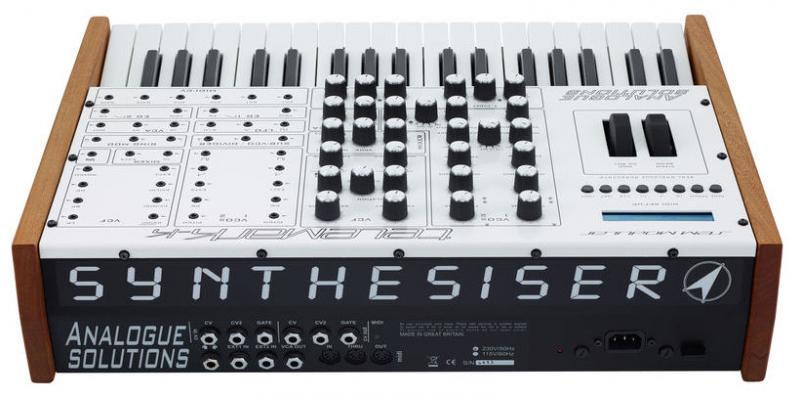

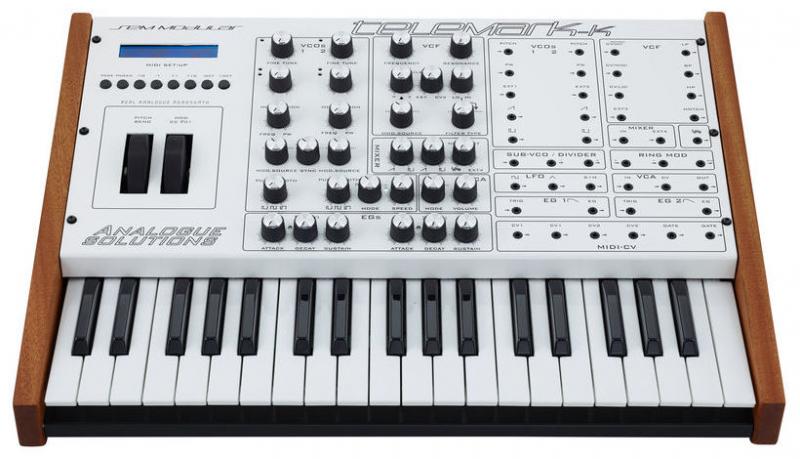

The Telemark-K is a sturdily made white metal wedge, populated on the left side of the panel by lots of knobs and a few LEDs. The right side is devoted to a series of 1/8" sockets designed to provide access to core points in the synth's signal path. The back panel has a small socket for the supplied external PSU, MIDI input/thru, as well as 1/4" jack sockets for the main audio output and 2 external audio inputs.

The Telemark-K is an easy-to-use and fine-sounding synth, which is capable of a wide range of sounds. It uses the patch panel to add another dimension and offers some great options for processing external audio as well as transforming the internal palette. The MIDI spec gives the Telemark the ability to respond to both note on/off and velocity information for VCA and VCF sections. The patch panel allows you to route these elsewhere should you need to and a MIDI controller can be assigned to modulation duties should you wish.

The Telemark-K is similar to original SEM but with Sample and hold, LFO square wave, noise, extra inputs, many more signal modulation options via rotary switches. It has a 37 key keyboard to make it a nice little synth.

BrandAnalogue Solutions
ModelTelemark K
Engine TypeModular (Semi)
Voices (max)1
LFO1 Triangle
Engine Detailed2 VCO Pulse Variable, Saw Up + White Noise
Filter (VCF)1 12dB Slope (2-pole), Band Pass, High Pass, Low Pass, Notch, Resonance
Envelope (VCA)2 ADS
Key typeN/A
AudioMono out
CV-gateCV and Gate I-O
Extra infoMidi to CV
Produced:2013 - 2013
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
