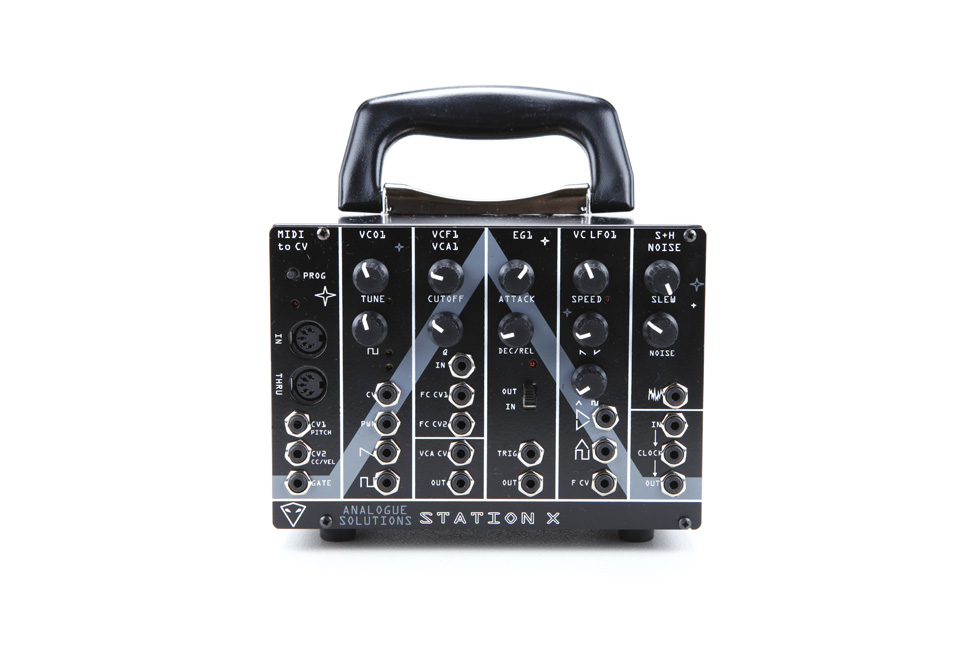

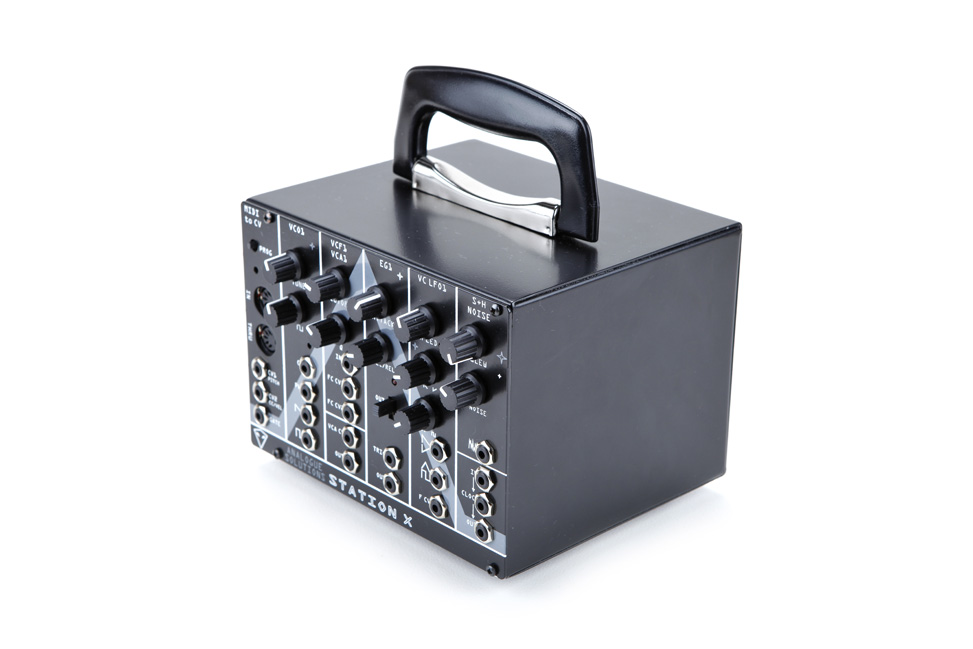

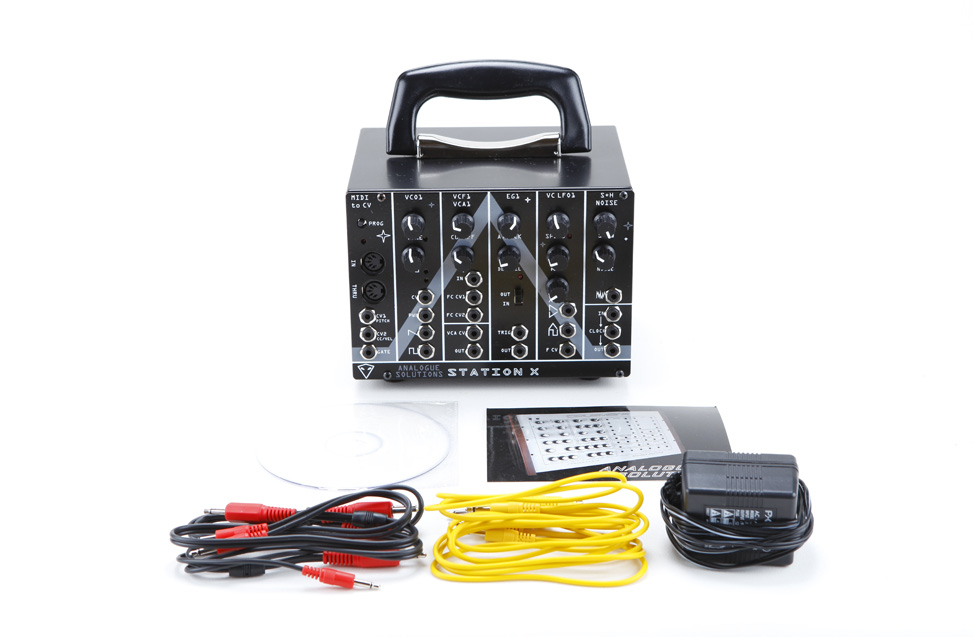

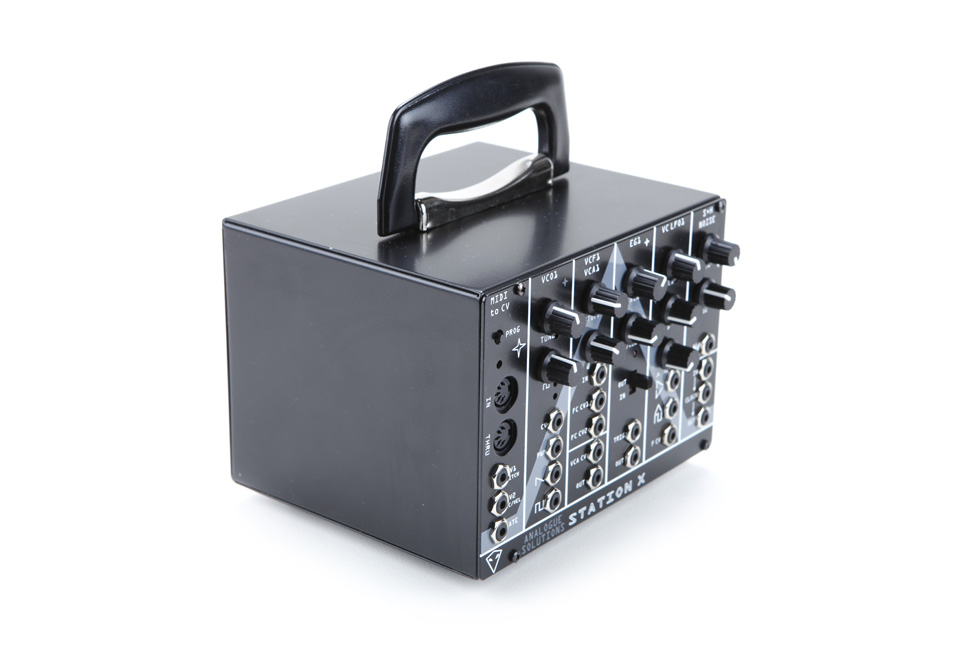

Description	Station X is a compact "mini-modular" synthesiser. It contains all the essential ingredients to form complete synth patches. Think of it as a mini Red Square or Tereshkova (two other, larger modular synths they produce). In fact, a mini Red Square is a good analogy. If has the same filter and similar key features (though Red Square is 2 VCO). Station X is ideal for beginners who want to dip their toes into the world of modular synths, the travelling producer who wants to take a true analogue modular synth around to different sessions, or home musician who perhaps is limited for space.
Brand	Analogue Solutions
Model	Station X
Device	Synth
Type	Desktop
Engine Type	Modular (Semi)
Engine	VCO
Voices (max)	1
Multitimbral	1
Oscillators	1
LFO	1 Sample & Hold, Square, Triangle
Noise	Y
Engine Detailed	1 VCO Saw Down, Square, PWM
Filter (VCF)	1 24dB Slope (4-pole), Low Pass, Resonance
Envelope (VCA)	ADR
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A
Audio	Mono out
Midi	I-T
CV-gate	CV I-O
Extra info	Midi to CV
Produced:	2010 - 2010

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
