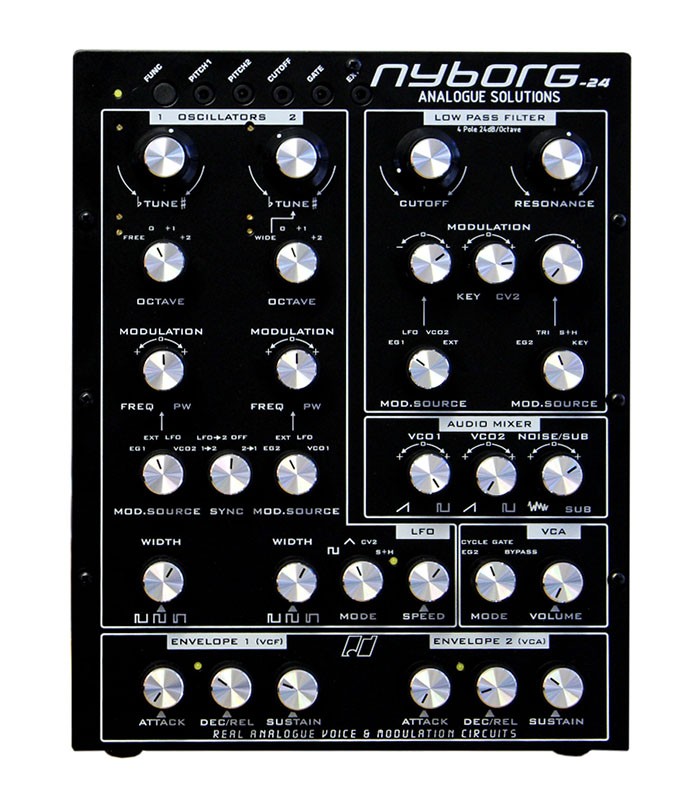

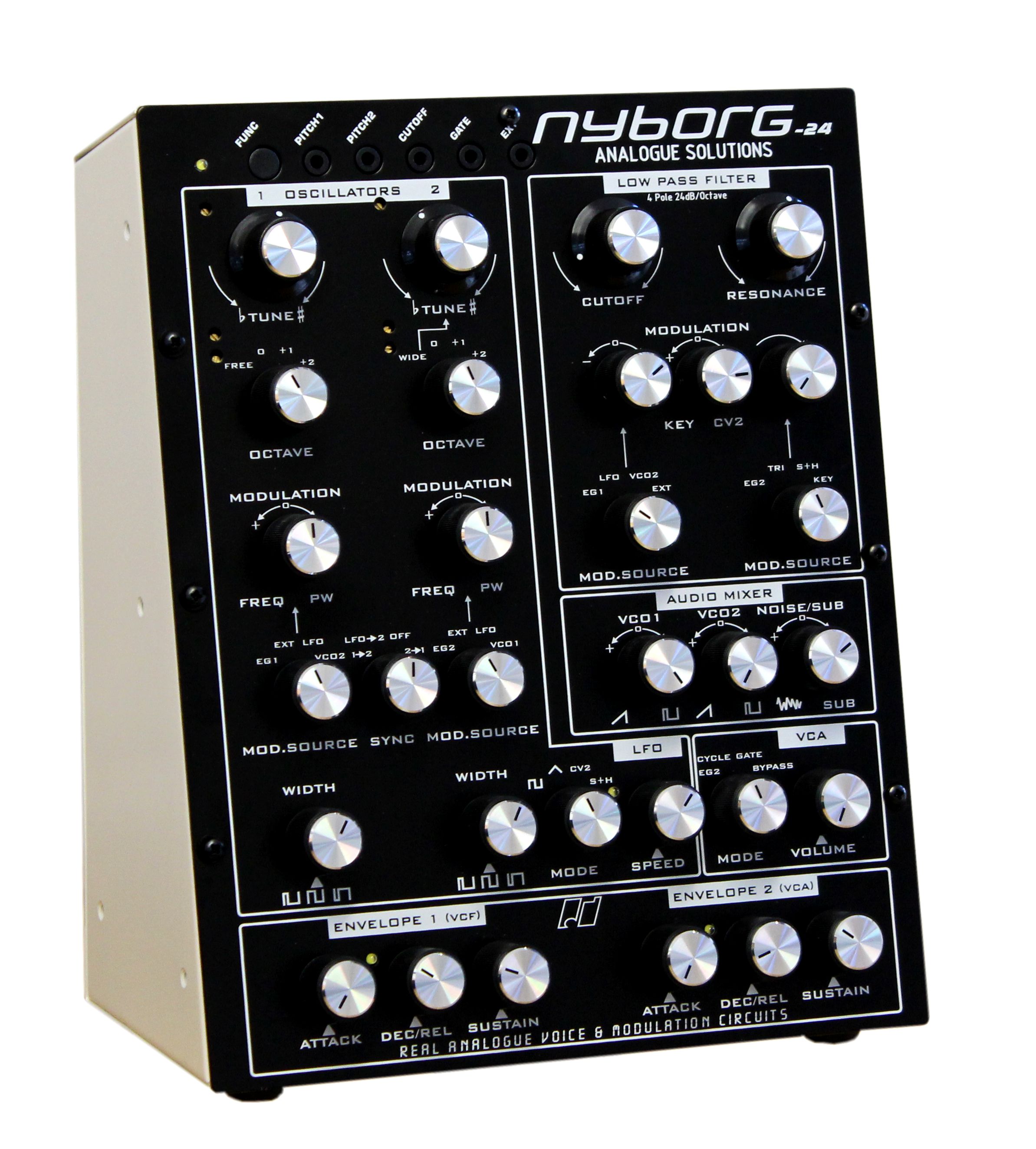

Description	Nyborg is a compact analogue mono synth in a neat, smart, small package. The entire audio patch and all modulation is entirely analogue, using circuits based on vintage 1970s designs. Their circuits are not locked down by CPUs, controls are quantised and read by CPUs. With exception of the MIDI to CV circuit, which by its nature must have a digital element, Nyborg really is analogue. The synth has been designed by a musician who is a big fan of electronic music, and knows how to program a synth, not designed by an engineer. So, the modulation choices and range of sounds they produced have all been carefully thought out and quickly give you those sounds you want: huge bass, synth leads, percussion, effects, modular style sounds. Nyborg-24 has a 4-pole 24 dB type filter.
Brand	Analogue Solutions
Model	Nyborg 24
Device	Synth
Type	Desktop
Engine Type	Analog
Engine	VCO
Voices (max)	1
Multitimbral	1
Oscillators	2
Sub	1
LFO	1 Sample & Hold, Square, Triangle, Clocked
Noise	Y
Engine Detailed	2 VCO Saw Down, Square
Filter (VCF)	1 24dB Slope (4-pole), Band Pass, High Pass, Low Pass, Resonance
Envelope (VCA)	2 ADS
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A
Audio	Mono out, 2 in
Midi	I-T
CV-gate	2x CV and Gate I-O
Extra info	Midi to CV
Produced:	2015

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
