Analogue Solutions | Leipzig |
|

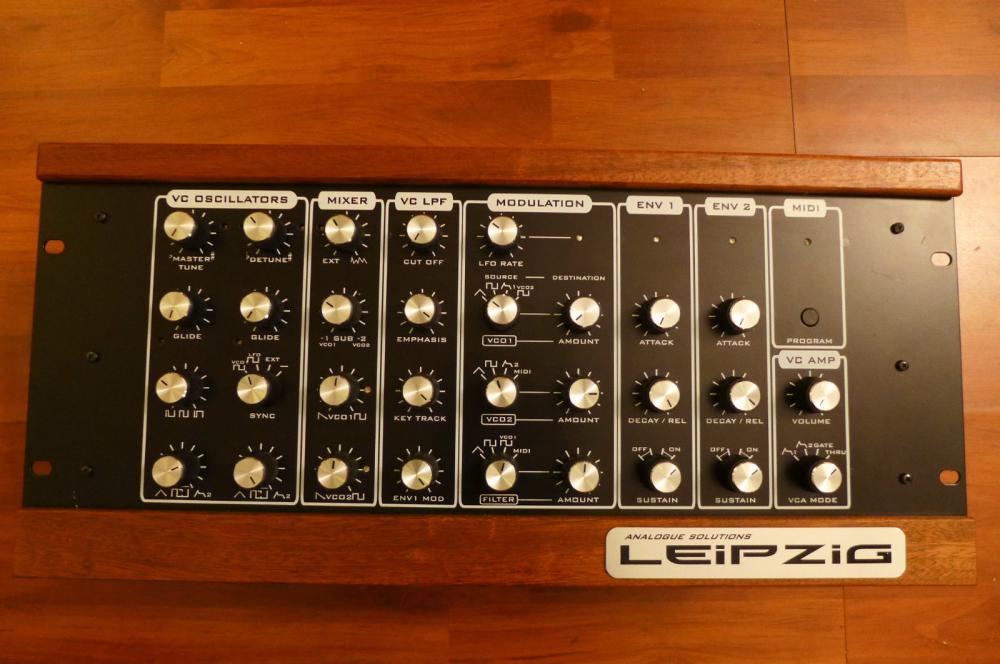

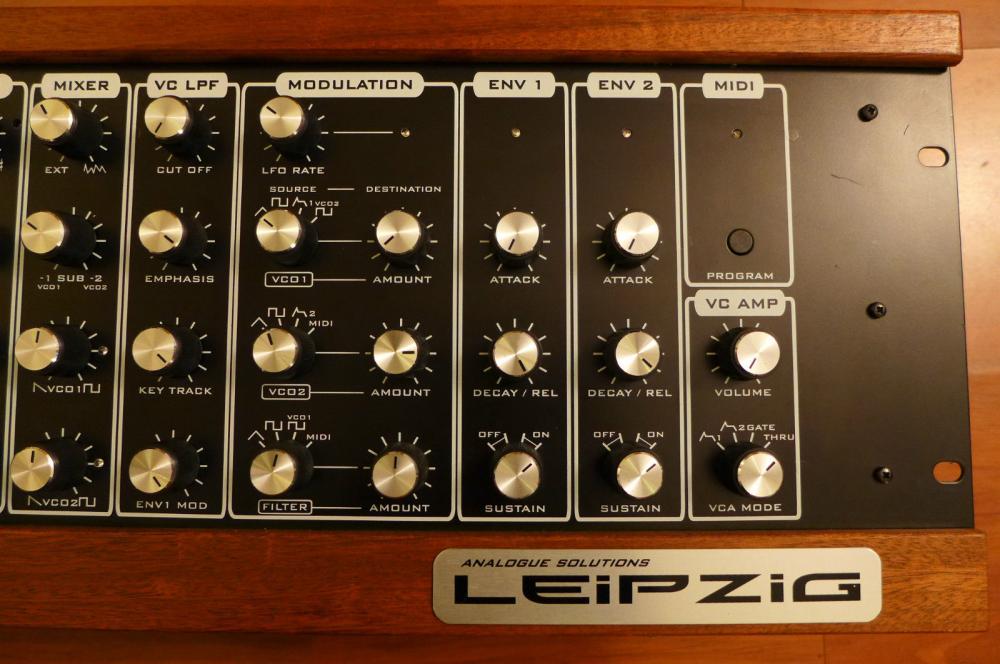

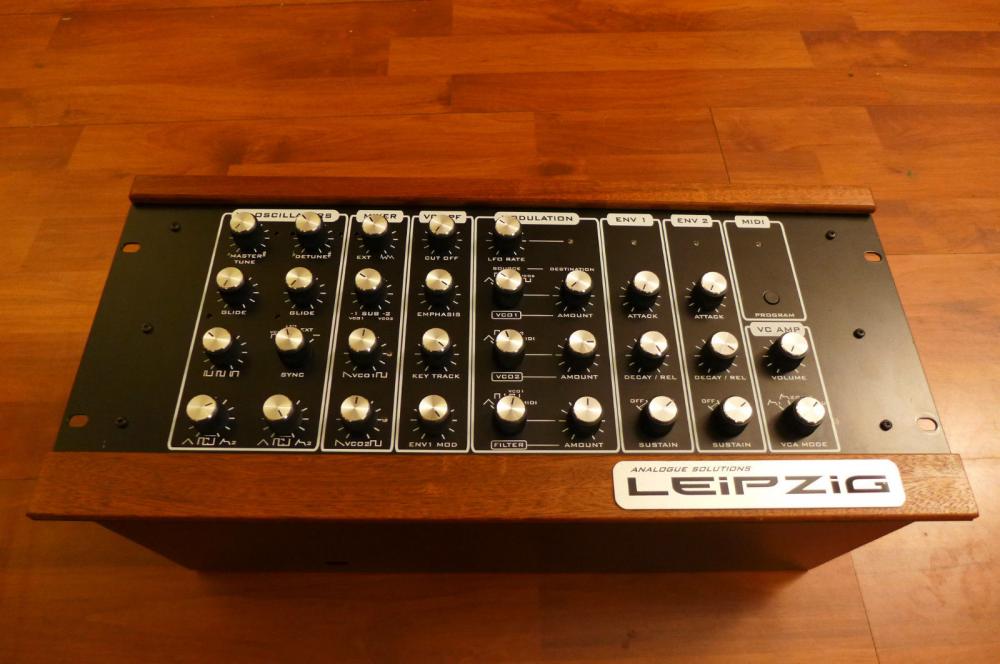

Description | Leipzig is a self contained analogue synthesizer. The voice circuitry is entirely analogue, using all discrete and op-amp components. There is no voice DSP. Leipzig has a similar sound and specification to the classic Moog Prodigy / Rogue synthesizers, but with many improvements such as MIDI and more modulation paths. It combines all the often needed music electronic circuitry to make a music synthesizer in one compact module. Leipzig has an audio input socket, so you can feed external sounds into the on-board analogue filters for analogue processing. |
| Brand | Analogue Solutions |
| Model | Leipzig |
| Device | Synth |
| Type | Rack |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Multitimbral | 1 |
| Oscillators | 2 |
| Sub | 1 |
| LFO | 1 Square, Triangle |
| Noise | Y |
| Engine Detailed | 2 VCO Pulse Variable, Saw Down, White Noise |
| Filter (VCF) | 24dB Slope (4-pole), Low Pass, Resonance |
| Envelope (VCA) | 2 ADSR |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |

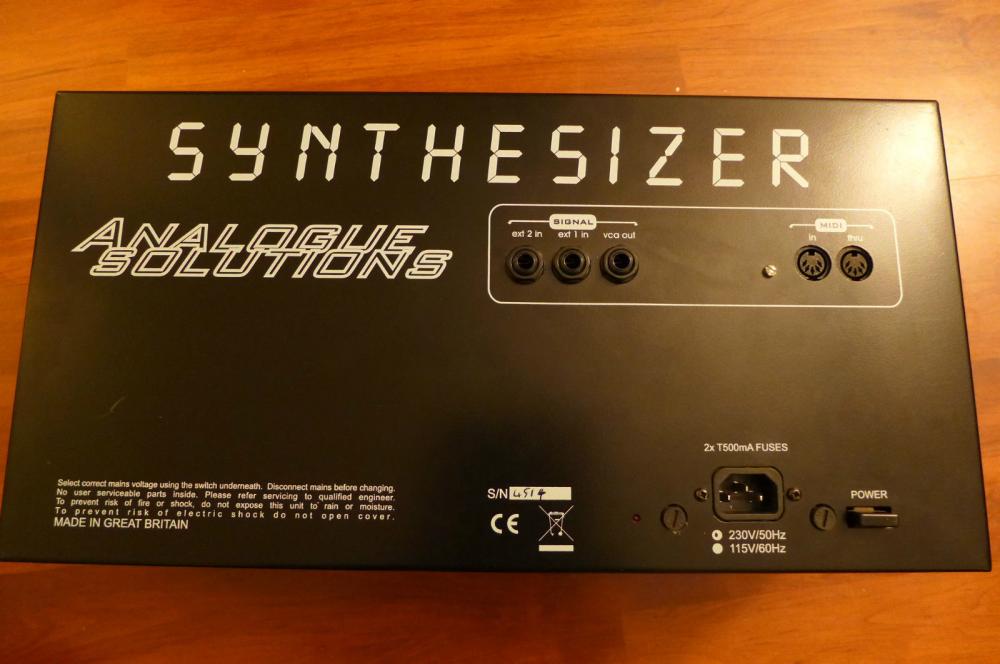

| Audio | Stereo out, 2 in |
| Midi | I-T |
| CV-gate | CV Gate In |
| Extra info | Midi to CV |
| Produced: | 2008 - 2008 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
