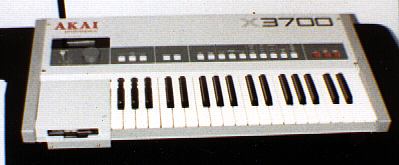

Akai | X3700


The X3700 is a funny little instrument. This is no synth, it's a mini sampler! The X3700 is a compact and lightweight 4-voice keyboard sampler with the same storage and sampler specifications as the bigger and better X7000. The X3700 is a lo-fi, 12-bit sampler with variable sampling rates from 4 to 40kHz. It has a very limited 128KB of RAM for storing only a few seconds worth of samples. Basic sample editing functions including looping, auto-looping, truncating, re-sampling capabilities, tuning and so on are available. The keyboard can be split, but offers no performance controllers and only eighteen push-buttons for editing, looping and triggering the samples. It has a 2.8" disk drive built-in for storing samples and to load samples. It will load your own samples as well as sample libraries for Akai's S-612, S-700 and X7000. Simply put this is an old, simplified, straight forward entry-level sampler.

Engine TypeDigital
Voices (max)4
Sampler12-bit linear, 4kHz - 40kHz variable sampling rates ( seconds)
Envelope (VCA)Release Time Control (Decay)
Memory128K internal RAM (8 seconds at 4kHz); 2.8" Quick Disk (QD) External storage
Key typeKeys
Produced:1986 - 1986
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
