Akai | Tom Cat |
|

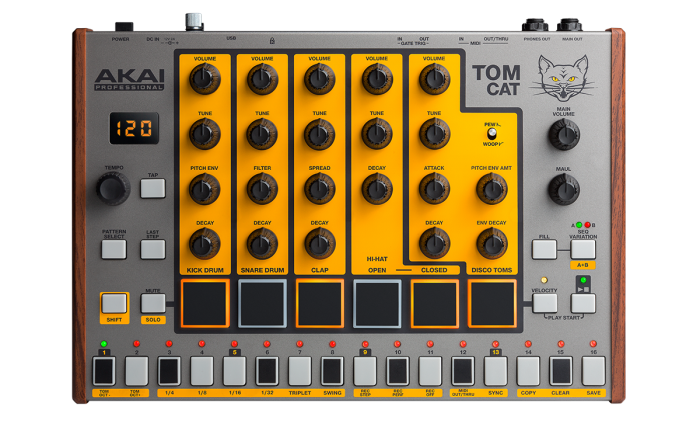

Description | The TOM CAT is an Analog Drum Machine with Built-in Percussion Voices PREY FOR MERCY Tom Cat is an exciting true analog drum machine with five built-in percussion voices, including kick, snare, and clap sounds with chromatically tunable Disco Toms. DIAL YOUR GROWL On-board controls—all continuously variable—let you customize the tuning, amplitude envelopes, and volume of each drum voice separately for precise real-time adjustment, so you can get that perfect sound. Outfitted with six MPC-style pads and a built-in 32-step sequencer, Tom Cat provides an ultra-responsive interface with a classic drum machine layout. Drum patterns can be fine-tuned using the Swing function, Pattern Select, and Tempo Control knob. A custom signal path, activated by its unique “Maul” circuitry, lets you ‘dirty up’ your drums for just the right effect. With Tom Cat we’ve put the sound and design of classic analog drum machines into a compact piece of gear that can be integrated into both modern and vintage rigs. |
| Brand | Akai |
| Model | Tom Cat |
| Device | Drum |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 5 |
| Multitimbral | 5 |
| Oscillators | 1 |
| Engine Detailed | 1 VCO Waveforms: Saw Down, Saw Up, Square. |
| Filter (VCF) | 1 12dB Slope (2-pole), Low Pass, Resonance |
| Envelope (VCA) | 1 Decay |
| Memory | 16 ROM, 16 RAM |
| Keys | 5 |
| Key type | Pads |
| Velocity | Y |
| Aftertouch | N |
| Audio | Stereo out |
| Midi | I-O/T, USB |
| CV-gate | Gate trigger I-O |
| Produced: | 2015 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
