Akai | AX80

Description

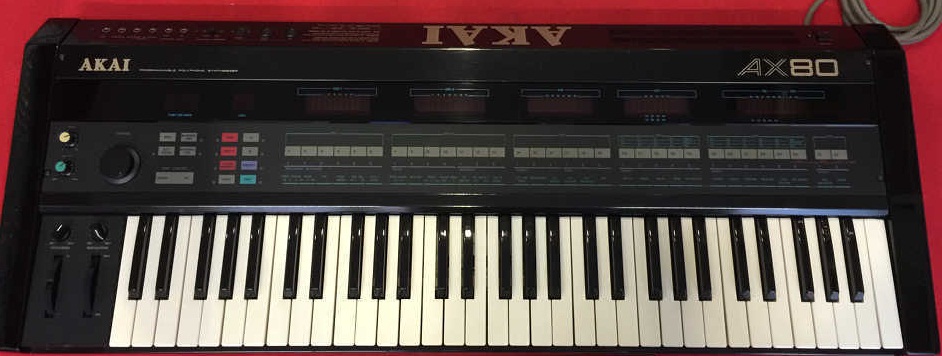

The AX80 has the privilege of being the first pro-keyboard produced by Akai, released in 1984. It's an eight-voice programmable analog synthesizer with a full 61-note keyboard and a series of techno-looking LCD bar-graph displays running across the top of the keyboard. Two analog oscillators per voice plus a sub oscillator provide the basis of its analog sounds that sometimes is described as similar to a Chroma Polaris or Roland Juno 106. Very good bass, brass, synth sounds, and effects are possible. Its strings are considered average at best.

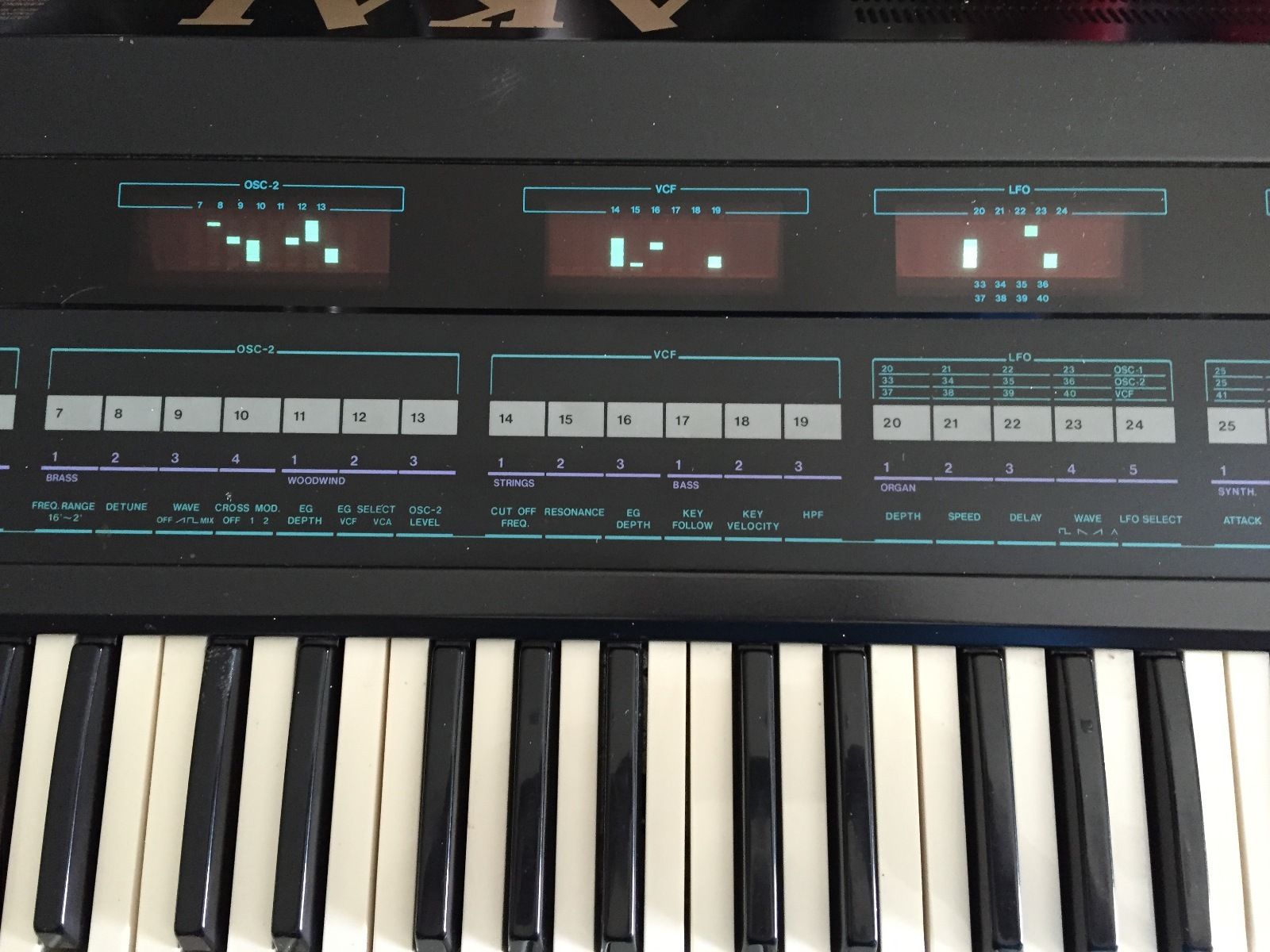

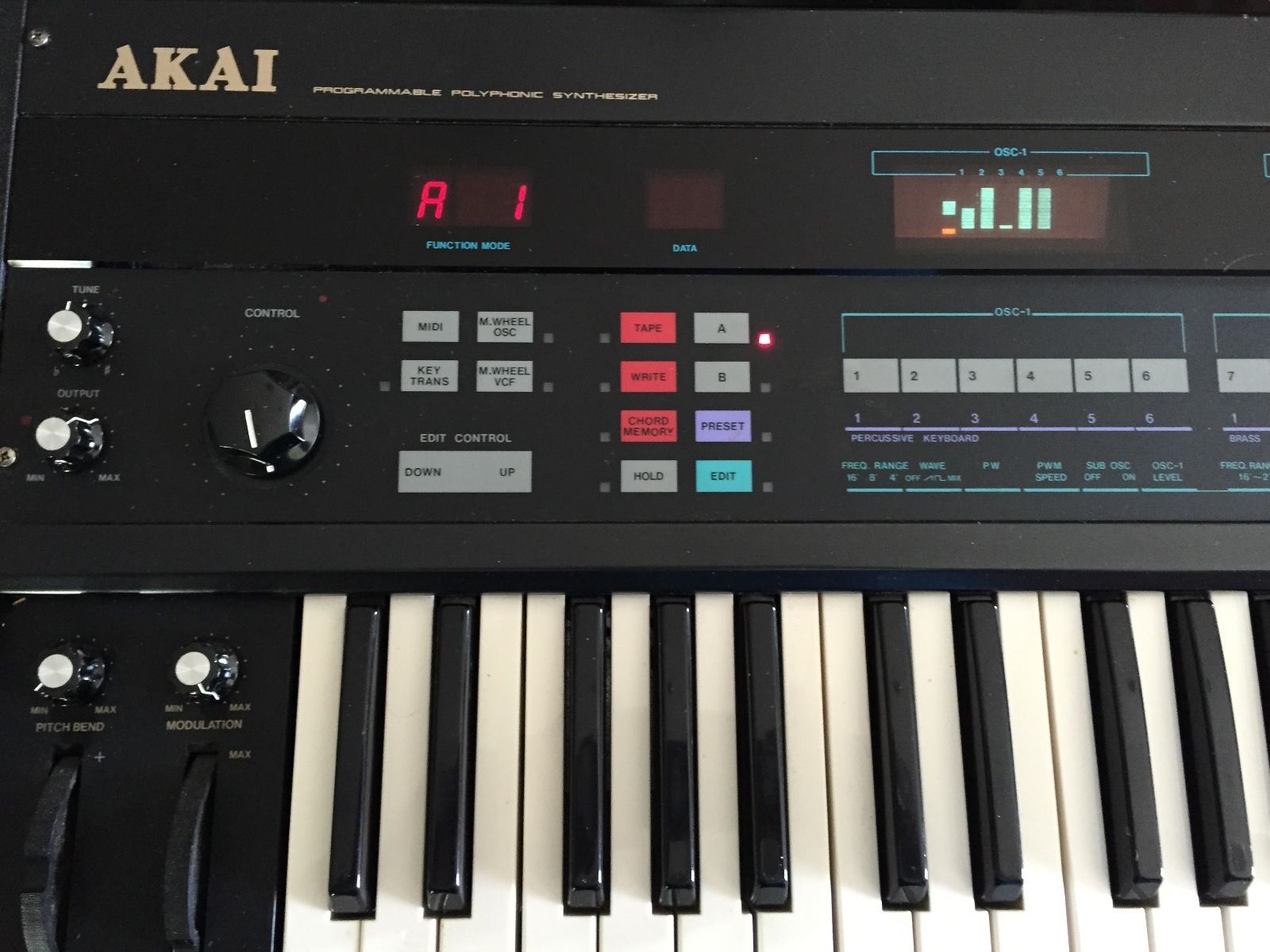

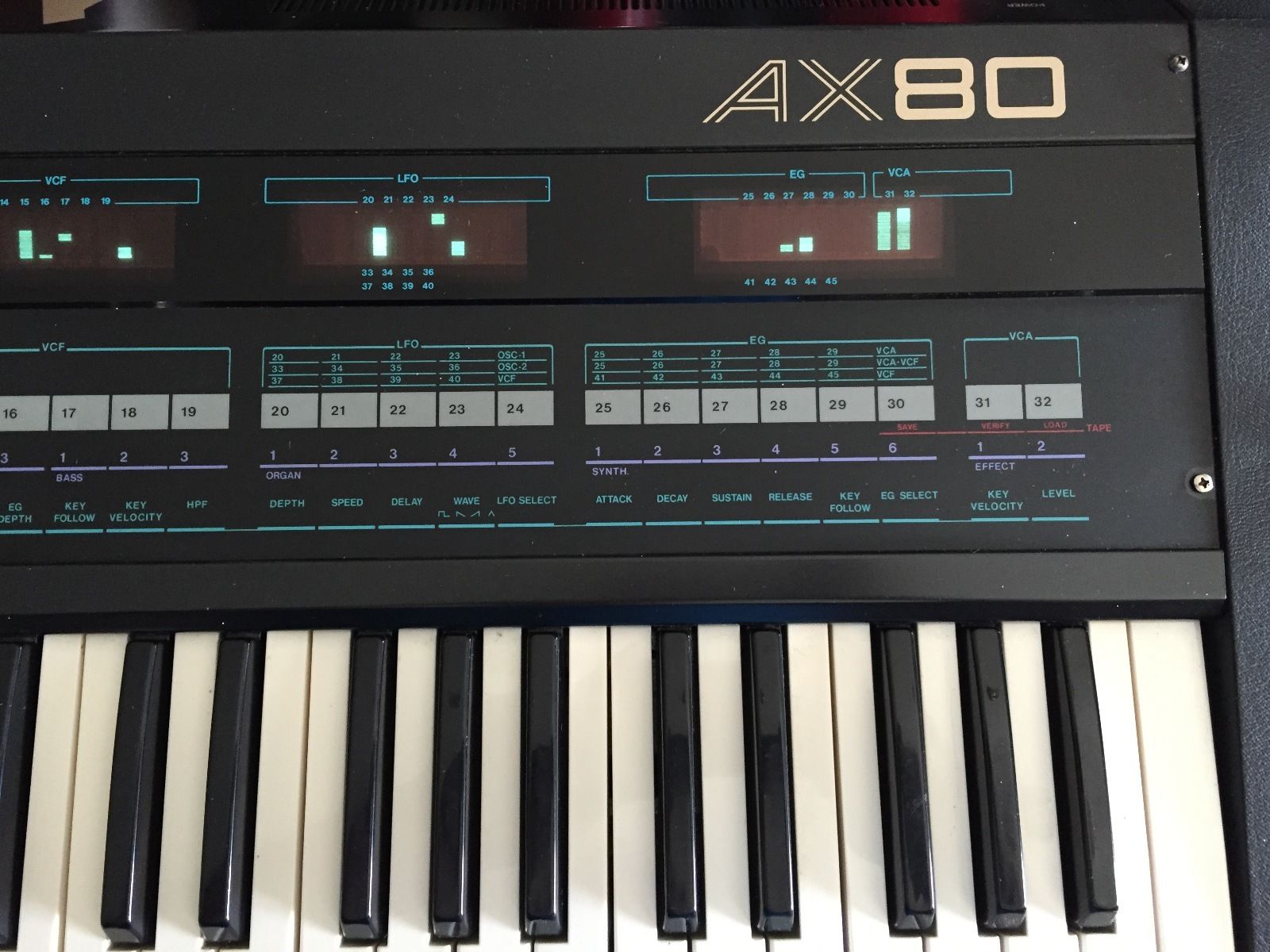

The blue and orange florescent LCD displays use a simple and intuitive bar-graph format to show all its parameters and values. However, with such a nice display, why couldn't they have included dedicated sliders and knobs for each parameter like the AX60. A decent amount of patch storage and nice enough sounds make the AX80 a useable synth to have around, but it probably won't replace your Roland Juno. Other notable features of the AX80 include an angled rear panel for easy cable connections, chord memory, MIDI control, and pitch/mod wheels. It also started to have special inputs for use with Akai's samplers, allowing you to run those samples through the AX60's analog filters and envelopes.

BrandAkai
ModelAX80
DeviceSynth
TypeKeys
Engine TypeAnalog
EngineVCO
Voices (max)8
Oscillators2
SubY
LFO3 LFOs controlling OSC 1, OSC 2, VCF
Engine Detailed2 per voice + Sub Osc. (sawtooth or variable pulse width)
Envelope (VCA)ADSR
Memory96 patches (64 user, 32 preset)
Keys61
Key typeKeys
VelocityY
AftertouchN
MidiI-O
Produced:1984 - 1984
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
