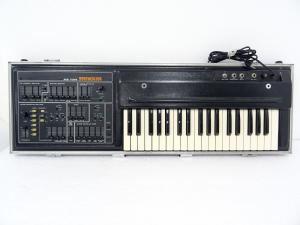

Ace Tone | PS-1000
The Ace Tone PS-1000 is a monophonic synthesizer released in 1975. It looks very similar to the Roland SH-3A but technically it is different under the hood. Its a single VCO with 3 waveforms, VCA, VCF and an LFO.
The unit also offers an external audio input, a modulation input, and noise generator. The synth, external audio, and noise generator can all be mixed together from the control panel with 3 separate sliders. The PS-1000 is housed in a case with removable lid.
|LFO||1 Envelope, Sine, Square, Delay|
|Engine Detailed||1 VCO, Pulse, Pulse Variable, Saw Up, White Noise|
|Filter (VCF)||1 Low Pass, Resonance|
|Envelope (VCA)||1 Attack, Decay, Sustain, Hold, Release, Monophonic|
|Produced:||1975 - 1975|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
