Ace Tone | FR-70

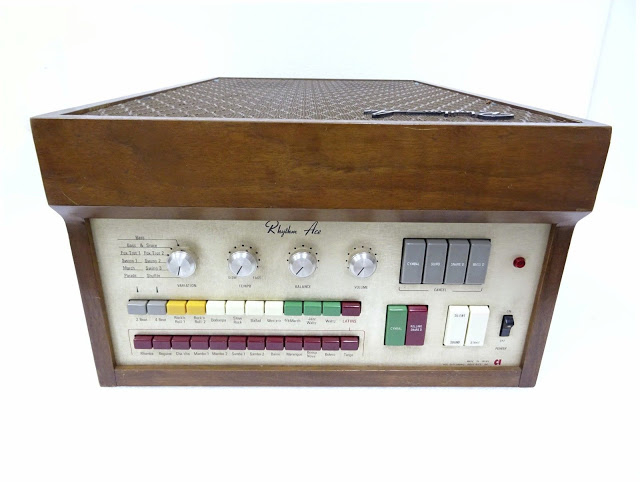

The Ace Tone Rhythm Ace FR-70 is a floor based stand alone drum machine with built in amplifier and speaker like the FR-20. It has 24 preset rhythms and 4 cancel rocker switches that allow for muting the cymbal, guiro, snare and bass drum sounds. Additionally it has two more rocker switches for producing snare rolls and changing the cymbal timbre. 3 knobs completed the front panel for volume, balance and tempo control of the rhythm and sound.

The unit being standalone still has a lot of flexibility for integrating it into a setup. It features an audio input for external instruments and an external instrument for sending it's signal to another amplifier or mixer. It also has a foot switch input for remotely starting and stopping the rhythms.

BrandAce Tone
Engine TypeAnalog
EngineVCO Preset
Voices (max)6
Drums6 sounds
Sequencer33 Presets
Key typeN/A
Produced:1975 - 1975
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
