Abstrakt Instruments | Avalon Bassline

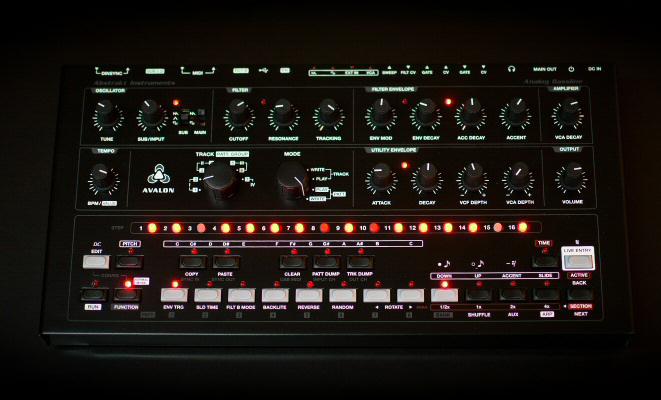

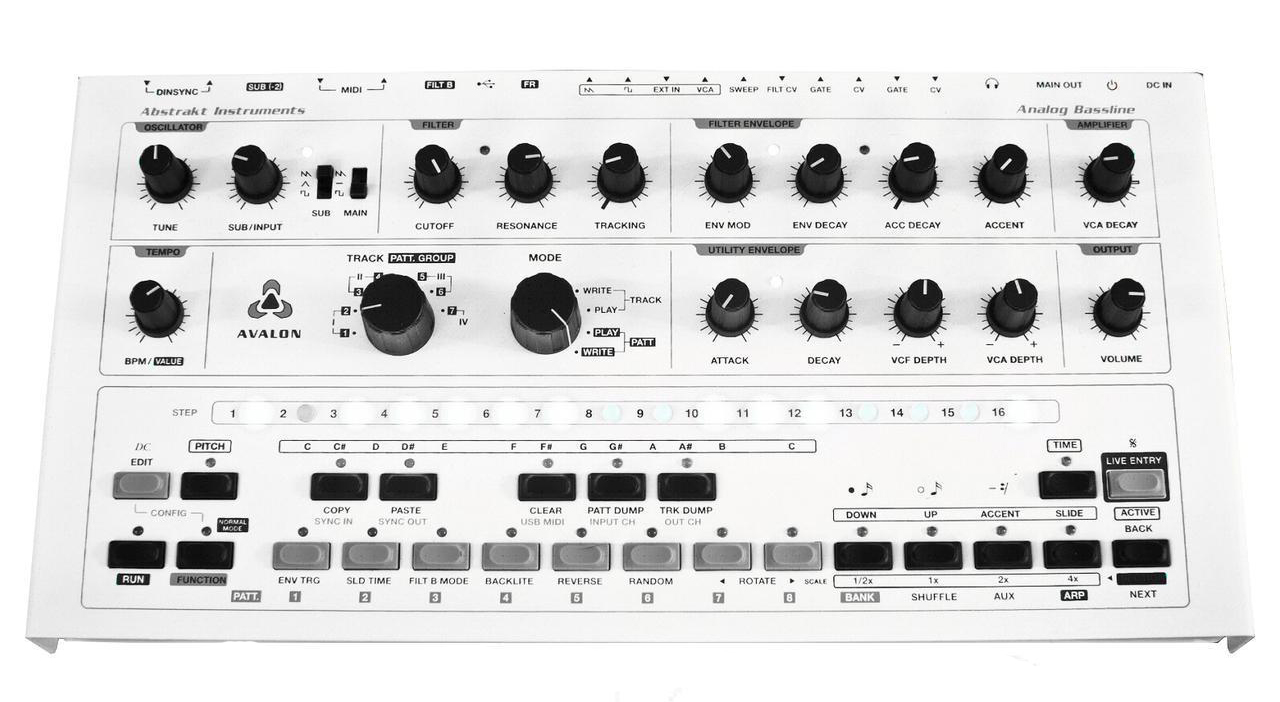

|The avalon bassline is a high quality analog bassline synthesizer and sequencer. The core circuitry of the avalon is based on the revered Roland TB-303 bassline synthesizer, to which a new layer of analog and digital circuitry has been added to position the avalon as the premier bassline synthesizer.
• Core analog and digital circuitry based on TB-303
Incorporates layout and parts from the original bassline, including carbon film resistors, united chemi-con electrolytic capacitors, poly foil film capacitors, original IC's, and sanyo/on semi & mitsubishi transistors.
• Synth Cartridge System™
Compatible with the cartridge system in the form of filter plugin carts.
• Extensive Analog Control
In addition to the six analog controls of the original bassline, the avalon includes controls for sub osc/ext input level, filter tracking, accent decay time, vca decay (normal to full off), utility envelope attack & decay time, utility envelope to vfc and vca modulation depths, frequency response select (normal and full range.
• Extensive Digital Control
In addition to backwards compatibility with the TB-303 pattern write pitch & time modes the avalon incorporates new progamming modes making extensive use of (16) step LED switches. Patterns can be up to 64 steps in length (up to 4 sections x 16 steps) and each pattern can have numerous scales including triplet modes. Real-time editing includes slide time select, utility envelope trigger mode, pattern step skipping, pattern reverse, rotate, random, & shuffle. There is also an arpeggiator that can be performed real-time or recorded directly into a pattern.
• MIDI & DIN Sync
Sync source can be selected as internal, MIDI, or Din Sync, and the avalon sends both MIDI & Din Sync.

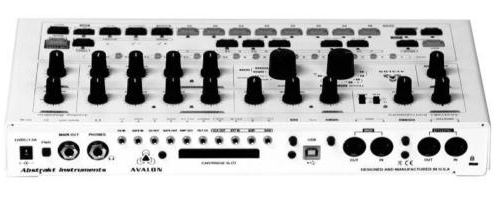

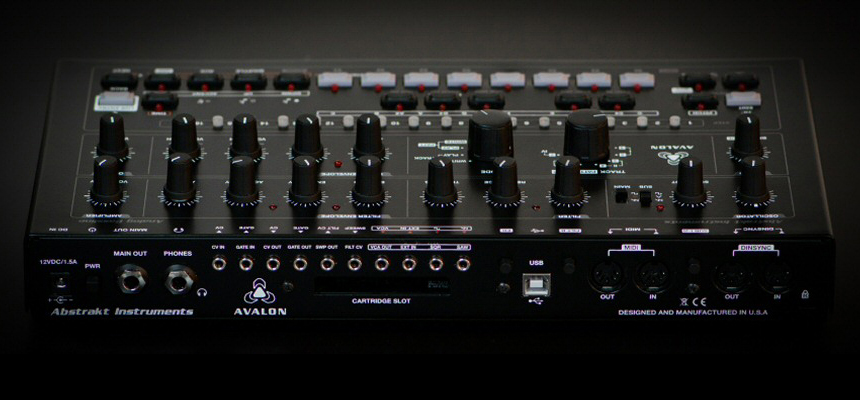

• Audio inputs & Outputs
Includes main & headphone outputs, saw and square outputs (+/-5V), external input, and filter and vca outputs.
• CV Inputs & Outputs
Includes cv & gate input and output, filter cv Input, & accent sweep output.
|Engine Detailed||1 VCO|
|Filter (VCF)||24dB Slope (4-pole), Low Pass|
|Envelope (VCA)||3x ADSR|
|Sequencer||4x 16 step|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
