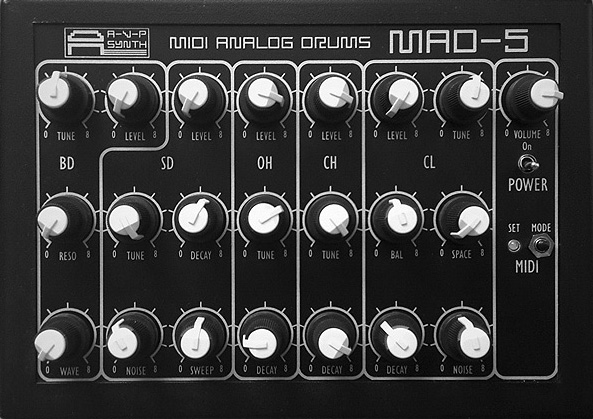

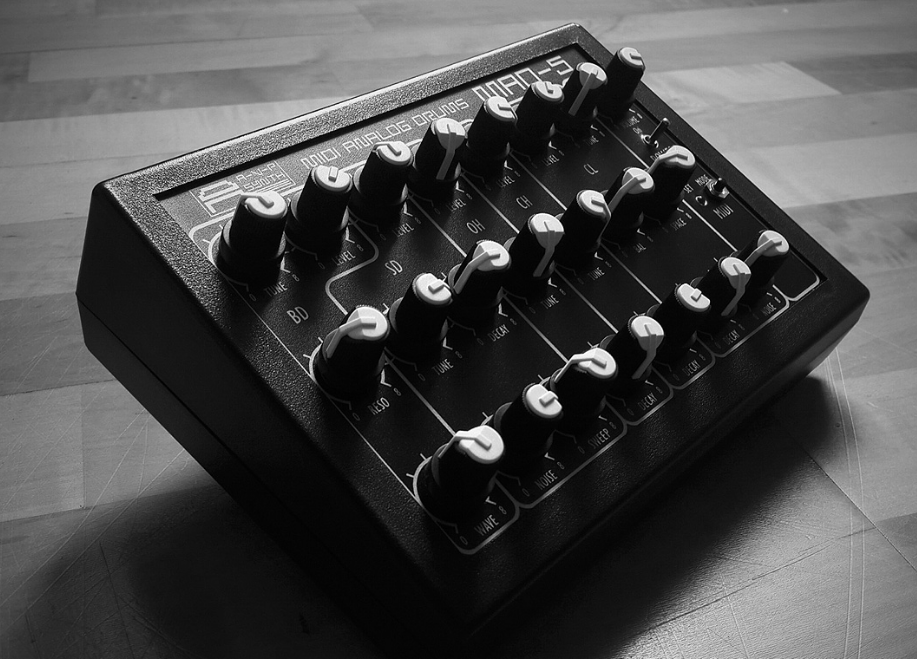

Description | MAD-5 MIDI Analog Drum synthesizer. Is an analog drum synthesizer which is inspired by the sounds of the 20th century soviet drum machines while having the flexibility, MIDI control and compact package of the 21st century. It consists of 22 knobs, 1 switch and 1 button which allows you to manipulate/control the sound and midi. It also has individual outputs for each of the five drum instruments so you can easily rout and process them separately with your external effects especially in a live configuration. The MAD-5 uses all analog synthesis method: five instruments consisting of bass drum, snare drum, open hat, close hat, clap. It also features 4 noise generators for snare drum, open hat, close hat and clap. |
| Brand | AVP |
| Model | MAD-5 |
| Device | Drum |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 5 |
| Multitimbral | 5 |
| Oscillators | 1 |
| Noise | Y |
| Engine Detailed | 1 Sine, Square, White Noise of which the 5 presets are build |
| Filter (VCF) | Cut-off, resonance |
| Drums | Base, Snare, Clap, Open and Closed Hihat. |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |

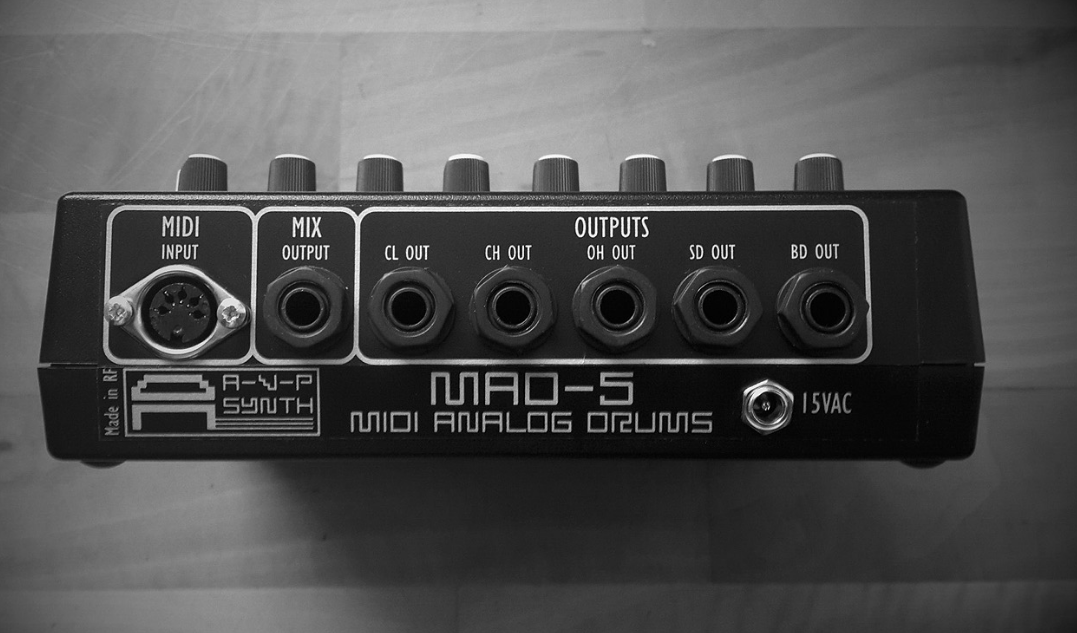

| Audio | Stereo out, individual mono out |
| Midi | I |
|
Produced: | 2016 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
