ARP | Axxe |
|

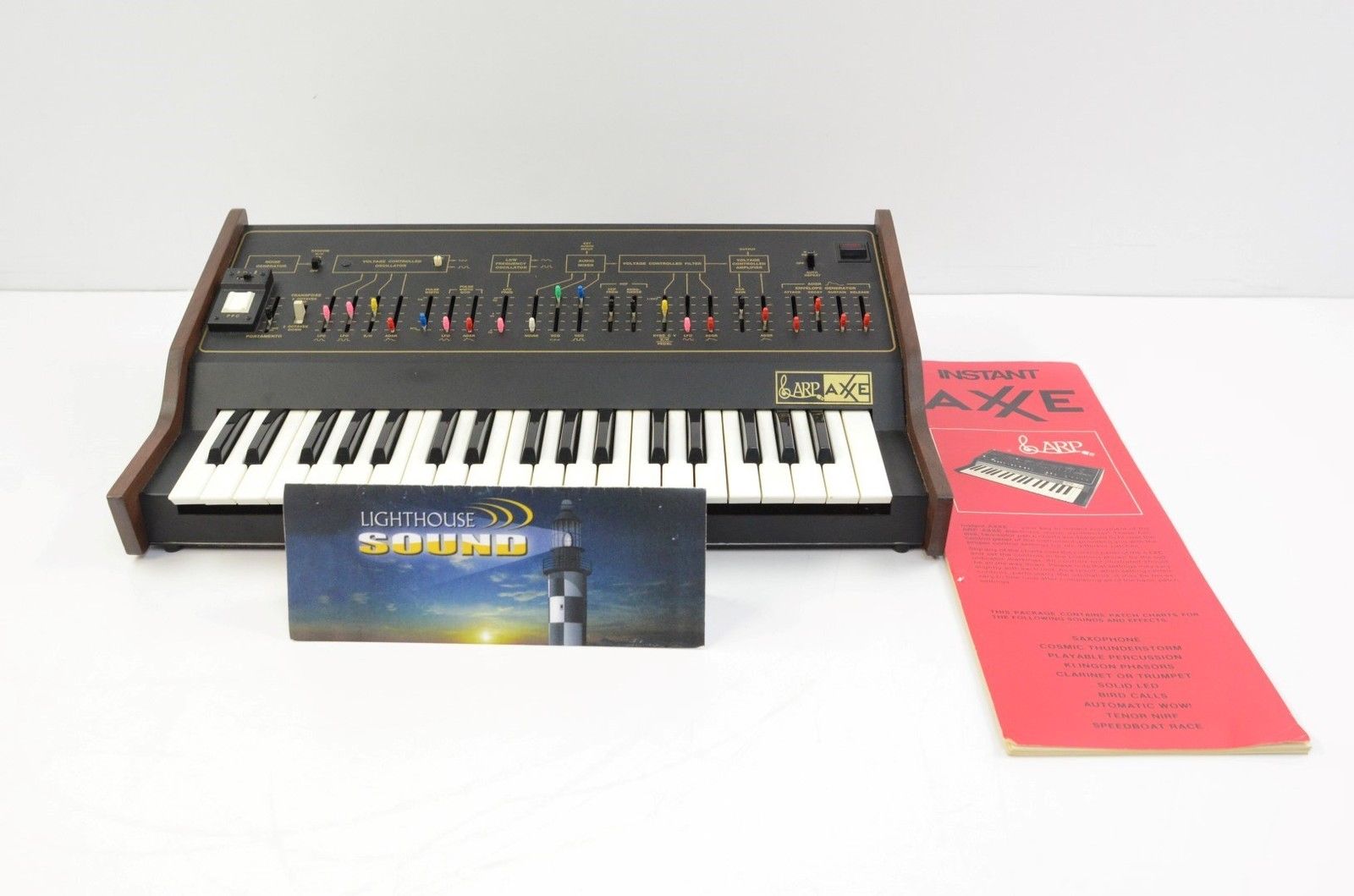

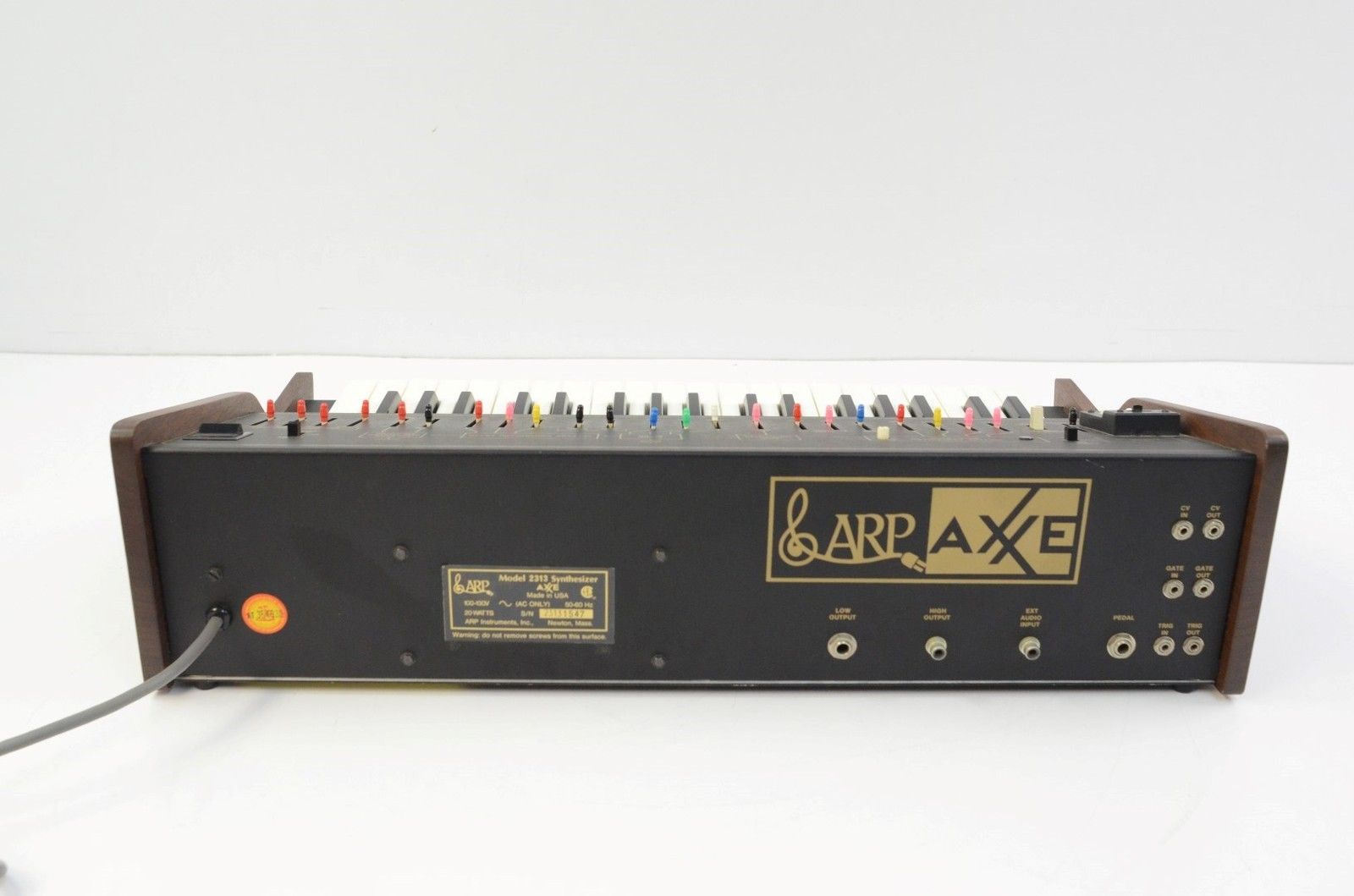

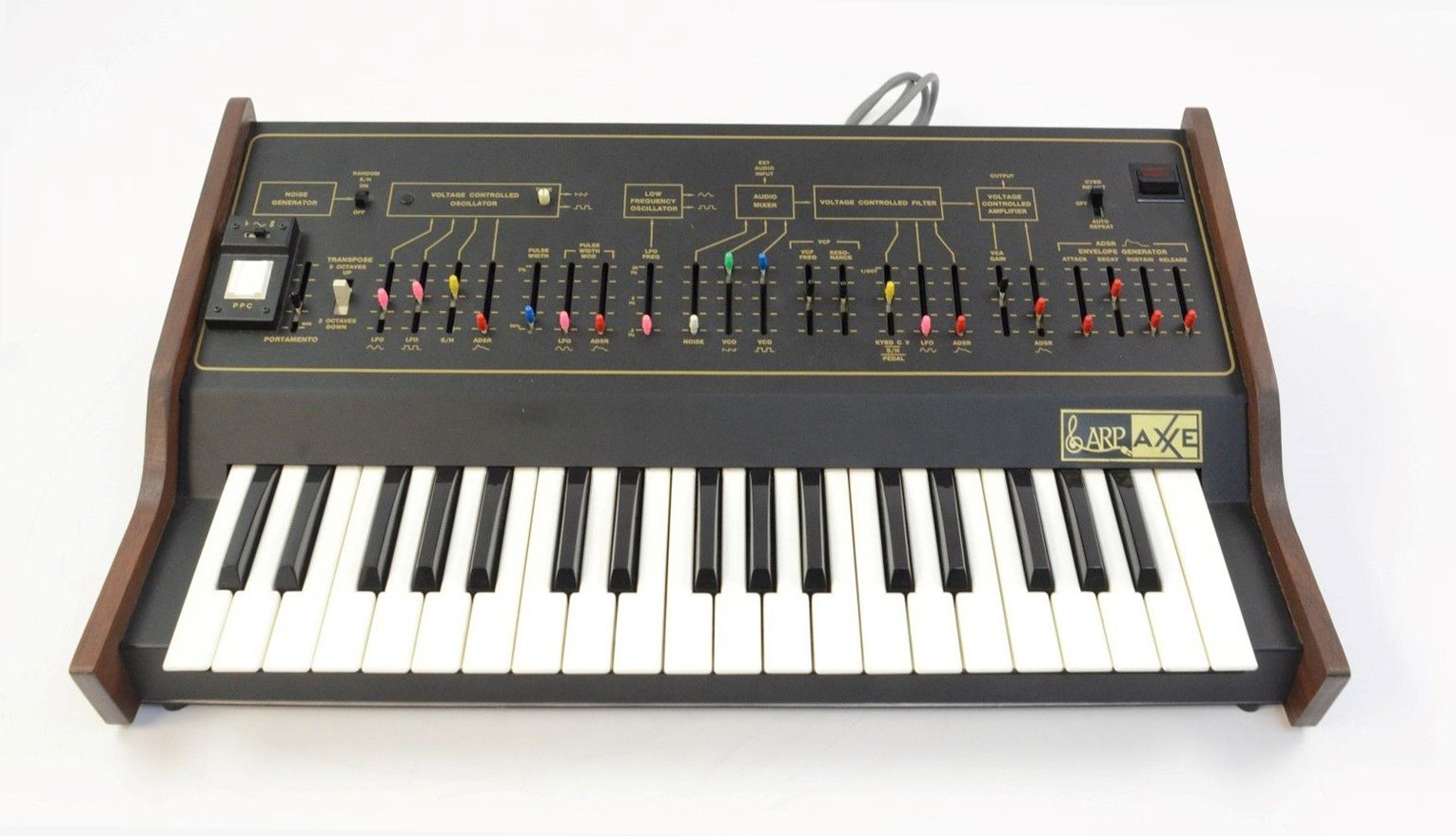

Description | The Axxe is basically a budget-proof version of the popular Odyssey. With just one oscillator (compared with two in the Odyssey), the Axxe certainly has a thinner sound but it is still that uniquely angular and powerful analog ARP sound. It's not too exciting, but it is simple and straight forward. A perfect first vintage analog for any musician that will still find plenty of use among more seasoned synth players for quick analog bass lines, lead sounds and synth FX. It has no form of memory storage and external control comes via CV/Gate only. It came with a 155 page text book, overlay sheets, interface charts and a book of 50 patches. Like most ARP synths, the Axxe also underwent a makeover. The original models featured a black and gold design which looks similar to the the Odyssey II (aka 2810), with later models switching to the black and orange design with PPC pitch bend buttons. |
| Brand | ARP |
| Model | Axxe |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 1 |
| LFO | One LFO w/ sine mod to VCF or PW, sine or square mod to OSC pitch |
| Engine Detailed | 1 VCO |
| Filter (VCF) | Model 4075 4-pole, Low Pass Filter w/ resonance, cutoff, key tracking |
| Envelope (VCA) | One ADSR envelope mod to PW, VCF cutoff or VCA (+ sample&hold of pitch or VCF) |
| Keys | 37 |
| Key type | Keys |
| Velocity | No |
| Aftertouch | No |
| CV-gate | CV/GATE |
| Extra info | 2 Versions |
| Produced: | 1975 - 1981 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
