360 systems | Digital Keyboard

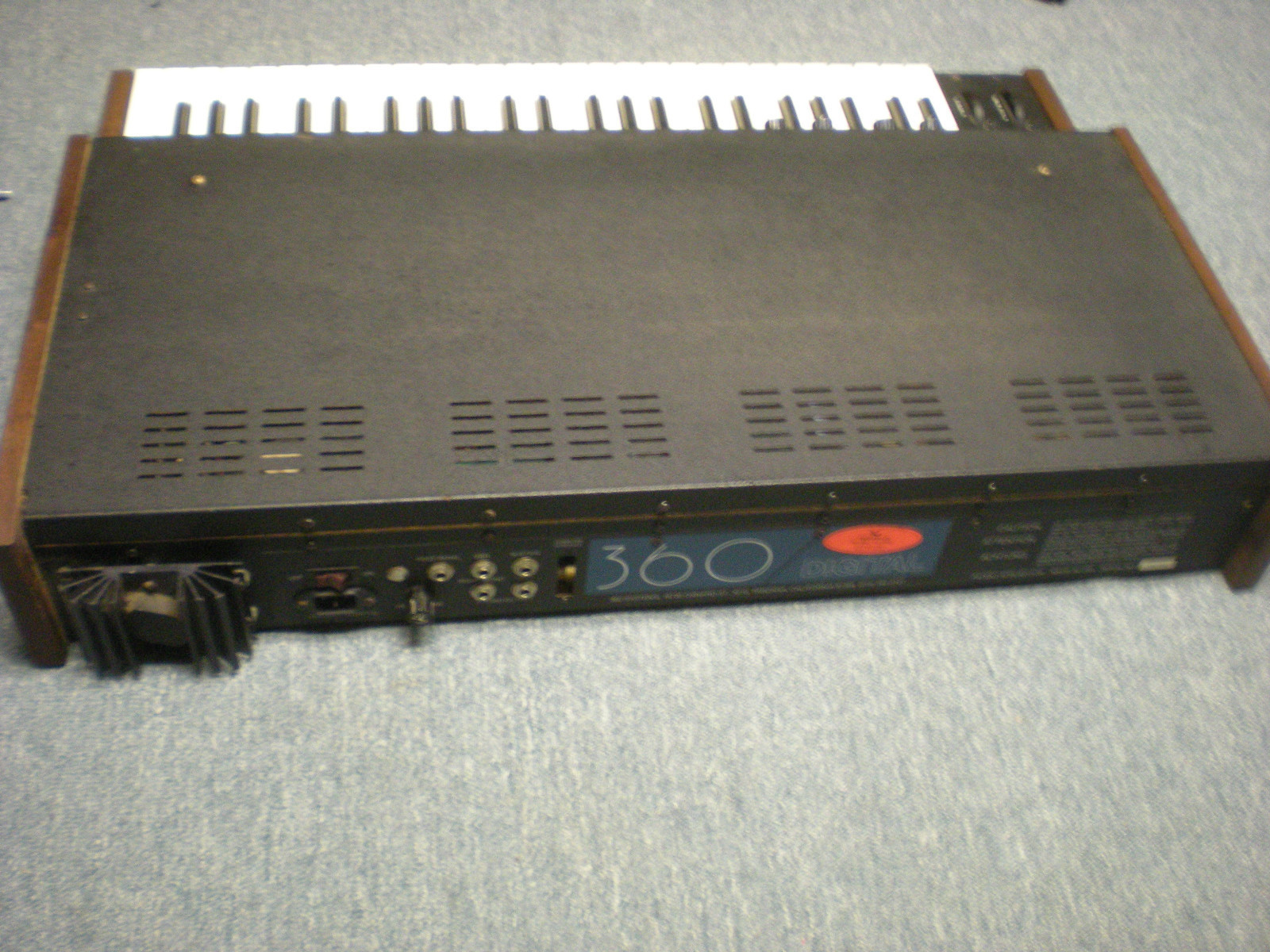

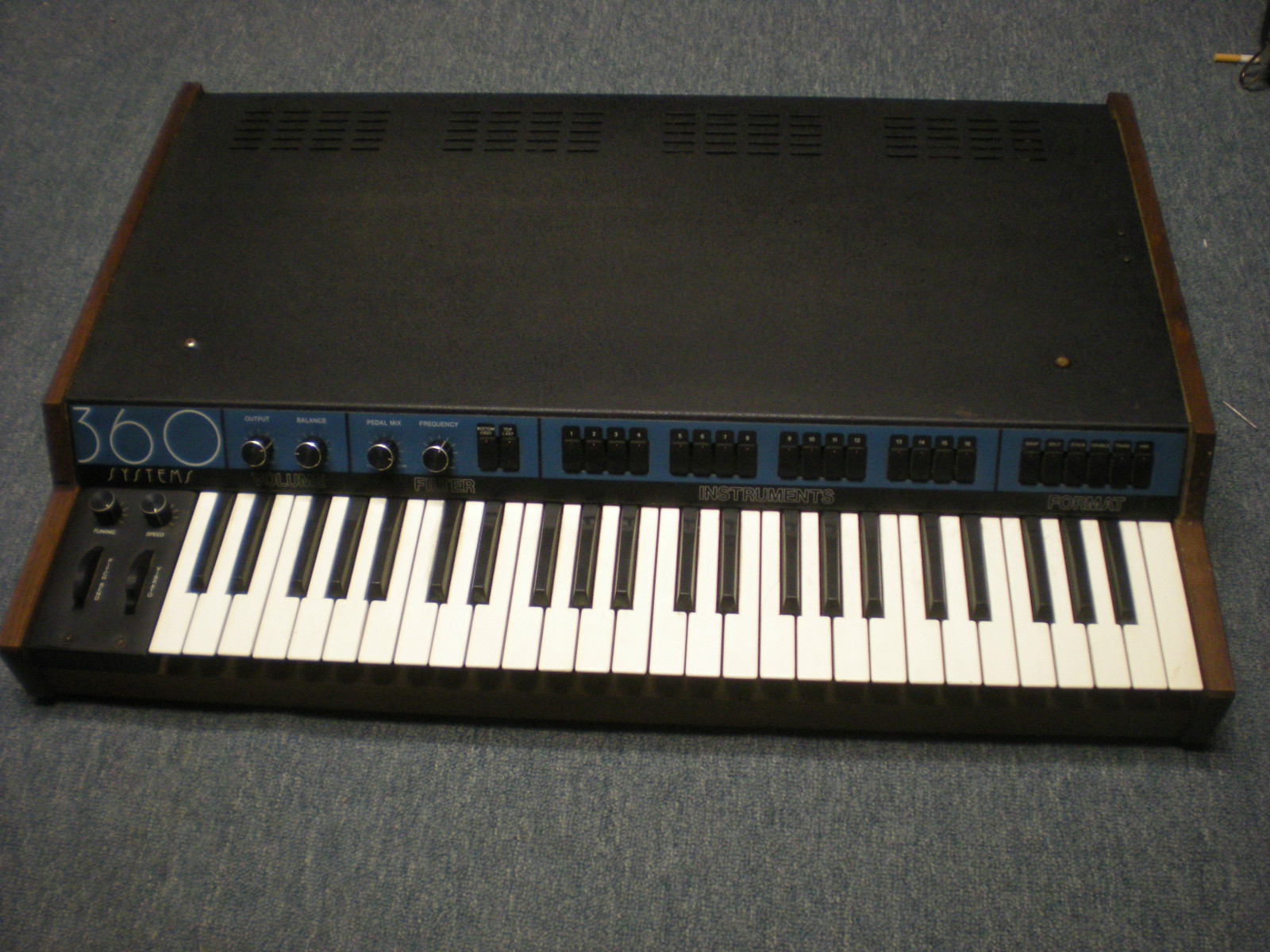

Description

The 360 Systems Digital Keyboard was used in recording studios in Los Angeles and NYC in the mid 80s and can be found in many popular recordings. Besides the Mellotron strings and flutes, the unit has Bosendorfer Grand piano, vibraphone, two different guitars, fretless bass, slap bass, various brass and woodwinds like trumpet, saxophone, bassoon, clarinet and other original stock sounds. It also includes the rare 16 piece string orchestra chip that cost $860 itself. Each sampled sound has its own integrated circuit chip that plugs into ziff sockets on one of the 3 internal PC boards. The keyboard can be split so you can have two sounds on different keys at the same time, one on the left/right with an adjustable threshold. You can also combine two sounds at the same time on all the keys in unison. There is a double effect that makes the unit much more sensitive. The keyboard is polyphonic.

Less than two hundred 360 Systems Keyboards were produced total between 1982 and 1984. It is known as the world's first synthesizer to feature sampled sounds on IC chips. Its' sounds are comparable to that of a Mellotron, Chamberlin or Orchestron but has higher fidelity and the 360 has more parameters and options.

Brand360 systems
ModelDigital Keyboard
DeviceSynth
TypeKeys
Engine TypeDigital
EngineSample
Voices (max)8
Multitimbral2
Oscillators1
Engine DetailedSampled ROM, each sound on it's own chip.
Filter (VCF)1
Memory32 ROM, 1 RAM
Keys49
Key typeKeys
VelocityY
AftertouchN
AudioStereo out
Extra infoAbout 200 made
Produced:1982 - 1984
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
